CHP-080 Series

Catalog

SWITCH PIANO DIP SPST 0.1A 6V

Part	Electrical Life	Length	Length	Body Material	Mounting Type	Actuator Type	Contact Finish	Circuit	Current Rating (Amps)	Termination Style	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Pitch	Pitch	Pitch

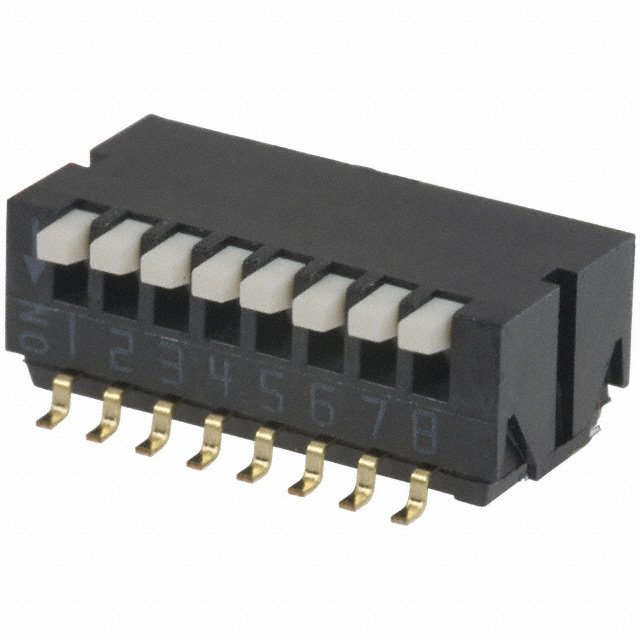

Nidec Components Corporation CHP-080B	1000 Cycles	12.19 mm	0.48 in	Polyphenylene Sulfide (PPS)	Right Angle Surface Mount	Piano	Gold	SPST	100 mA	Gull Wing	4.6 mm	0.181 in	8	Copper Alloy	6 V	85 °C	-40 C	Raised	0.05 "	1.27 mm	Half

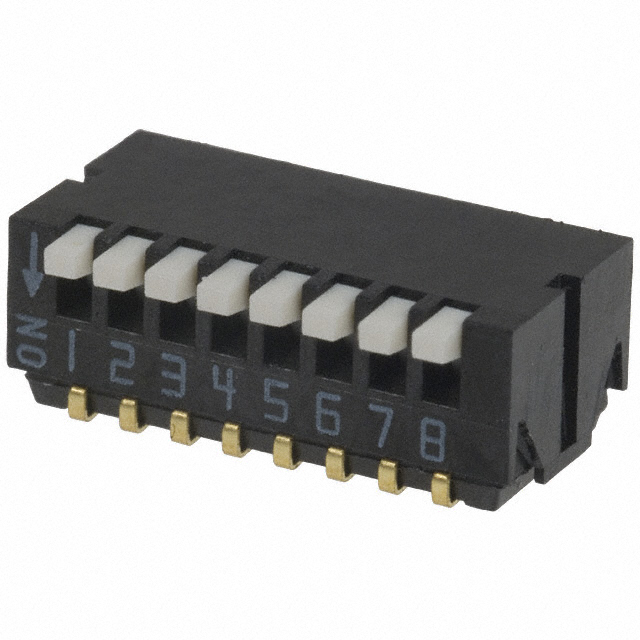

Nidec Components Corporation CHP-080TA	1000 Cycles	12.19 mm	0.48 in	Polyphenylene Sulfide (PPS)	Right Angle Surface Mount	Piano	Gold	SPST	100 mA	J Lead	4.6 mm	0.181 in	8	Copper Alloy	6 V	85 °C	-40 C	Raised	0.05 "	1.27 mm	Half
Nidec Components Corporation CHP-080TB	1000 Cycles	12.19 mm	0.48 in	Polyphenylene Sulfide (PPS)	Right Angle Surface Mount	Piano	Gold	SPST	100 mA	Gull Wing	4.6 mm	0.181 in	8	Copper Alloy	6 V	85 °C	-40 C	Raised	0.05 "	1.27 mm	Half
