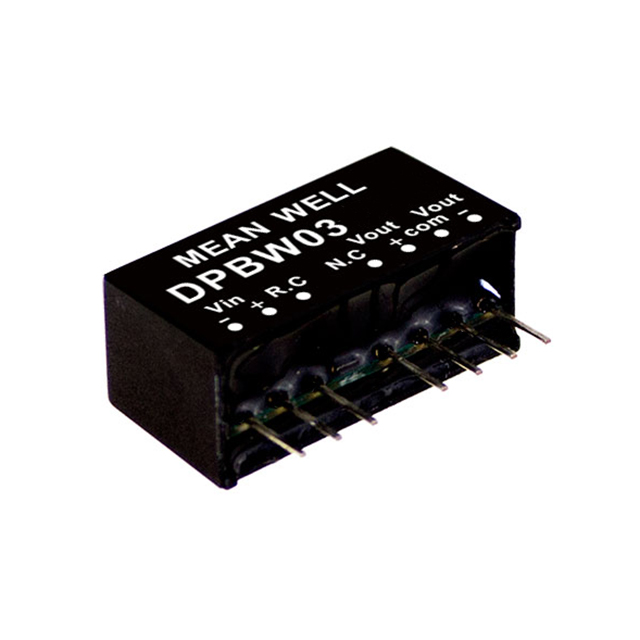

DPBW03 Series

Catalog

DC DC CONVERTER +/-12V 3W

Part	Voltage - Output 2	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Efficiency	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Output 1	Applications	Features	Number of Outputs	Voltage - Isolation	Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
MEAN WELL USA Inc. DPBW03F-12	-12 V	36 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	3 W	83 %	125 mA	9 V	12 V	ITE (Commercial)	OCP Remote On/Off SCP UVLO	2	1.5 kV	Isolated Module	8-SIP Module 7 Leads	-40 °C	85 °C
MEAN WELL USA Inc. DPBW03F-15	-15 V	36 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	3 W	81 %		9 V	15 V	ITE (Commercial)	OCP Remote On/Off SCP UVLO	2	1.5 kV	Isolated Module	8-SIP Module 7 Leads	-40 °C	85 °C	100 mA	100 mA
MEAN WELL USA Inc. DPBW03G-15	-15 V	75 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	3 W	83 %		18 V	15 V	ITE (Commercial)	OCP Remote On/Off SCP UVLO	2	1.5 kV	Isolated Module	8-SIP Module 7 Leads	-40 °C	85 °C	100 mA	100 mA
MEAN WELL USA Inc. DPBW03F-05	-5 V	36 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	3 W	81 %		9 V	5 V	ITE (Commercial)	OCP Remote On/Off SCP UVLO	2	1.5 kV	Isolated Module	8-SIP Module 7 Leads	-40 °C	85 °C			0.3 A
