AGF800 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
800W, 36 - 75VIN, SINGLE, 48V@16.7A, 93.5% EFF, FULL BRICK ALUMINUM SUBSTRATE, POSITIVE LOGIC/PIN LENGTH:3.8MM
| Part | Applications | Power (Watts) | Voltage - Output 1 | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Isolation | Mounting Type | Voltage - Input (Min) [Min] | Efficiency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

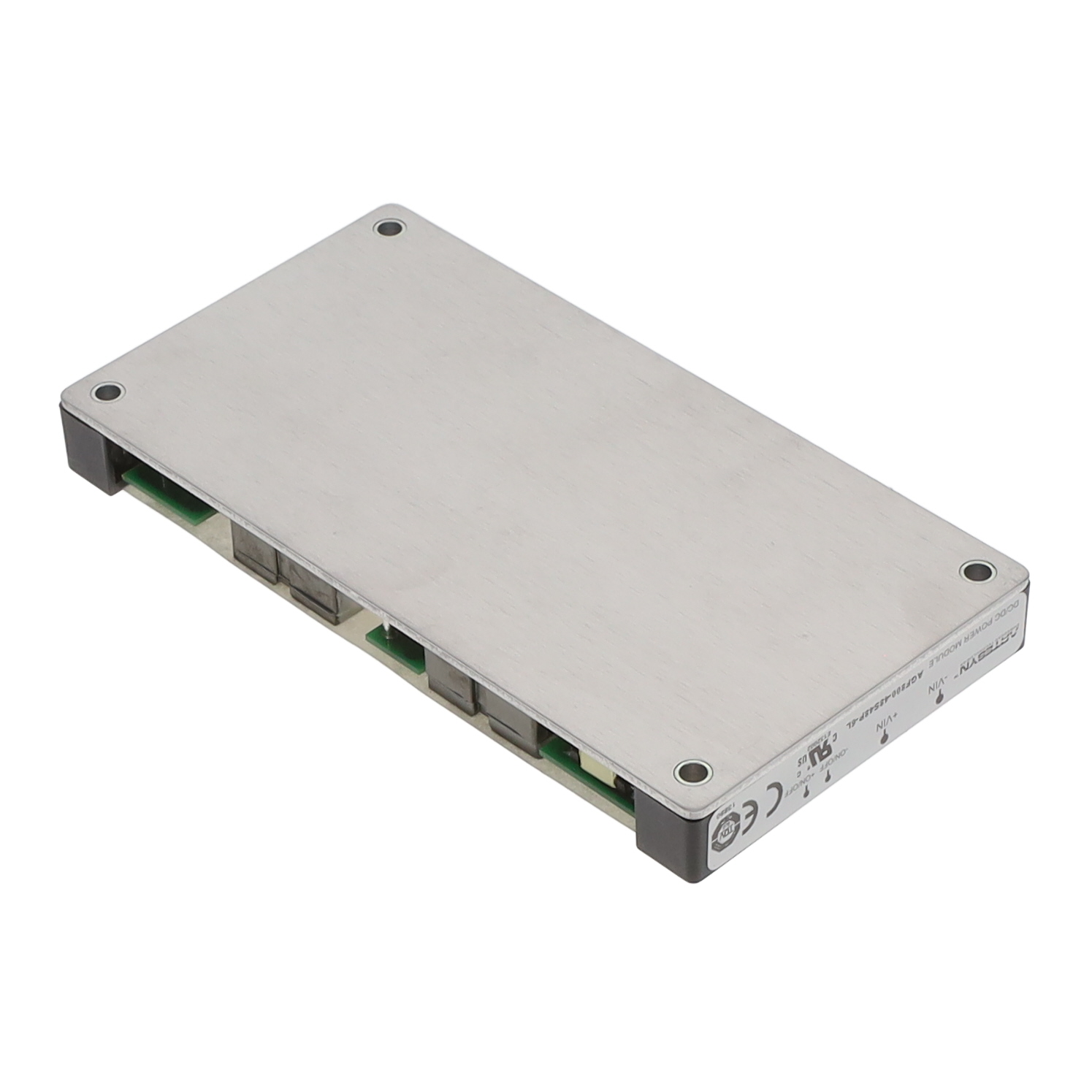

 ARTESYN / Advanced Energy | ITE (Commercial) | 800 W | 48 V | OTP OVP | 85 °C | -40 C | 1 | 75 V | 16.7 A | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Isolated Module | 1.5 kV | Through Hole | 36 V | 94.5 % | 14-DIP Module Full Brick |

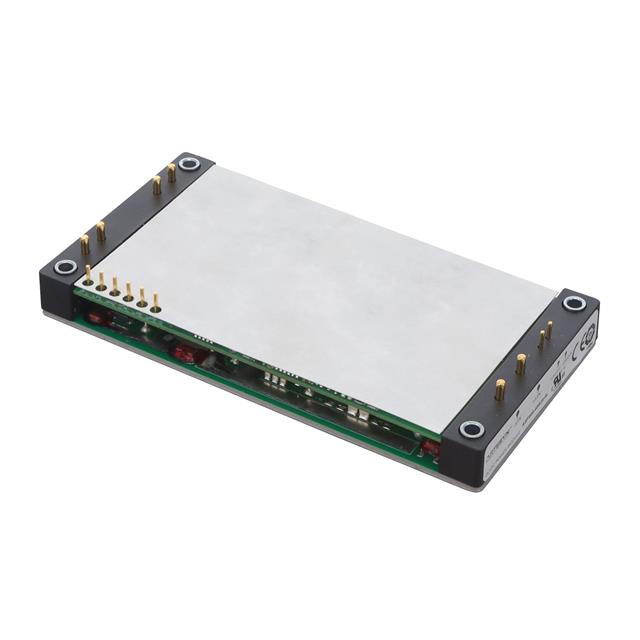

 ARTESYN / Advanced Energy | ITE (Commercial) | 800 W | 28 V | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | 1 | 75 V | 28.6 A | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Isolated Module | 1.5 kV | Through Hole | 36 V | 93 % | 14-DIP Module Full Brick |
