787246 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

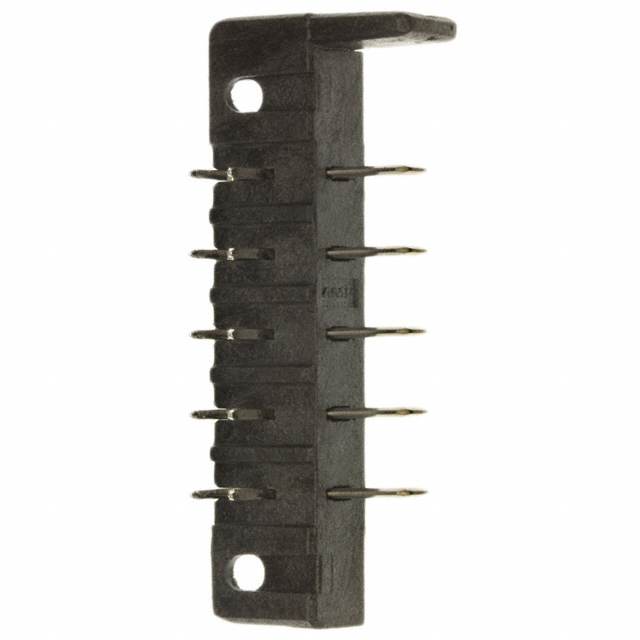

CONN HDR 5POS 5.00MM R/A SLDR
| Part | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Fastening Type | Material - Insulation | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Material | Connector Type | Mounting Type | Features | Number of Positions | Number of Rows | Termination | Pitch | Pitch | Connector Style | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10.8 V | 1.9 µm | 74.8 µin | Push-Pull | Liquid Crystal Polymer (LCP) | Nickel | -30 ░C | 70 °C | 7 A | Brass | Header Male Blades | Right Angle Through Hole | Flange Left Hand Keying | 5 | 1 | Solder | 0.197 in | 5 mm | 10.8V Battery | Black |
