726-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 38POS 0.125

Part	Termination Rows	Material - Insulation	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Gender	Mounting Type	Color	Card Type	Number of Positions/Bay/Row [custom]	Read Out	Pitch	Pitch	Termination	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row
EDAC Inc. 726-038-545-101	1	Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám	1	-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Single Edge	38	Single	3.18 mm	0.125 in	Press-Fit Wire Wrap

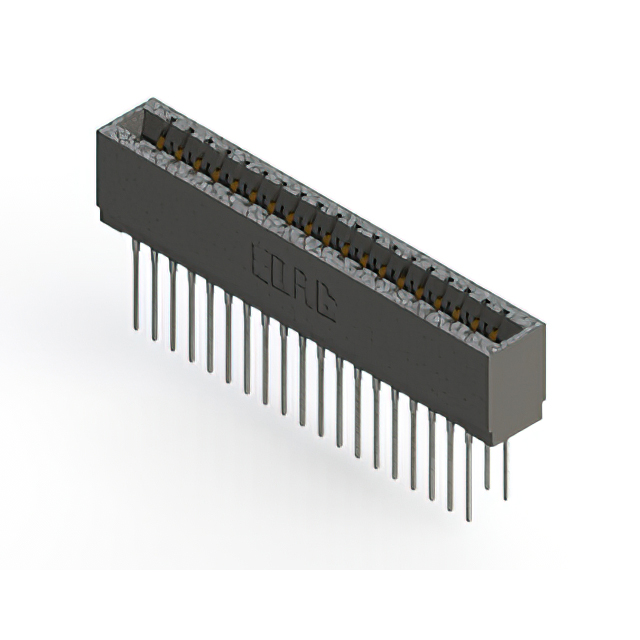

EDAC Inc. 726-038-540-201		Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám		-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Dual Edge		Dual	3.18 mm	0.125 in	Press-Fit Wire Wrap	2	2	19
EDAC Inc. 726-038-527-101	1	Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám	1	-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Single Edge	38	Single	3.18 mm	0.125 in	Press-Fit
EDAC Inc. 726-038-553-101	1	Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám	1	-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Single Edge	38	Single	3.18 mm	0.125 in	Press-Fit Wire Wrap

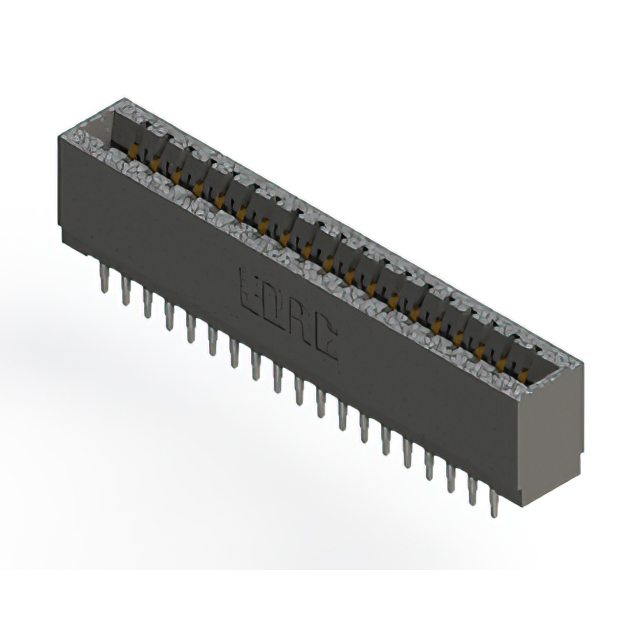

EDAC Inc. 726-038-520-201		Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám		-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Dual Edge		Dual	3.18 mm	0.125 in	Press-Fit	2	2	19
EDAC Inc. 726-038-525-101	1	Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám	1	-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Single Edge	38	Single	3.18 mm	0.125 in	Press-Fit
EDAC Inc. 726-038-527-201		Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám		-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Dual Edge		Dual	3.18 mm	0.125 in	Press-Fit	2	2	19

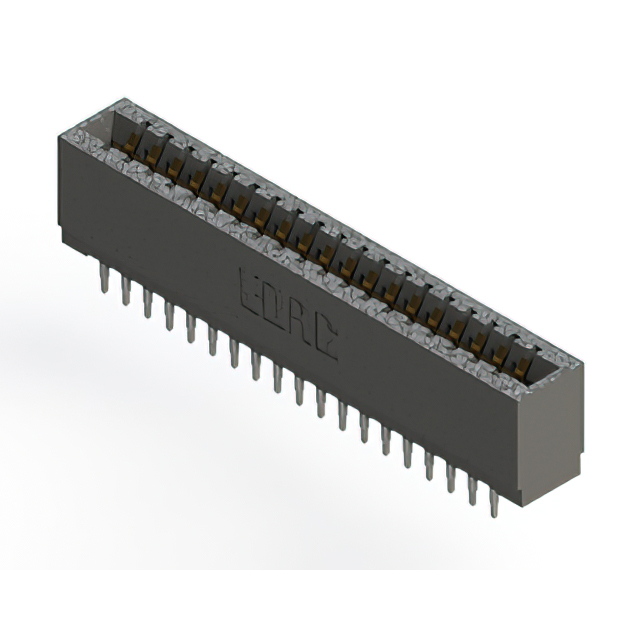

EDAC Inc. 726-038-525-201		Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám		-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Dual Edge		Dual	3.18 mm	0.125 in	Press-Fit	2	2	19
EDAC Inc. 726-038-545-201		Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám		-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Dual Edge		Dual	3.18 mm	0.125 in	Press-Fit Wire Wrap	2	2	19
EDAC Inc. 726-038-541-201		Polyester Thermoplastic	38	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	30 Áin	0.76 Ám		-40 C	105 ░C	Gold	Female	Through Hole	Black	Non Specified - Dual Edge		Dual	3.18 mm	0.125 in	Press-Fit Wire Wrap	2	2	19
