1N4531

1N4531 Series

High-speed diodes

Manufacturer: Nexperia USA Inc.

Catalog

High-speed diodes

Description

AI

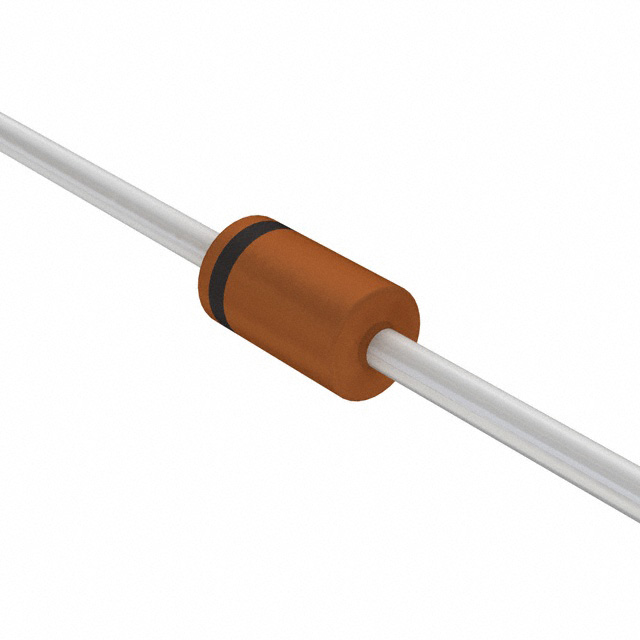

The 1N4531, 1N4532 are high-speed switching diodes fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD68 (DO-34) packages.

Catalog

High-speed diodes

Part	Voltage - Forward (Vf) (Max)	Technology	Package Name	Package / Case	Reverse Recovery Time (trr)	Operating Temperature - Junction (Max)	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Current - Reverse Leakage	Mounting Type	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Capacitance
Nexperia USA Inc. 1N4531,133	1 V	Standard	DO-34	Axial DO-204AG DO-34	4 ns	200 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	25 nA	Through Hole	200 mA	75 V	4 pF
Nexperia USA Inc. 1N4531,113	1 V	Standard	DO-34	Axial DO-204AG DO-34	4 ns	200 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	25 nA	Through Hole	200 mA	75 V	4 pF
Nexperia USA Inc. 1N4531,143	1 V	Standard	DO-34	Axial DO-204AG DO-34	4 ns	200 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	25 nA	Through Hole	200 mA	75 V	4 pF
