MENB1010 Series

Catalog

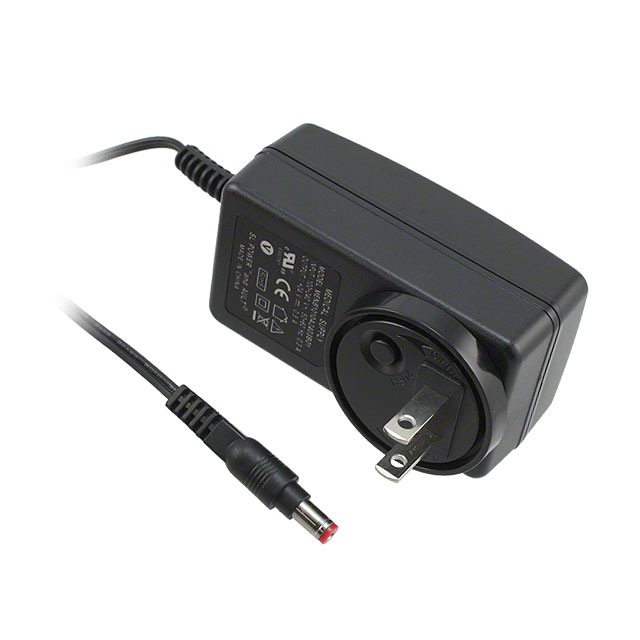

AC/DC DESKTOP ADAPTER 12V 12W

Part	Weight	Weight	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Form	Voltage - Output	Power (Watts)	Polarization	Input Connector	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	No Load Power Consumption	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Applications
SL POWER / Advanced Energy MENB1010A1203F01	110.22 g	0.243 lb	Cord (Sold Separately)	100 VAC	240 VAC	International	Desktop (Class I)	12 V	12 W	Positive Center	IEC 320-C14	Level V	3.3 "	1.26 "	47 mm	32 mm	1.85 in	84 mm	300 mW	1.5 m	59 in	40 °C	0 °C	CE cURus	1 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Medical
SL POWER / Advanced Energy MENB1010A0503B01	110.22 g	0.243 lb	Fixed Blade Multi-Blade	100 VAC	240 VAC	North America	Wall Mount	5 V	10 W	Positive Center	NEMA 1-15P Multi-Blade	Level V	3.3 "	1.26 "	47 mm	32 mm	1.85 in	84 mm	300 mW	1.5 m	59 in	40 °C	0 °C	CB CE CSA UL	2 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Medical
