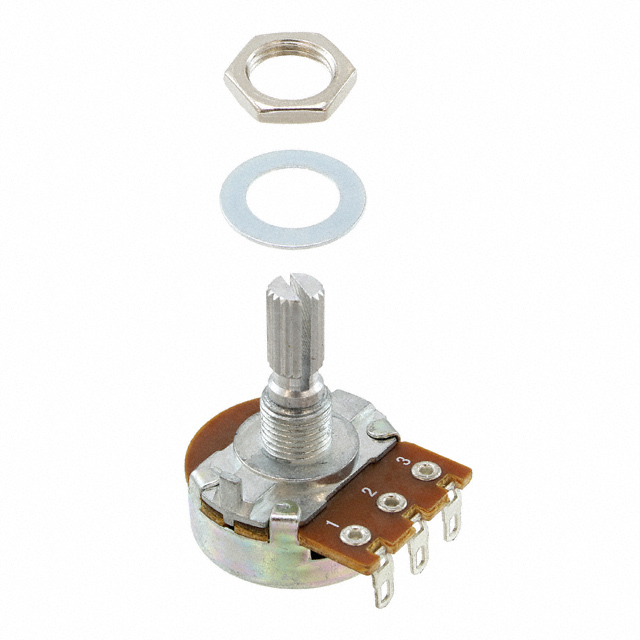

PDB242 Series

Catalog

POT 250K OHM 1/2W CARBON LINEAR

Part	Number of Gangs	Adjustment Type	Taper	Power (Watts)	Power (Watts)	Actuator Type	Bushing Thread [custom]	Bushing Thread [diameter]	Number of Turns	Actuator Length [z]	Actuator Length [z]	Rotation	Tolerance	Termination Style	Resistance (Ohms)	Size - Body [diameter]	Size - Body [diameter]	Resistive Material	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Built in Switch	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)
Bourns Inc. PDB242-E430P-254B0	1	User Defined	Linear	0.5 W	0.5 W	Round	0.75 mm	M8	1	30 mm	1.181 in	300 ░	20 %	Solder Lug	250k	0.945 in	24 mm	Carbon	0.236 in	6 mm
Bourns Inc. PDB242-E420P-103B0	1	User Defined	Linear	0.5 W	0.5 W	Round	0.75 mm	M8	1	20 mm	0.787 in	300 ░	20 %	Solder Lug	10k	0.945 in	24 mm	Carbon	0.236 in	6 mm
Bourns Inc. PDB242-E420K-254A2	1	User Defined	Logarithmic	250 mW	0.25 W	Knurled and Slotted	0.75 mm	M8	1	20 mm	0.787 in	300 ░	20 %	Solder Lug	250k	0.945 in	24 mm	Carbon	0.236 in	6 mm
Bourns Inc. PDB242-E220F-103B0	1	User Defined	Linear	0.5 W	0.5 W	Flatted	0.75 mm	M8	1	20 mm	0.787 in	300 ░	20 %	Solder Lug	10k	0.945 in	24 mm	Carbon	0.236 in	6 mm	Detent
Bourns Inc. PDB242-E430P-105A	1	User Defined	Logarithmic	250 mW	0.25 W	Round	0.75 mm	M8	1	30 mm	1.181 in	300 ░	20 %	Solder Lug	1M	0.945 in	24 mm	Carbon	0.236 in	6 mm
Bourns Inc. PDB242-D425P-103A1	1	Side Adjustment	Logarithmic	250 mW	0.25 W	Round	0.75 mm	M8	1			300 ░	20 %	PC Pins	10k	0.945 in	24 mm	Carbon	0.236 in	6 mm		0.984 in	25 mm
Bourns Inc. PDB242-S425K-104B2	1	User Defined	Linear	0.5 W	0.5 W	Knurled and Slotted	0.75 mm	M8	1			300 ░	20 %	Solder Lug		0.945 in	24 mm	Carbon	0.236 in	6 mm		0.984 in	25 mm	100 kOhms
Bourns Inc. PDB242-E430P-504A2	1	User Defined	Logarithmic	250 mW	0.25 W	Round	0.75 mm	M8	1	30 mm	1.181 in	300 ░	20 %	Solder Lug		0.945 in	24 mm	Carbon	0.236 in	6 mm				500 kOhms
Bourns Inc. PDB242-E420P-105A1	1	User Defined	Logarithmic	250 mW	0.25 W	Round	0.75 mm	M8	1	20 mm	0.787 in	300 ░	20 %	Solder Lug	1M	0.945 in	24 mm	Carbon	0.236 in	6 mm
Bourns Inc. PDB242-E420P-254A2	1	User Defined	Logarithmic	250 mW	0.25 W	Round	0.75 mm	M8	1	20 mm	0.787 in	300 ░	20 %	Solder Lug	250k	0.945 in	24 mm	Carbon	0.236 in	6 mm
