KRS25F Series
Manufacturer: Volgen + Furuno
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC CONVERTER 5V 25W
| Part | Power (Watts) | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Features | Type | Package / Case | Voltage - Output 1 | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Operating Temperature (Max) | Operating Temperature (Min) | Efficiency | Number of Outputs | Applications | Mounting Type | Approval Agency | Current - Output (Max) | Standard Number | Weight | Load Regulation (mV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

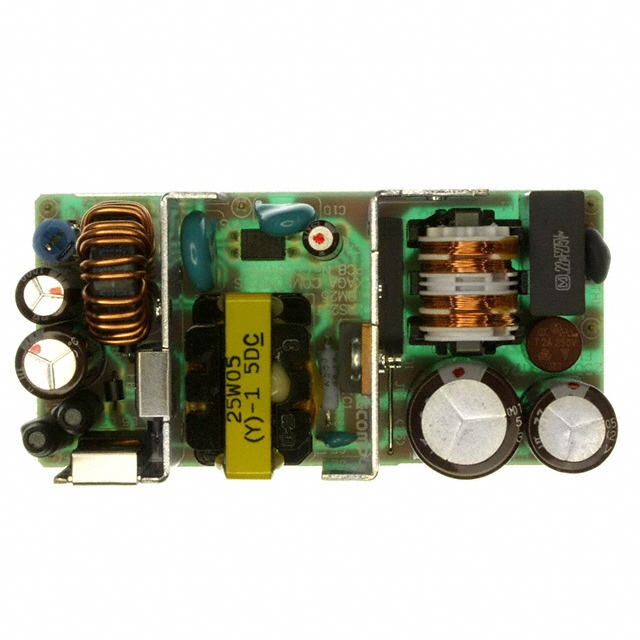

 Volgen + Furuno | 25 W | 3.35 in | 1.61 in | 0.91 in | Adjustable Output Universal Input | Open Frame | 5-DIP Module | 5 V | 85 VAC | 264 V | 70 °C | 0 °C | 74 % | 1 | ITE (Commercial) | Through Hole | IEC | 5 A | 60950-1 | 0.22 lb | 100 mV |

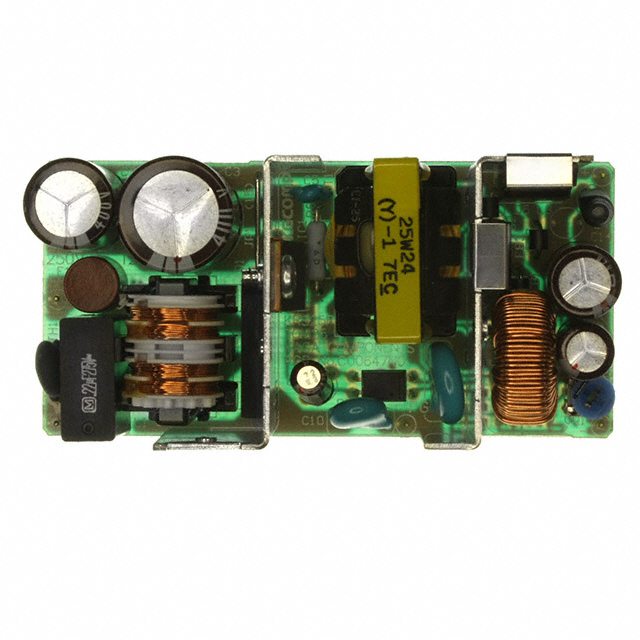

 Volgen + Furuno | 25 W | 3.35 in | 1.61 in | 0.91 in | Adjustable Output Universal Input | Open Frame | 5-DIP Module | 24 V | 85 VAC | 264 V | 70 °C | 0 °C | 80 % | 1 | ITE (Commercial) | Through Hole | IEC | 1.1 A | 60950-1 | 0.22 lb | 100 mV |

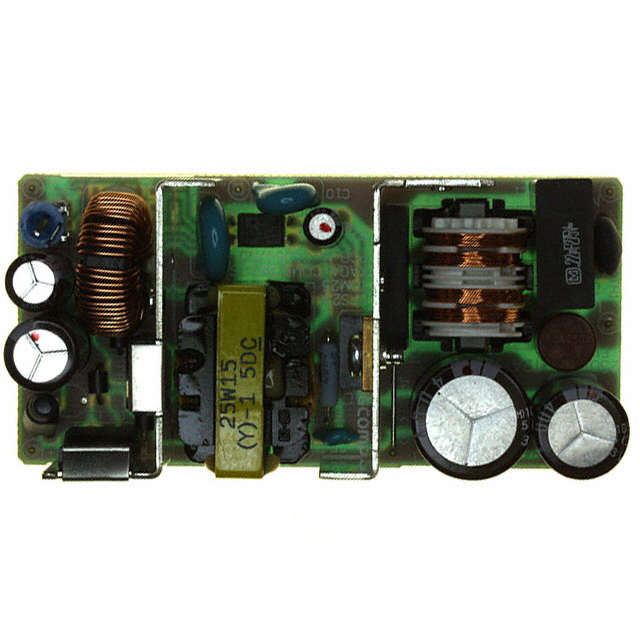

 Volgen + Furuno | 25 W | 3.35 in | 1.61 in | 0.91 in | Adjustable Output Universal Input | Open Frame | 5-DIP Module | 15 V | 85 VAC | 264 V | 70 °C | 0 °C | 80 % | 1 | ITE (Commercial) | Through Hole | IEC | 1.7 A | 60950-1 | 0.22 lb | 100 mV |

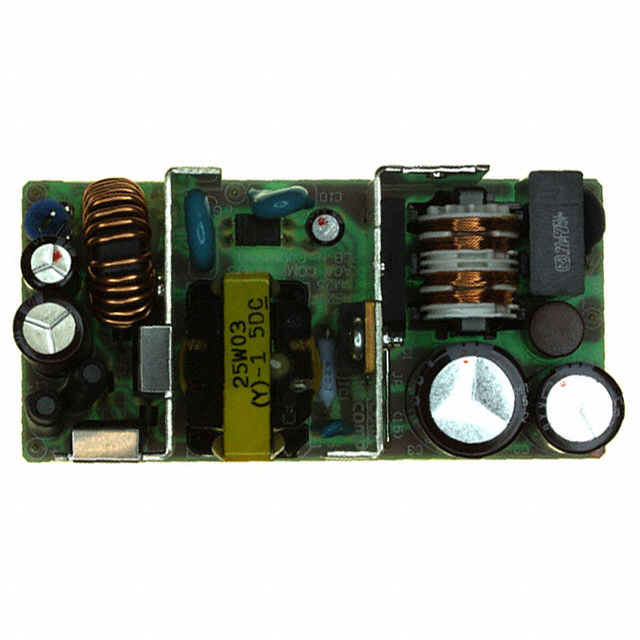

 Volgen + Furuno | 25 W | 3.35 in | 1.61 in | 0.91 in | Adjustable Output Universal Input | Open Frame | 5-DIP Module | 3.3 V | 85 VAC | 264 V | 70 °C | 0 °C | 69 % | 1 | ITE (Commercial) | Through Hole | IEC | 6 A | 60950-1 | 0.22 lb | 100 mV |
