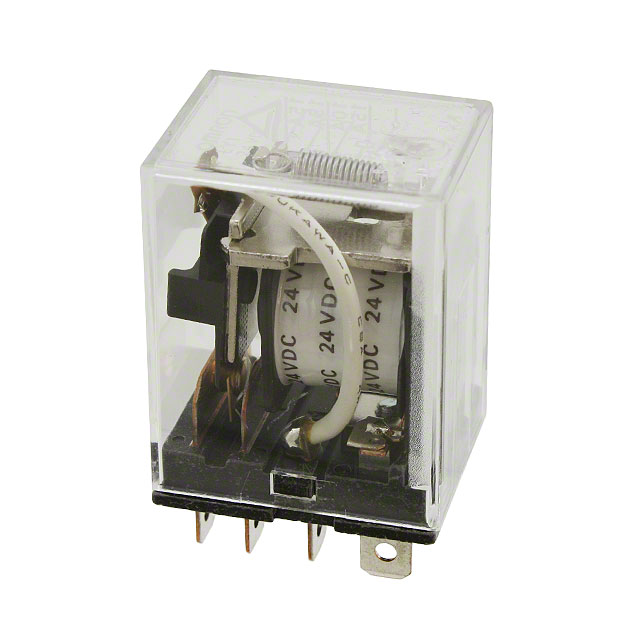

LY1-DC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 15A 24V
| Part | Coil Type | Coil Voltage | Coil Resistance | Must Operate Voltage | Contact Material | Operate Time | Release Time | Relay Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Must Release Voltage | Coil Current | Switching Voltage | Approval Agency | Contact Form | Load - Max Switching | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 24 VDC | 650 Ohms | 19.2 VDC | Silver Alloy | 25 ms | 25 ms | General Purpose | Socketable | 55 °C | -25 °C | 15 A | 2.4 VDC | 36.9 mA | 125 VDC 250 VAC | CE CSA TUV UR | SPDT (1 Form C) | 1875 W 3750 VA | Plug In |
