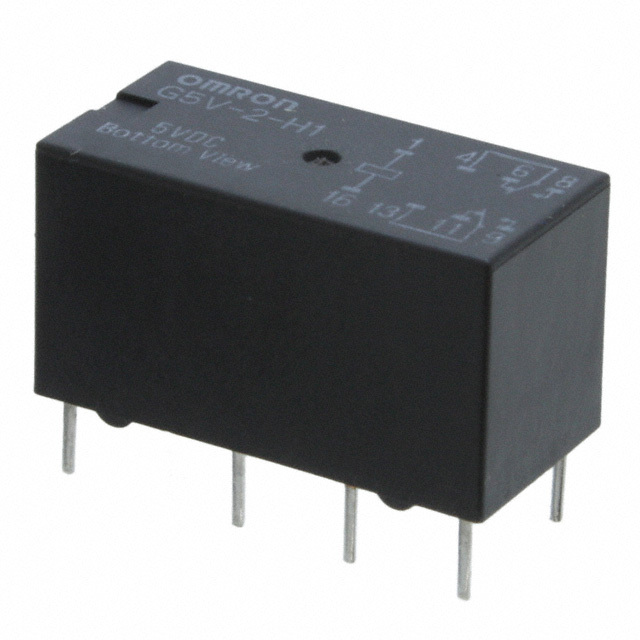

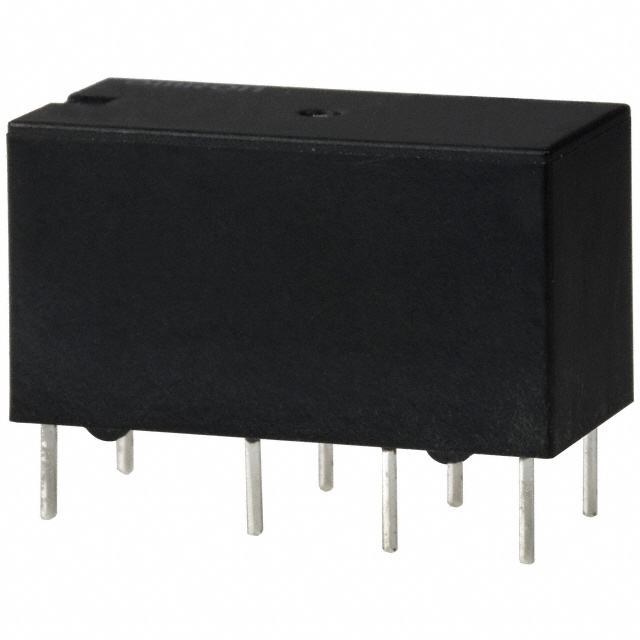

G5V-2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 24V
| Part | Contact Rating (Current) | Approval Agency | Termination Style | Coil Voltage | Coil Type | Contact Form | Seal Rating | Operate Time | Coil Current | Switching Voltage | Release Time | Contact Material | Coil Resistance | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Mounting Type | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 24 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 20.8 mA | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 1.15 kOhms | 18 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 1.2 VDC |
 Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 12 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 41.7 mA | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 288 Ohms | 9 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 0.6 VDC |
Omron Electronics Inc-EMC Div | 1 A | CSA UR | PC Pin | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 240 Ohms | 4.5 VDC | 70 °C | -25 °C | General Purpose | Through Hole | 0.3 VDC | ||
Omron Electronics Inc-EMC Div | 1 A | CSA UR | PC Pin | 12 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 960 Ohms | 9 VDC | 70 °C | -25 °C | General Purpose | Through Hole | 0.6 VDC | |
Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 24 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 15 mA | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 1.6 kOhms | 18 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 1.2 VDC |
 Omron Electronics Inc-EMC Div | 1 A | CSA UR | PC Pin | 5 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 30 mA | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 167 Ohms | 3.75 VDC | 70 °C | -25 °C | General Purpose | Through Hole | 0.25 VDC |
Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 48 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 12 mA | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 4 kOhms | 36 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 2.4 VDC |
Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 48 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 7.5 mA | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 6.4 kOhms | 36 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 2.4 VDC |
Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 4.5 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 40.5 Ohms | 3.38 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 0.225 VDC | |
Omron Electronics Inc-EMC Div | 2 A | CSA UR | PC Pin | 9 VDC | Non Latching | DPDT (2 Form C) | Sealed - Fully | 7 ms | 125 VAC 125 VDC | 3 ms | Gold (Au) Silver (Ag) | 162 Ohms | 6.75 VDC | 65 °C | -25 °C | General Purpose | Through Hole | 0.45 VDC |
