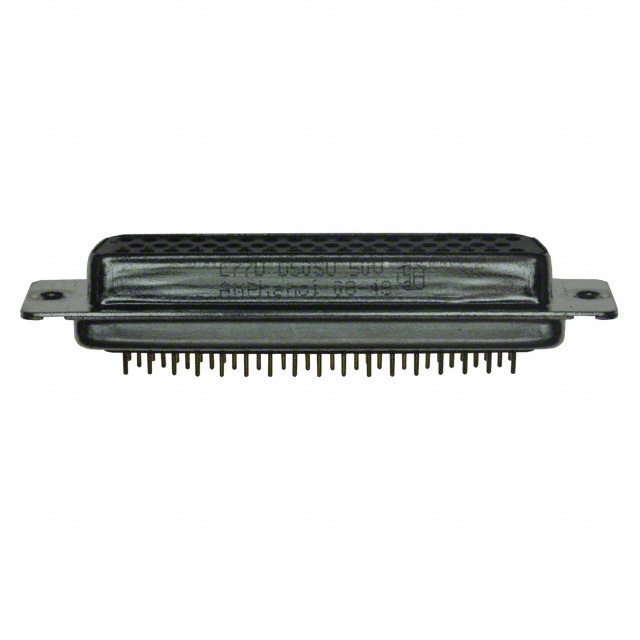

L77DD50 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 50POS VERT SLDR
| Part | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Connector Type | Termination | Number of Positions | Flange Feature | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Connector Style | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Backset Spacing | Backset Spacing | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Solder | 50 | Housing/Shell (Unthreaded) | 7.5 A | Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | |||
 Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Solder | 50 | Housing/Shell (Unthreaded) | 7.5 A | Right Angle Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | 0.319 in | 8.1 mm | Mounting Brackets |
Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Solder | 50 | 4-40 Mating Side Female Screwlock | 7.5 A | Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | Board Lock | ||
Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Solder | 50 | Housing/Shell (Unthreaded) | 7.5 A | Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | |||
Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Solder | 50 | Housing/Shell (Unthreaded) | 7.5 A | Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | |||
Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Wire Wrap | 50 | Housing/Shell (Unthreaded) | 7.5 A | Panel Mount Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | |||
 Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Solder | 50 | Housing/Shell (Unthreaded) | 7.5 A | Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD | |||
Amphenol ICC (Commercial Products) | Black | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Brass | Receptacle Female Sockets | Wire Wrap | 50 | Housing/Shell (Unthreaded) | 7.5 A | Panel Mount Through Hole | UL94 V-0 | D-Sub | 3 | 0.203 çm | 8 µin | Signal | Gold | 5 | D DD |
