Mark I Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PL MK1 RECEPTACLE NATURAL 6.6 PA

Part	Note	Material	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Terminal Type	Terminal Size	Terminal Size	Color	Mounting Type	Gender	Style	Number of Positions	Stacking Direction	Contact Material	Contact Finish	Length - Overall [x]	Length - Overall [x]	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width [x]	Tab Width [x]	Tab Thickness	Tab Thickness	Insulation	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [custom]	Wire Gauge [custom]

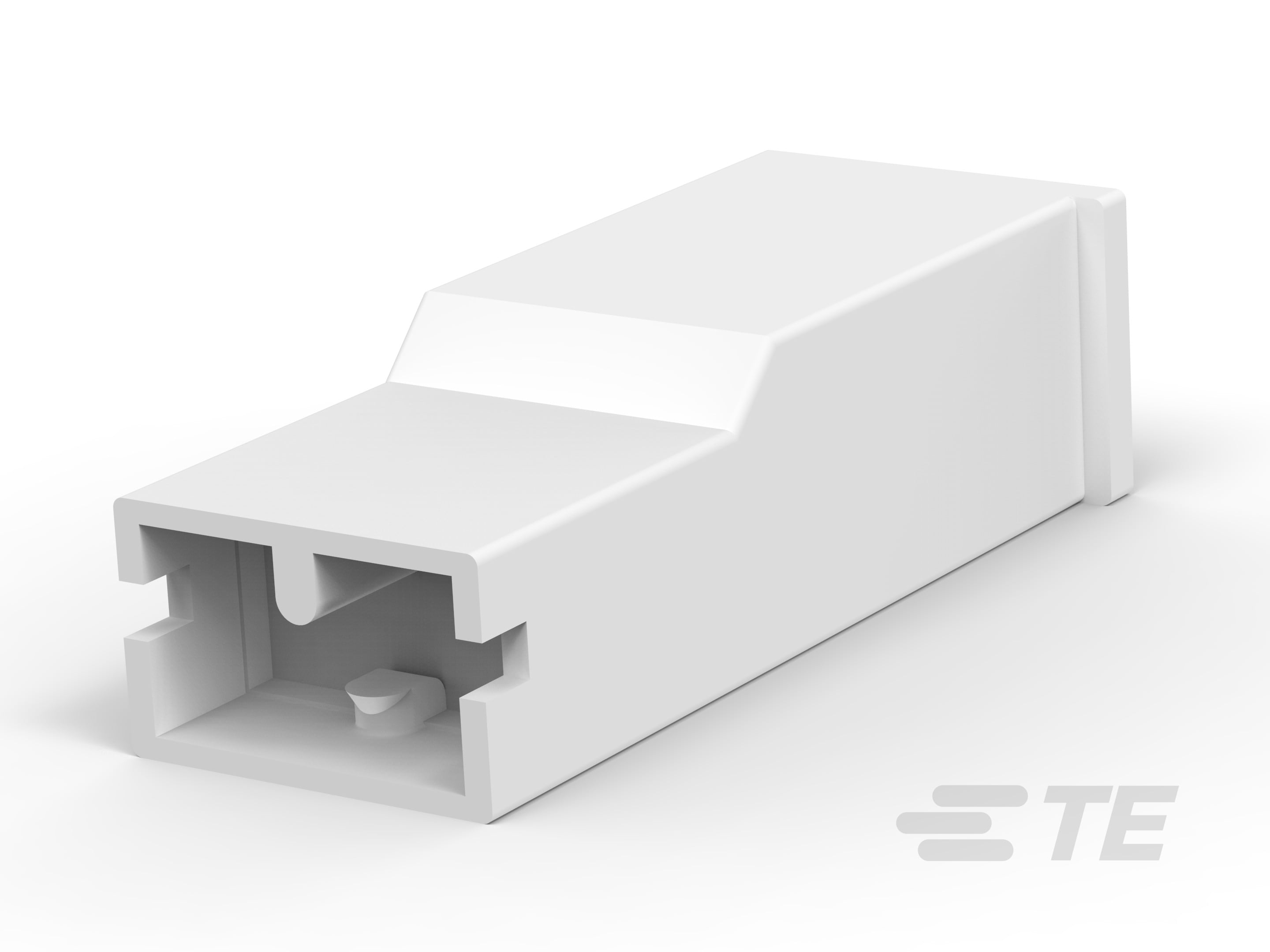

TE Connectivity AMP Connectors 1-2133341-1	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Quick Connects	6.35 mm	0.25 in	Quick Connect Disconnect	0.25 in	6.35 mm	Natural	Free Hanging (In-Line)	Female Receptacle	Housing	1

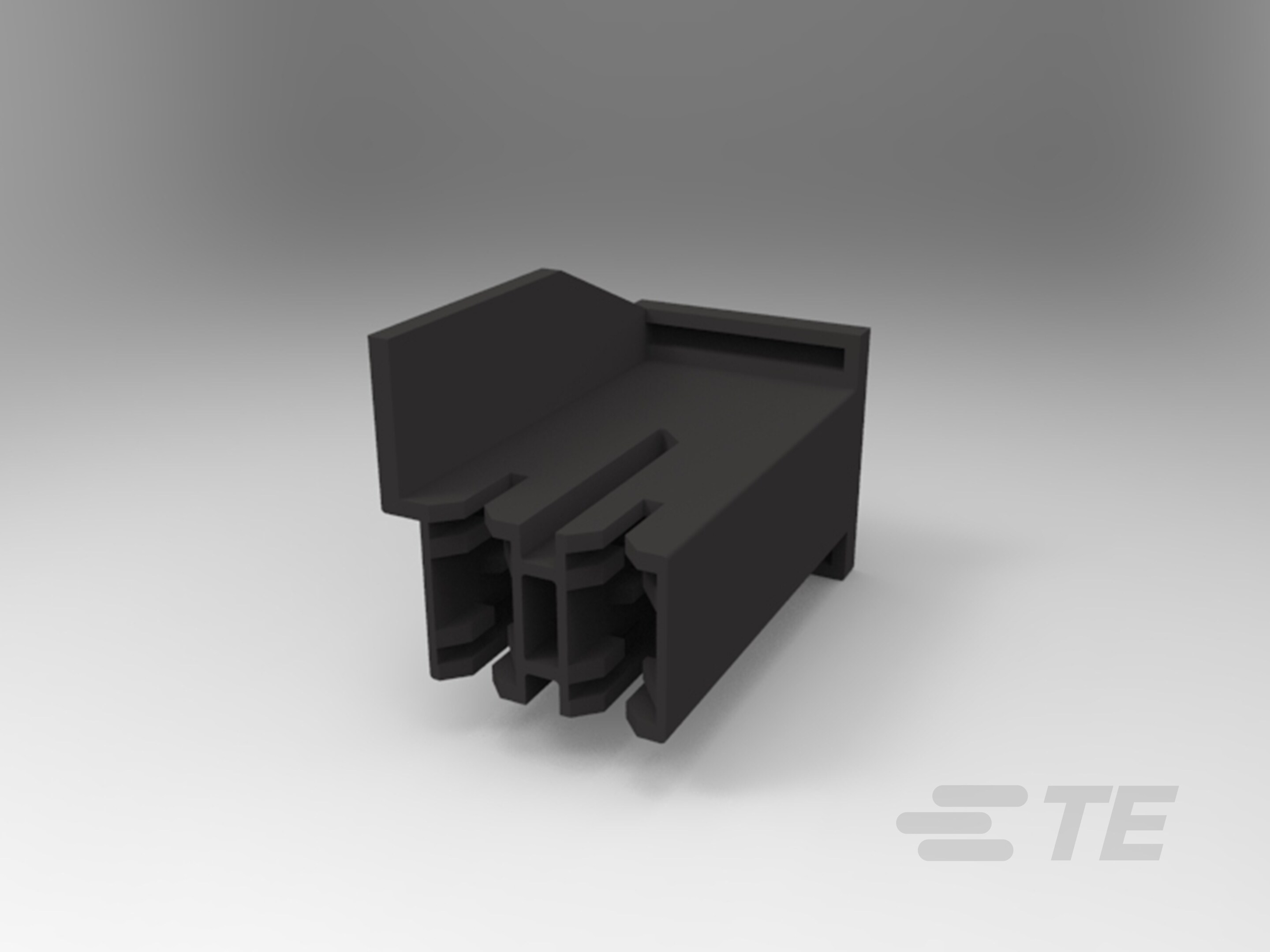

TE Connectivity AMP Connectors 1-1969717-2						Quick Connect Disconnect	0.25 in	6.35 mm	Black	Free Hanging (In-Line)	Female Receptacle	Housing	2	Top to Bottom
TE Connectivity AMP Connectors 1969630-2						Quick Connect Disconnect	0.25 in	6.35 mm	Natural	Free Hanging (In-Line)	Female Receptacle	Housing	1
TE Connectivity AMP Connectors 154718-7						Standard				Free Hanging (In-Line)	Female				Phosphor Bronze	Tin	22.5 mm	0.886 in	Crimp	14 AWG	18 AWG	6.35 mm	0.25 in	0.81 mm	0.032 in	Non-Insulated
TE Connectivity AMP Connectors 8-154719-3			Quick Connects	6.35 mm	0.25 in	Quick Connect Disconnect	0.25 in	6.35 mm	Terracotta	Free Hanging (In-Line)	Female Receptacle	Housing	1

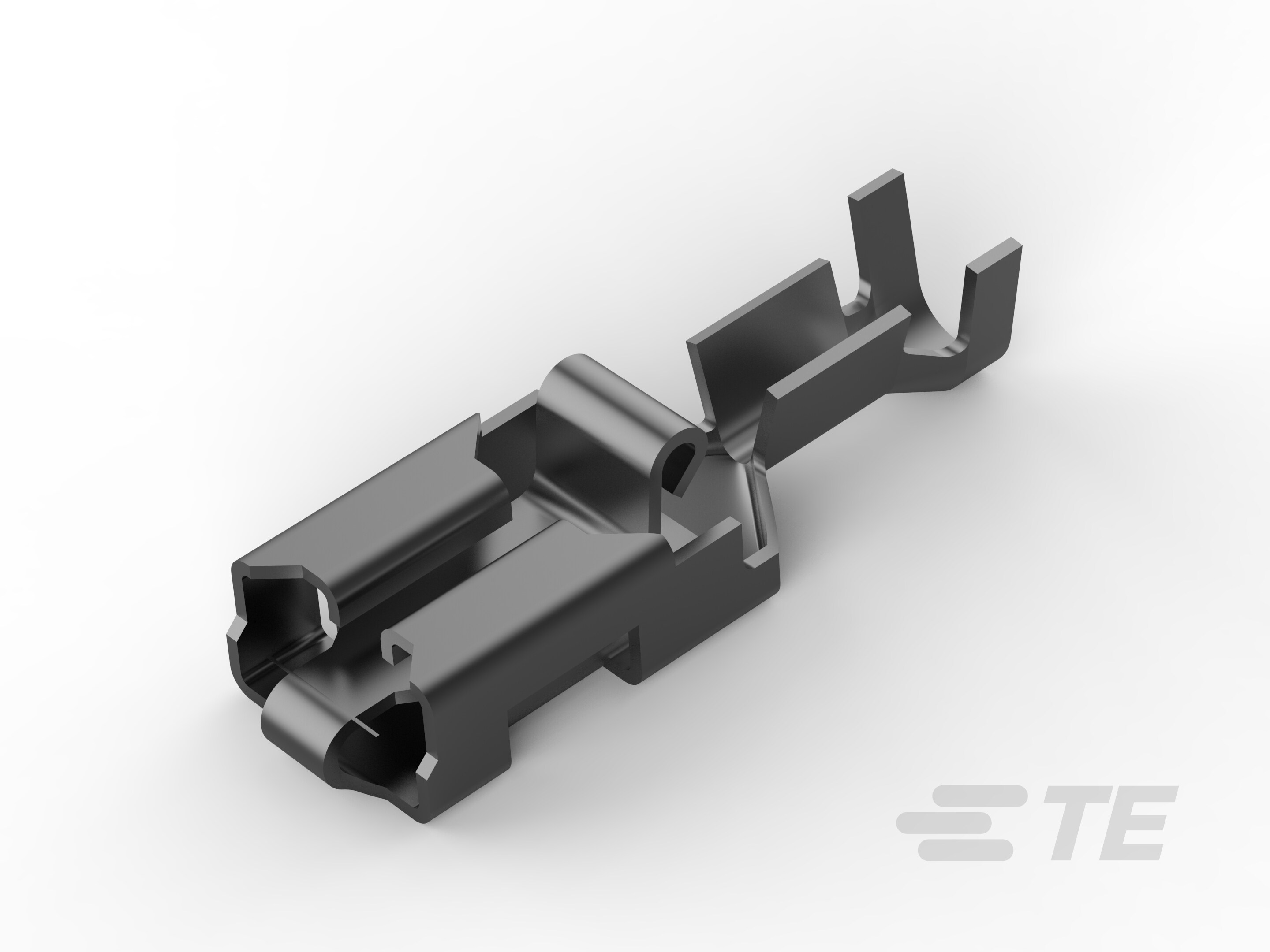

TE Connectivity AMP Connectors 160759-3						Standard				Free Hanging (In-Line)	Female				Brass	Tin	22.3 mm	0.878 in	Crimp	16 AWG	20 AWG	6.35 mm	0.25 in	0.81 mm	0.032 in	Non-Insulated	2.31 mm	0.13 "	0.091 "	3.3 mm

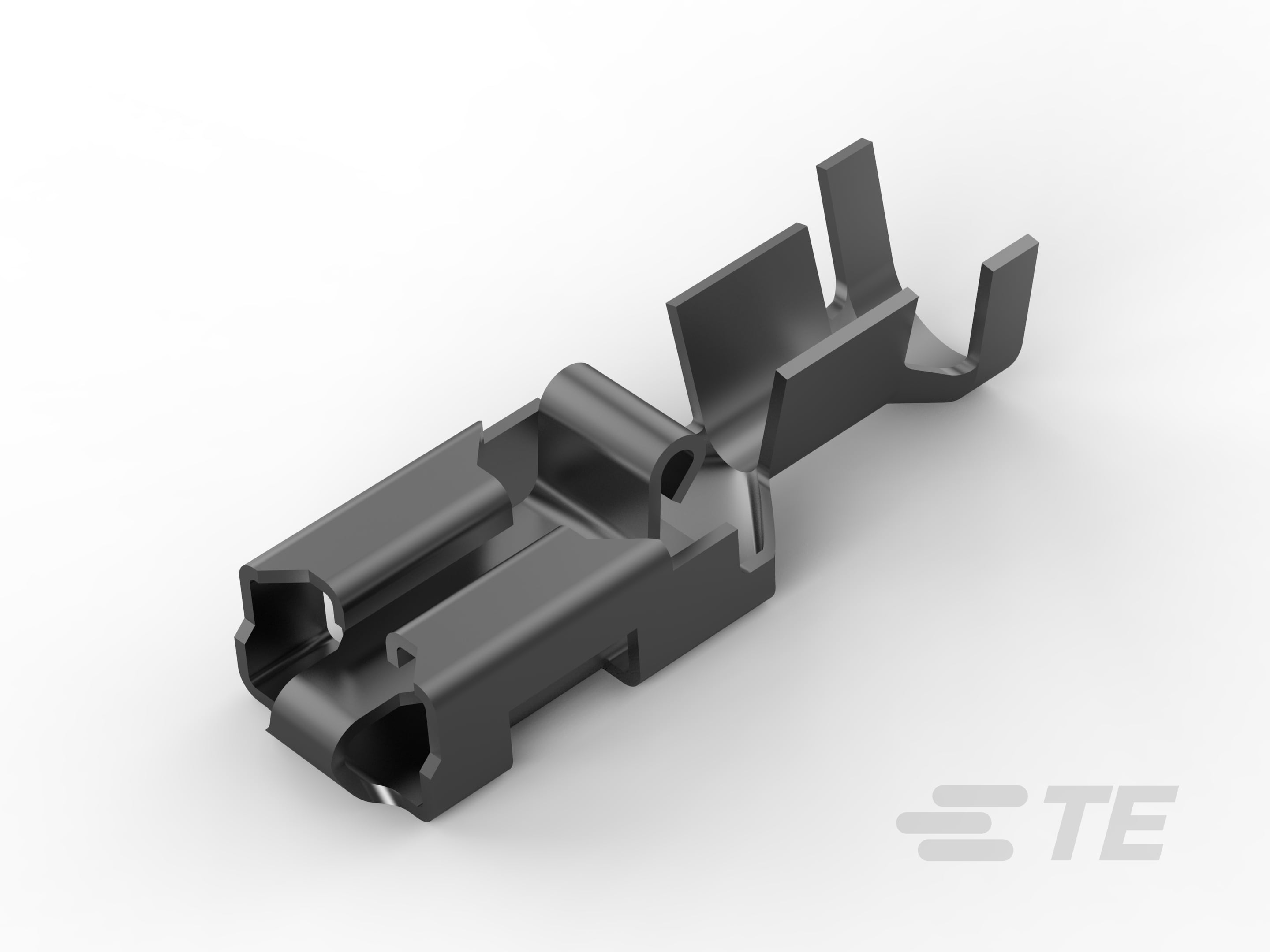

TE Connectivity AMP Connectors 154717-4						Standard				Free Hanging (In-Line)	Female				Phosphor Bronze	Tin	22.5 mm	0.886 in	Crimp	11 AWG	14 AWG	6.35 mm	0.25 in	0.81 mm	0.032 in	Non-Insulated
TE Connectivity AMP Connectors 154718-1						Standard				Free Hanging (In-Line)	Female				Brass		22.5 mm	0.886 in	Crimp	14 AWG	18 AWG	6.35 mm	0.25 in	0.81 mm	0.032 in	Non-Insulated					0.094 in	3.2 mm	0.126 in	2.39 mm
TE Connectivity AMP Connectors 63812-1
TE Connectivity AMP Connectors 880646-6						Standard				Free Hanging (In-Line)	Female				Phosphor Bronze	Tin	20.6 mm	0.811 in	Crimp			6.35 mm	0.25 in	0.81 mm	0.032 in	Non-Insulated					0.079 in	3.3 mm	0.13 in	2 mm	17	20 AWG
