MC-V07-130 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

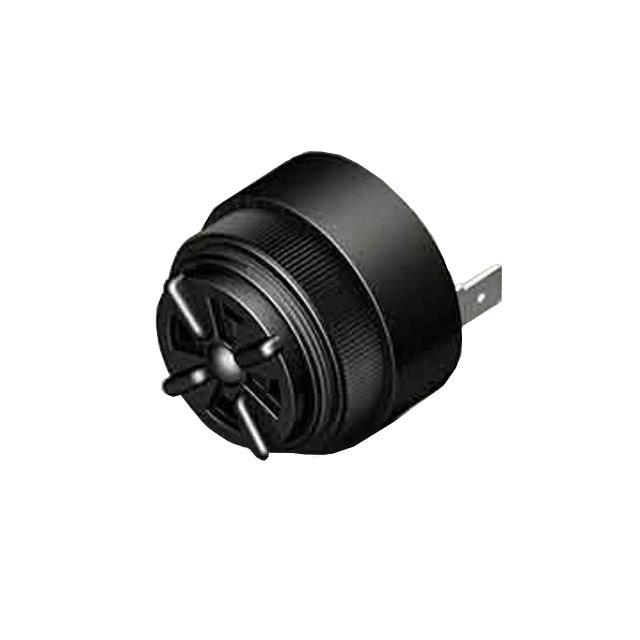

BUZZER PIEZO 35.81MM PNL MNT
| Part | Ingress Protection | Input Type | Port Location | Current - Supply [Min] | Current - Supply [Max] | Sound Pressure Level (SPL) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage Range [Min] | Voltage Range [Max] | Approval Agency | Operating Mode | Mounting Type | Termination | Termination | Termination | Frequency | Driver Circuitry | Size / Dimension [diameter] | Size / Dimension [diameter] | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | DC | Top | 4 mA | 35 mA | 93 dB | 1.14 in | 28.96 mm | 3 V | 30 V | UL UR | Single Tone | Panel Mount | Quick Connect Tab | 0.25 " | 6.35 mm | 2.9 kHz | Indicator Internally Driven | 1.41 in | 35.81 mm | Piezo |
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | DC | Top | 4 mA | 35 mA | 93 dB | 1.14 in | 28.96 mm | 3 V | 30 V | UL UR | Single Tone | Panel Mount | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | 2.9 kHz | Indicator Internally Driven | 1.41 in | 35.81 mm | Piezo |
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | DC | Top | 4 mA | 35 mA | 93 dB | 1.14 in | 28.96 mm | 3 V | 30 V | UL UR | Single Tone | Panel Mount | Wire Leads | 2.9 kHz | Indicator Internally Driven | 1.41 in | 35.81 mm | Piezo |
