21_BNC-75 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

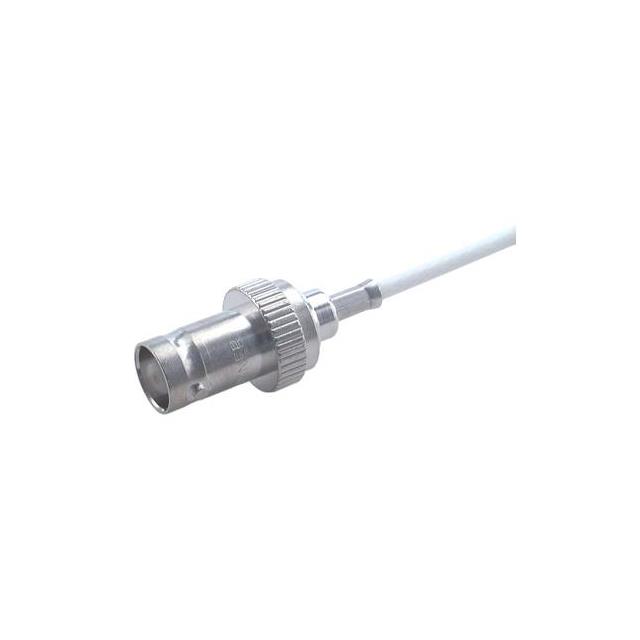

21_BNC-75-2-5/133_NE
| Part | Voltage Rating | Center Contact Plating | Mating Cycles | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Contact Termination | Frequency - Max [Max] | Number of Ports | Mounting Type | Shield Termination | Impedance | Connector Style | Center Contact Material | Connector Type | Cable Group | Housing Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 V | Gold | 500 | White Bronze | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Crimp | 1 GHz | 1 | Free Hanging (In-Line) | Crimp | 75 Ohms | BNC | Beryllium Copper Brass | Female Socket Jack | 187 RG-179 | Silver | Bayonet Lock |
