EXB-V8 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

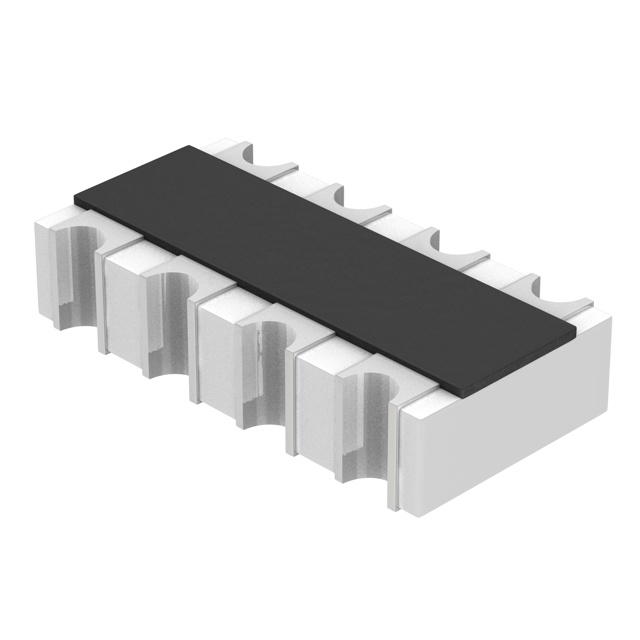

RES ARRAY 4 RES 4.3K OHM 1206
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Pins | Supplier Device Package | Package / Case | Mounting Type | Temperature Coefficient | Circuit Type | Number of Resistors | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Resistance (Ohms) | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 4.3 kOhms | -55 °C | 125 °C | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 36 Ohms | -55 °C | 125 °C | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 62 Ohms | -55 °C | 125 °C | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | -55 °C | 125 °C | 2k | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | -55 °C | 125 °C | 24k | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 510 Ohms | -55 °C | 125 °C | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | -55 °C | 125 °C | 22k | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 6.2 kΩ | -55 °C | 125 °C | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 1.2 Ohms | -55 °C | 125 °C | |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 8 | 1206 | 1206 (3216 Metric) Concave Long Side Terminals | Surface Mount | 200 ppm/°C | Isolated | 4 | 0.7 mm | 0.028 in | 5 % | 1.1 Ohms | -55 °C | 125 °C |
