maxiflowtm Series

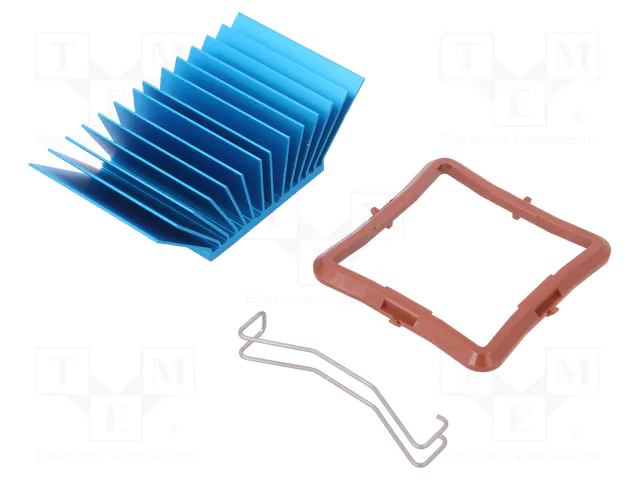

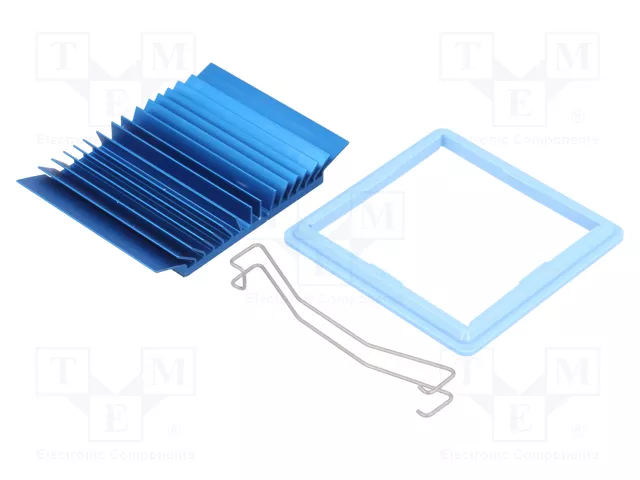

Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm

Part	Thermal Resistance @ Forced Air Flow	Shape [custom]	Shape [custom]	Material Finish	Material	Type	Fin Height [custom]	Fin Height [custom]	Package Cooled	Width [x]	Width [x]	Length [x]	Length [x]	Attachment Method	Width [y]	Width [y]	Length	Fin Height	Fin Height	Length	Fin Height [z]	Fin Height [z]	Width	Width

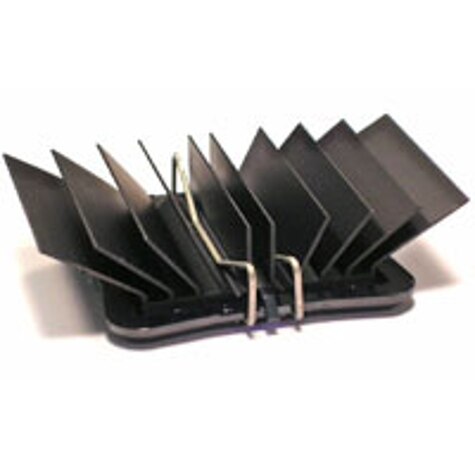

Advanced Thermal Solutions Inc. ATS-51310K-C1-R0	4.2 °C/W	Angled Fins	Square	Black Anodized	Aluminum	Top Mount	0.571 in	14.5 mm	BGA	1.22 in	30.99 mm	30.99 mm	1.22 in	Clip Thermal Material

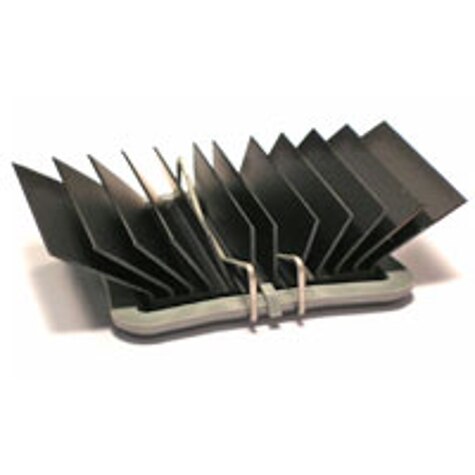

Advanced Thermal Solutions Inc. ATS-51325K-C1-R0	3.5 °C/W	Angled Fins	Square	Black Anodized	Aluminum	Top Mount	0.571 in	14.5 mm	BGA				1.28 in	Clip Thermal Material	32.51 mm	1.28 in	32.51 mm

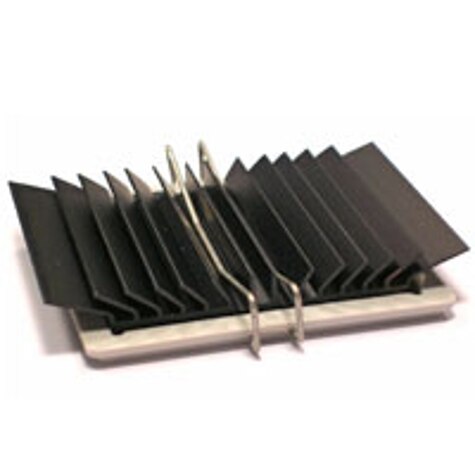

Advanced Thermal Solutions Inc. ATS-51425D-C1-R0	4.3 °C/W	Angled Fins	Square	Black Anodized	Aluminum	Top Mount			BGA					Clip Thermal Material			42.5 mm	0.374 in	9.5 mm	1.673 in
Advanced Thermal Solutions Inc. ATS-50300P-C1-R0	3.4 °C/W	Angled Fins	Square	Blue Anodized	Aluminum	Top Mount			BGA	1.181 in	30 mm			Clip Thermal Material			0.03 m			1.181 in	17.5 mm	0.689 "
Advanced Thermal Solutions Inc. ATS-50425P-C1-R0	1.9 °C/W	Angled Fins	Square	Blue Anodized	Aluminum	Top Mount			BGA					Clip Thermal Material			42.5 mm			1.673 in	17.5 mm	0.689 "
Advanced Thermal Solutions Inc. ATS-50425B-C1-R0	4.3 °C/W	Angled Fins	Square	Blue Anodized	Aluminum	Top Mount			BGA					Clip Thermal Material			42.5 mm	0.295 "	7.5 mm	1.673 in
Advanced Thermal Solutions Inc. ATS-51300R-C1-R0	3.3 °C/W	Angled Fins	Square	Black Anodized	Aluminum	Top Mount			BGA	1.181 in	30 mm			Clip Thermal Material			0.03 m	0.768 in	19.5 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-50375P-C1-R0	2.1 °C/W	Angled Fins	Square	Blue Anodized	Aluminum	Top Mount			BGA	1.476 in	37.5 mm			Clip Thermal Material			37.5 mm			1.476 in	17.5 mm	0.689 "
Advanced Thermal Solutions Inc. ATS-50450B-C1-R0	4 °C/W	Angled Fins	Square	Blue Anodized	Aluminum	Top Mount			BGA			45 mm	1.772 in	Clip Thermal Material				0.295 "	7.5 mm				1.772 in	45 mm

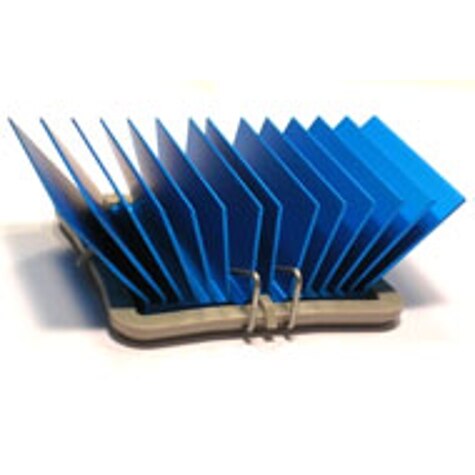

Advanced Thermal Solutions Inc. ATS-50350P-C1-R0	2.3 °C/W	Angled Fins	Square	Blue Anodized	Aluminum	Top Mount			BGA				1.378 "	Clip Thermal Material	35 mm	1.378 "	35 mm				17.5 mm	0.689 "

Catalog

Heat Sinks maxiFLOW Heat Sink w/maxiGRIP Attachment, T766, Blue-Anodized, 37.5x37.5x17.5mm
