796949 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLK 3P SIDE ENT 5.08MM PCB

Part	Contact Material - Plating	Screw Thread	Clamp Material - Plating	Torque - Screw	Torque - Screw	Screw Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Features	Wire Termination	Current	Mounting Type	Number of Levels	Mating Orientation	Pitch	Pitch	Color	Voltage	Positions Per Level	Positions Per Level [custom]
TE Connectivity AMP Connectors 796949-3	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side)	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC	3

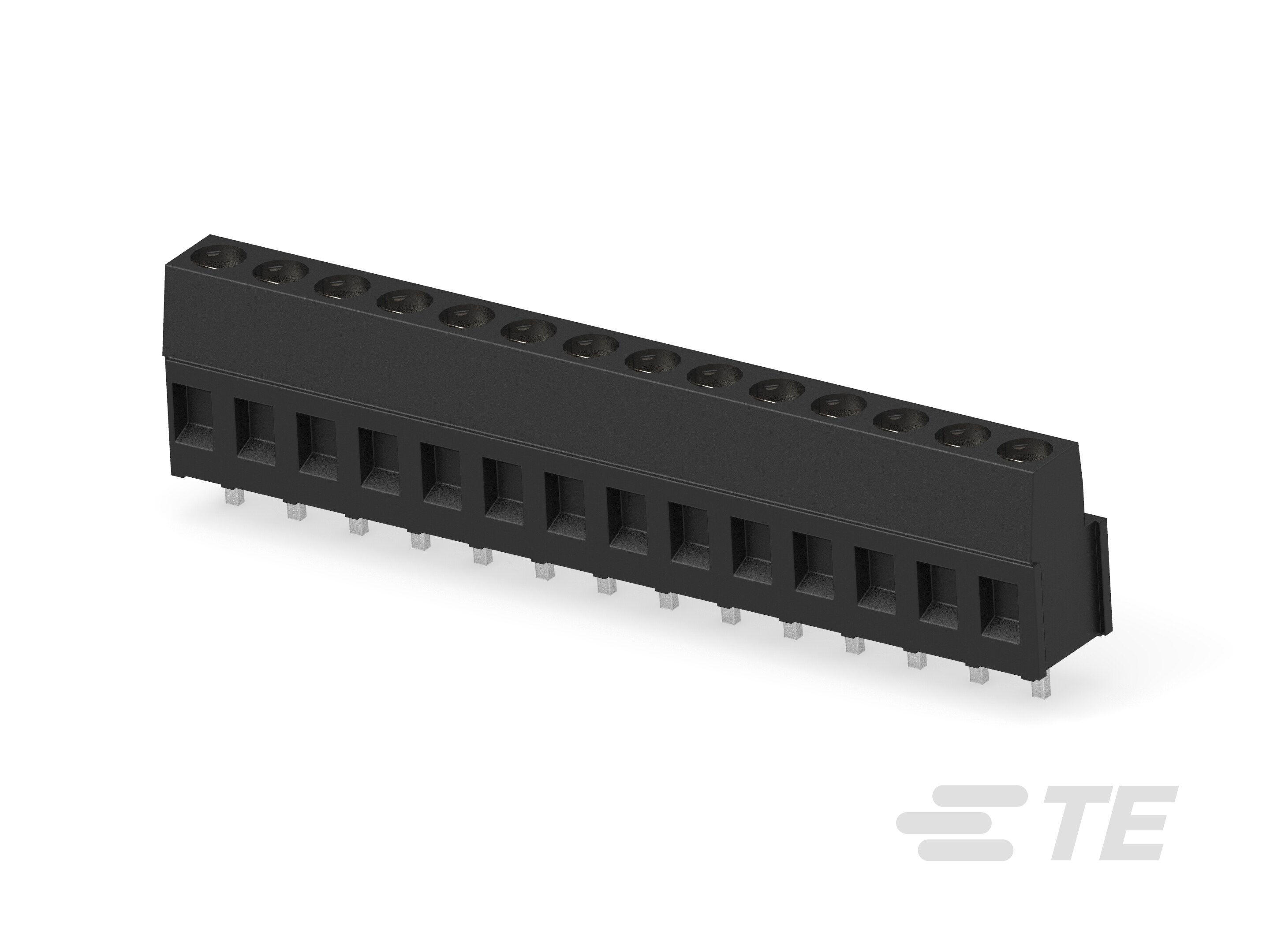

TE Connectivity AMP Connectors 1-796949-4	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side)	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC	14

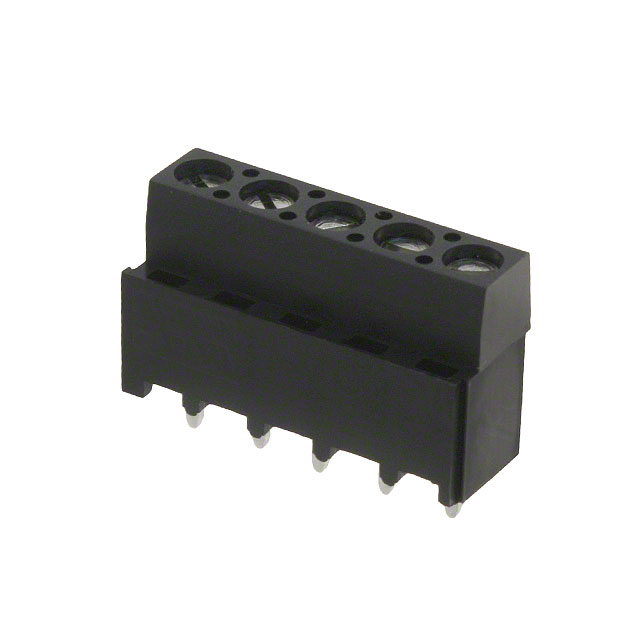

TE Connectivity AMP Connectors 796949-5	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side)	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC	5

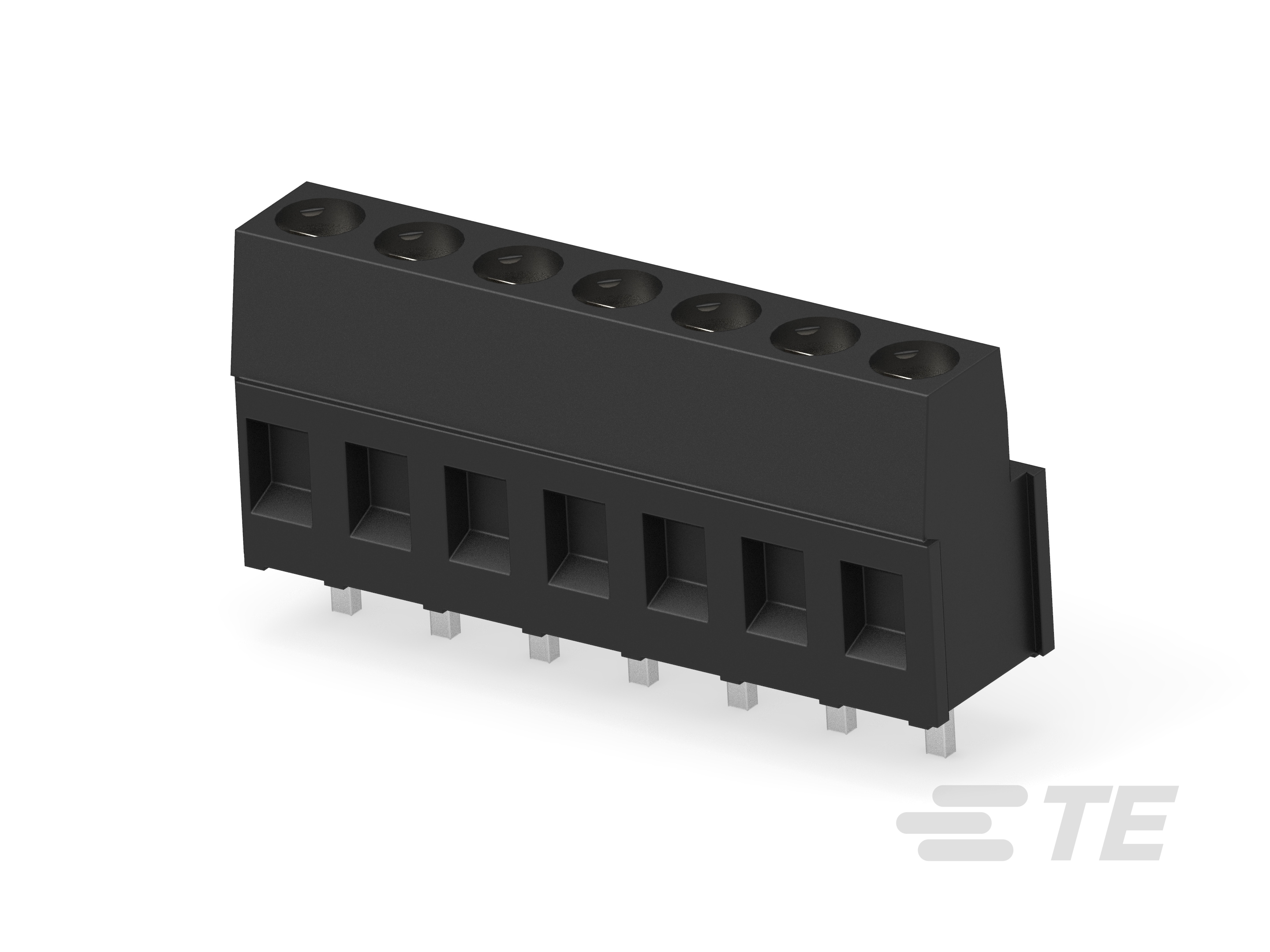

TE Connectivity AMP Connectors 796949-7	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side)	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC		7
TE Connectivity AMP Connectors 2-796949-8	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side) Positions Stamped	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC	8

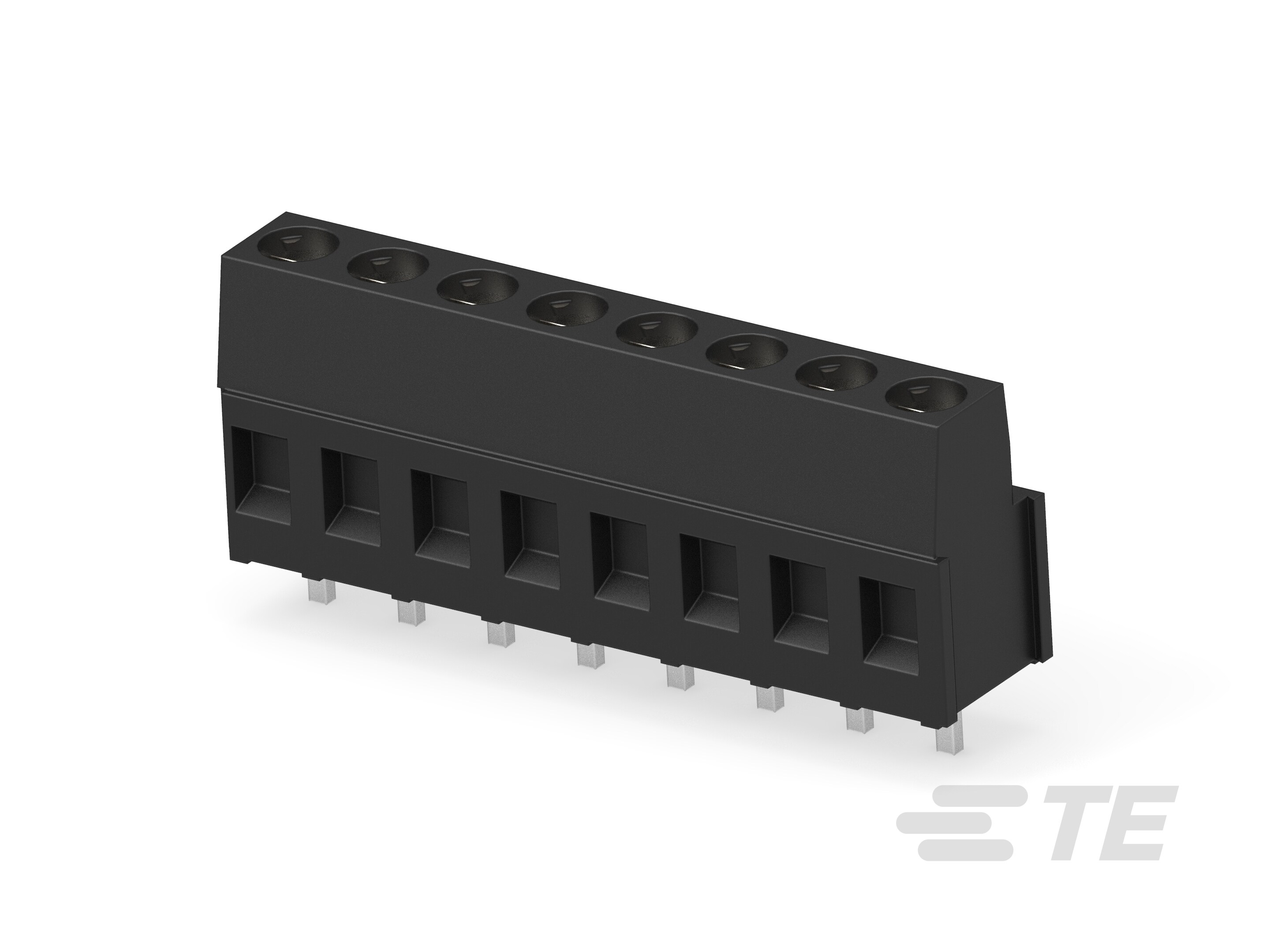

TE Connectivity AMP Connectors 796949-8	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side)	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC	8

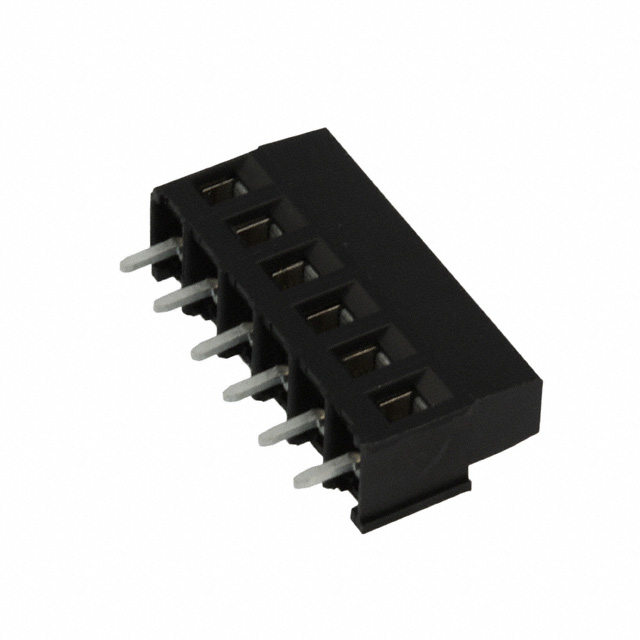

TE Connectivity AMP Connectors 796949-6	Brass - Tin Plated	M3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Nickel Plated	30 AWG	12 AWG	Interlocking (Side)	Screw - Rising Cage Clamp	17.5 A	Through Hole	1	Horizontal with Board	5.08 mm	0.2 in	Black	300 VDC	6
