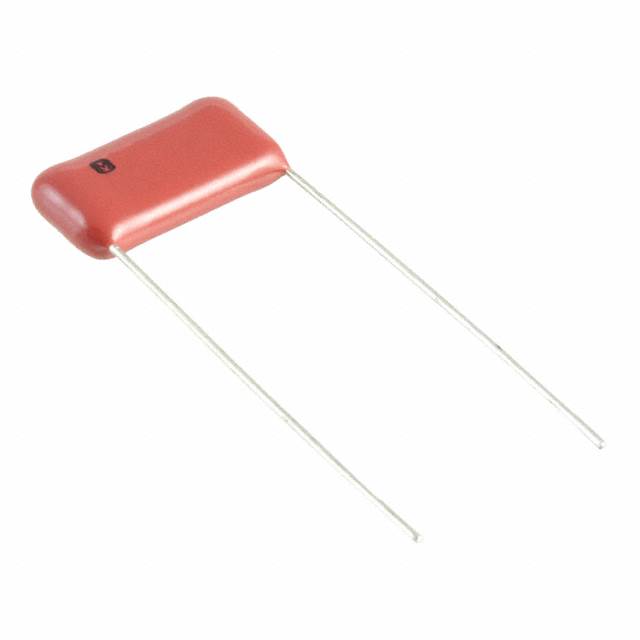

ECQ-E4124 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP FILM 0.12UF 400V PET 10%( 18.5 X 5 X 10MM) RADIAL 15MM 105°C BAG
| Part | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Termination | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage Rating - DC | Capacitance | Tolerance | Lead Spacing | Lead Spacing | Dielectric Material | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | General Purpose | -40 C | 105 ░C | Radial | PC Pins | 11 mm | 0.433 in | 400 V | 0.12 µF | 10 % | 15 mm | 0.591 in | Polyester Metallized | 0.197 " | 0.728 in | 18.5 mm | 5 mm | Through Hole |
 Panasonic Electronic Components | General Purpose | -40 C | 105 ░C | Radial | PC Pins | 15 mm | 0.591 " | 400 V | 0.12 µF | 10 % | 5 mm | 0.197 " | Polyester Metallized | 0.197 " | 0.728 in | 18.5 mm | 5 mm | Through Hole |
Panasonic Electronic Components | General Purpose | -40 C | 105 ░C | Radial | PC Pins | 15 mm | 0.591 " | 400 V | 0.12 µF | 5 % | 10 mm | 0.394 in | Polyester Metallized | 0.197 " | 0.728 in | 18.5 mm | 5 mm | Through Hole |
 Panasonic Electronic Components | General Purpose | -40 C | 105 ░C | Radial | PC Pins | 11 mm | 0.433 in | 400 V | 0.12 µF | 5 % | 15 mm | 0.591 in | Polyester Metallized | 0.197 " | 0.728 in | 18.5 mm | 5 mm | Through Hole |
