G3B25AB Series

Catalog

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Switch Function	Mounting Type	Voltage Rating - AC	Features	Termination Style	Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Actuator Marking
NKK Switches G3B25AB-XB	50000 Cycles	50000 Cycles	White	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 ░C	28 V	Button Round	0.4 VA	No Marking

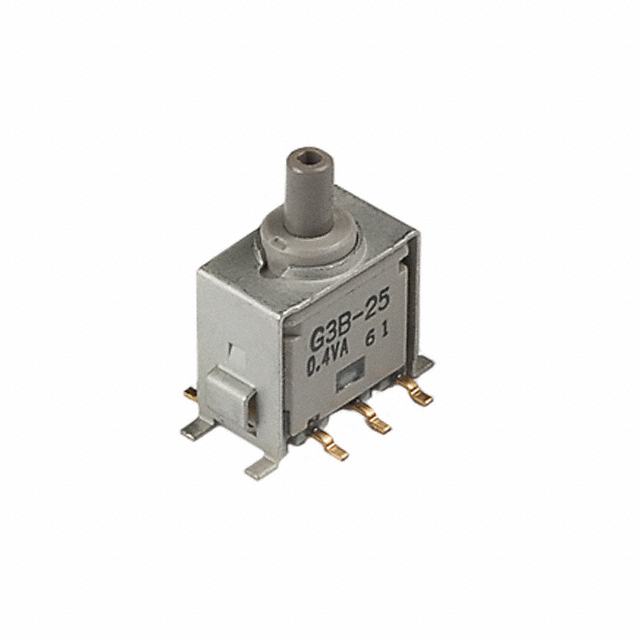

NKK Switches G3B25AB-S	50000 Cycles	50000 Cycles		On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 ░C	28 V	Plunger Round	0.4 VA	No Marking
NKK Switches G3B25AB-XA	50000 Cycles	50000 Cycles	Black	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 ░C	28 V	Button Round	0.4 VA	No Marking

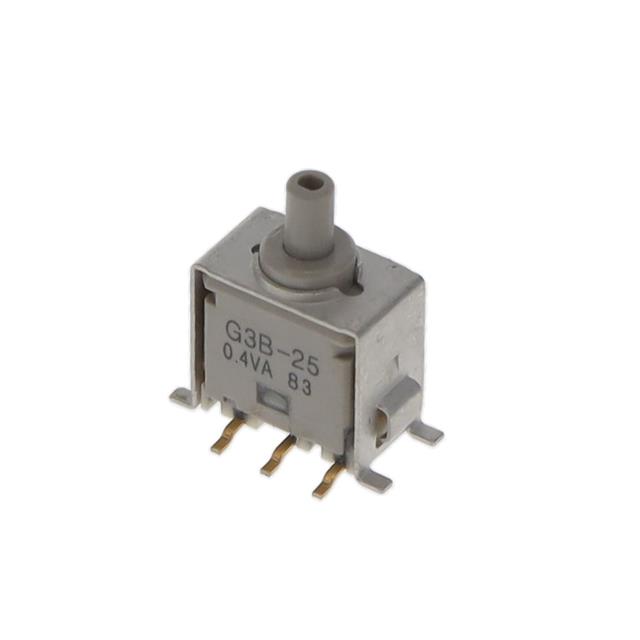

NKK Switches G3B25AB-S-XC	50000 Cycles	50000 Cycles	Red	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 ░C	28 V	Button Round	0.4 VA	No Marking

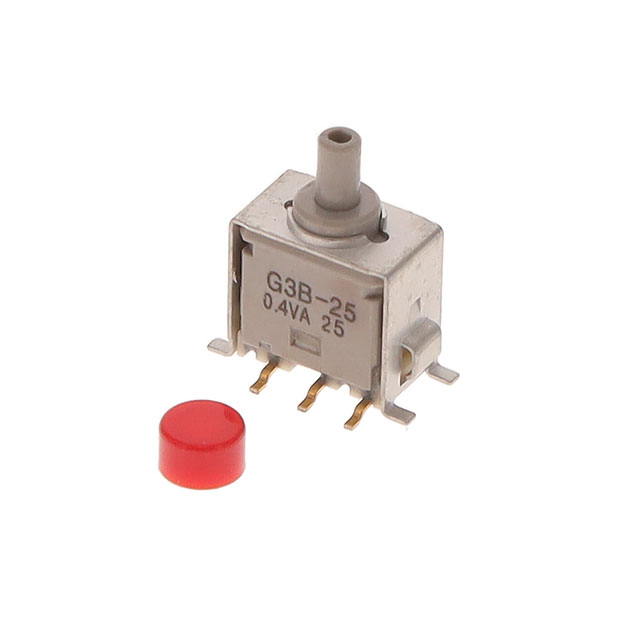

NKK Switches G3B25AB-XC	50000 Cycles	50000 Cycles	Red	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 ░C	28 V	Button Round	0.4 VA	No Marking

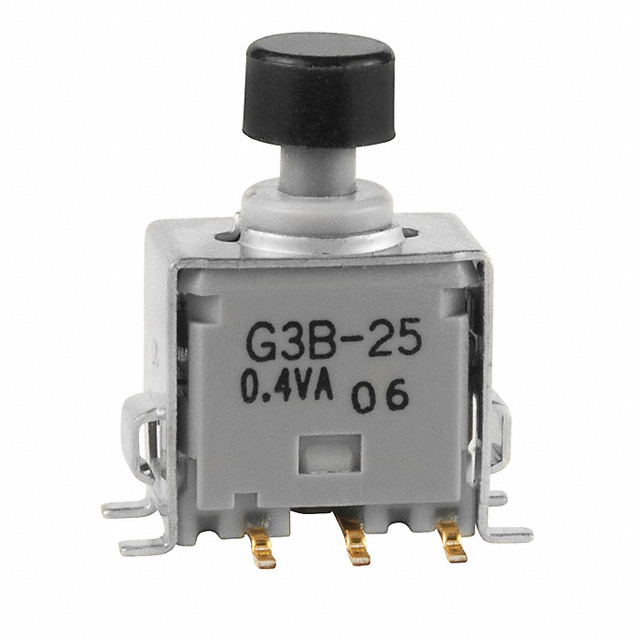

NKK Switches G3B25AB-S-YA	50000 Cycles	50000 Cycles	Black	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 ░C	28 V	Button Round	0.4 VA	No Marking
