DS13-10 Series

Catalog

SSR RELAY 2A 0-18V

Part	Package / Case [custom]	Package / Case [x]	Package / Case [x]	Package / Case	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Supplier Device Package	On-State Resistance (Max) [Max]	Termination Style	Voltage - Load [Max]

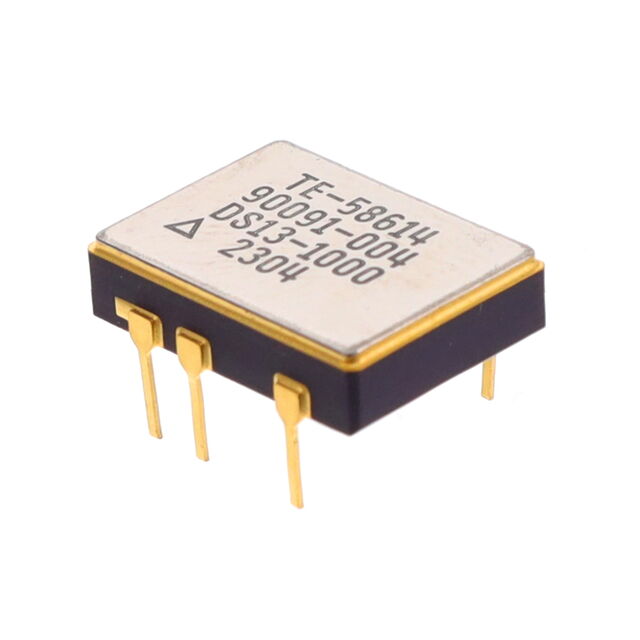

TE Connectivity Aerospace, Defense and Marine DS13-1000	6	0.4 in	10.16 mm	8-DIP	Through Hole	32 V	3.8 V	DC	105 ░C	-55 °C	2 A	6-DIP	450 mOhm	PC Pin	18 V
TE Connectivity Aerospace, Defense and Marine DS13-1000S	6	0.4 in	10.16 mm	8-DIP	Through Hole	32 V	3.8 V	DC	105 ░C	-55 °C	2 A	6-DIP	450 mOhm	PC Pin	18 V
TE Connectivity Aerospace, Defense and Marine DS13-1001				Module	Through Hole	32 V	3.8 V	DC	105 ░C	-55 °C	2 A		450 mOhm	PC Pin	18 V
TE Connectivity Aerospace, Defense and Marine DS13-1002	6	0.4 in	10.16 mm	8-DIP	Through Hole	32 V	3.8 V	DC	105 ░C	-55 °C	2 A	6-DIP	450 mOhm	PC Pin	18 V
