ESA20 Series
Manufacturer: TE Intercontec
Beta
⌘K

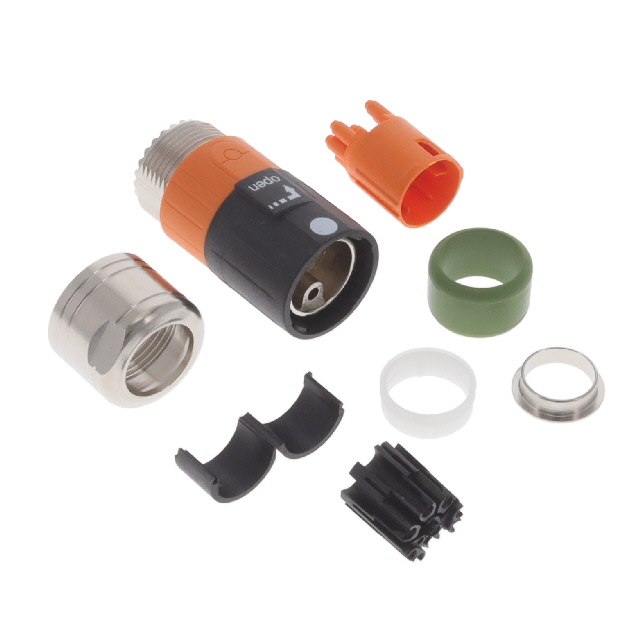

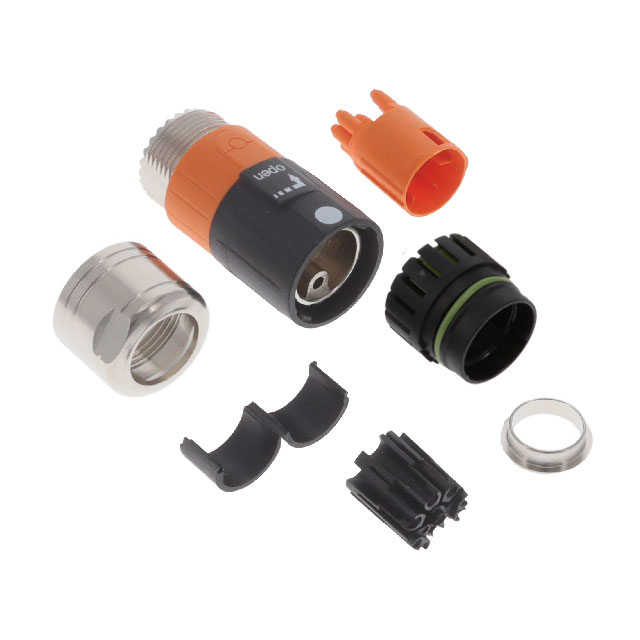

CONN PLG HSG FMALE 15POS INLINE
| Part | Type | Contact Shape | Shell Material | Fastening Type | Shielding | Number of Positions | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Orientation | Features | Ingress Protection | Includes | Material Flammability Rating | Connector Type | Insert Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | For Female Sockets | Circular | Zinc Die Cast | Push-Twist | Shielded | 15 | Free Hanging (In-Line) | -20 ░C | 130 °C | Black Silver | Keyed | Backshell Cable Clamp Coupling Nut | IP66 IP67 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Plug Housing | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Contacts Not Included |
TE Intercontec | For Female Sockets | Circular | Zinc Die Cast | Push-Twist | Shielded | 9 | Free Hanging (In-Line) | -20 ░C | 130 °C | Black Silver | Keyed | Backshell Cable Clamp Coupling Nut | IP66 IP67 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Plug Housing | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Contacts Not Included |
TE Intercontec | For Female Sockets | Circular | Zinc Die Cast | Push-Twist | Shielded | 15 | Free Hanging (In-Line) | -20 ░C | 130 °C | Black Silver | Keyed | Backshell Cable Clamp Coupling Nut | IP66 IP67 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Plug Housing | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Contacts Not Included |
 TE Intercontec | For Female Sockets | Circular | Zinc Die Cast | Push-Twist | Shielded | 9 | Free Hanging (In-Line) | -20 ░C | 130 °C | Black Silver | Keyed | Backshell Cable Clamp Coupling Nut | IP66 IP67 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Plug Housing | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Contacts Not Included |
TE Intercontec | For Female Sockets | Circular | Zinc Die Cast | Push-Twist | Shielded | 9 | Free Hanging (In-Line) | -20 ░C | 130 °C | Black Silver | Keyed | Backshell Cable Clamp Coupling Nut | IP66 IP67 | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | UL94 V-0 | Plug Housing | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Contacts Not Included |
