CDFV13W Series
Manufacturer: NorComp Inc.
Beta
⌘K

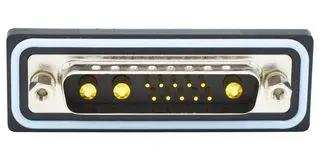

D-SUB MIXED CONTACT CONNECTORS 13W3 VERT SOLDR M FL 4-40 INT THRD 40 AMP
| Part | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mounting Type | Connector Style | Shell Material, Finish | Number of Rows [custom] | Termination | Contact Finish | Ingress Protection | Features | Contact Type | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Flange Feature | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Grounding Indents | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | Flash | 4-40 Mating Side Female Screwlock | 10 | 3 | Plug Male Pins | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock Grounding Indents | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Plug Male Pins | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Grounding Indents | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Plug Male Pins | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock Grounding Indents | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Plug Male Pins | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | Flash | 4-40 Mating Side Female Screwlock | 10 | 3 | Receptacle Female Sockets | ||
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | 4-40 Mating Side Female Screwlock | 10 | 3 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | |
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Combo D-Sub | Nickel Plated Steel | 2 | Solder | Gold | IP67 - Dust Tight Waterproof | Signal and Power | UL94 V-0 | 3 | 13C3 13W3 | Flash | 4-40 Mating Side Female Screwlock | 10 | 3 | Receptacle Female Sockets |
