SPTA Series

Catalog

WIRE-TO-BOARD TERMINAL BLOCK, 5 MM, 3 POSITIONS, 24 AWG, 16 AWG, 1 MM², PUSH IN

Part	Housing Material	Current	Wire Termination	Mounting Type	Pitch	Pitch	Voltage	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Color	Mating Orientation [custom]	Mating Orientation [custom]	Number of Levels	Mating Orientation	Mating Orientation
Phoenix Contact 1752227	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.197 in	5 mm	300 VDC	26 AWG	16 AWG	3	Green	155 °	25 °	1
Phoenix Contact 1752243		10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.197 in	5 mm	300 VDC	26 AWG	16 AWG	5	Green	155 °	25 °	1

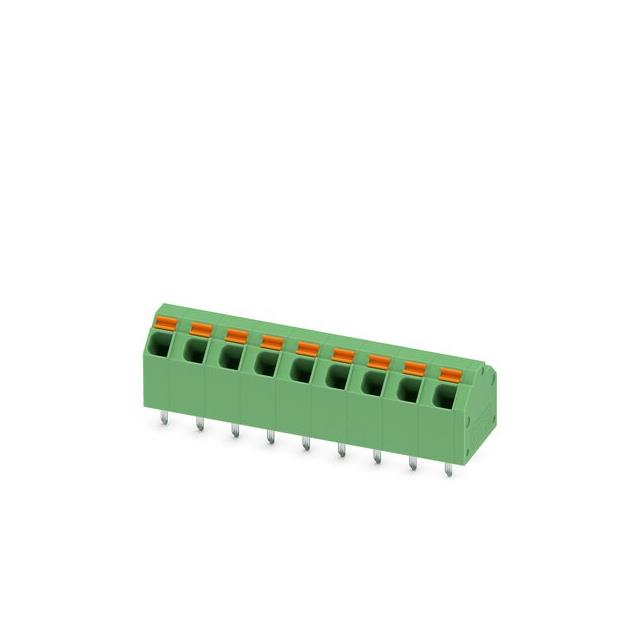

Phoenix Contact 1751231	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.2 in	5.08 mm	300 VDC	26 AWG	16 AWG	9	Green			1	135 °	45 °

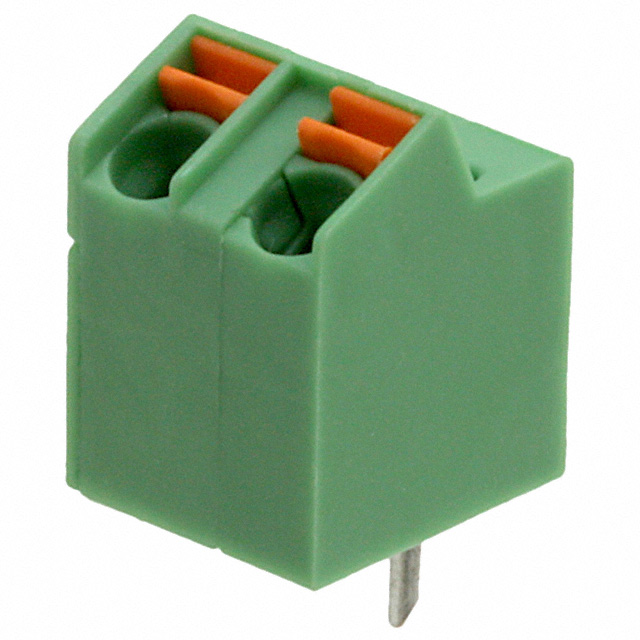

Phoenix Contact 1752214	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.197 in	5 mm	300 VDC	26 AWG	16 AWG	2	Green	155 °	25 °	1
Phoenix Contact 1751477		10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.15 in	3.81 mm	300 VDC	26 AWG	16 AWG	2	Green			1	135 °	45 °
Phoenix Contact 1752191	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.138 "	3.5 mm	300 VDC	26 AWG	16 AWG	11	Green	155 °	25 °	1

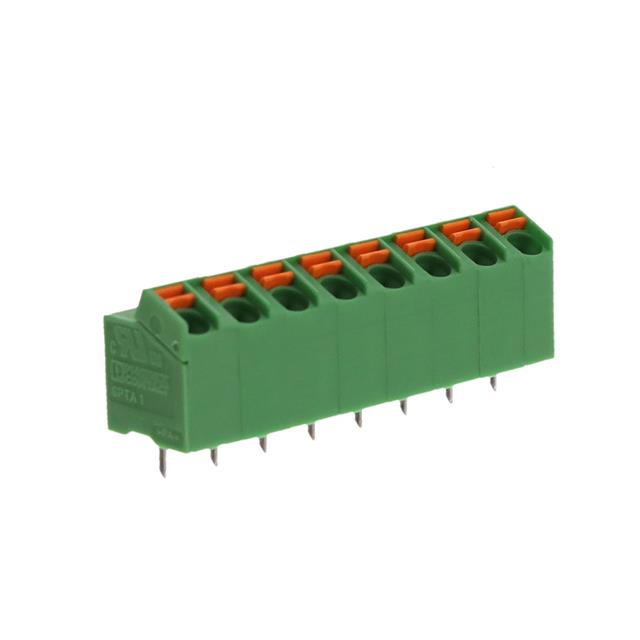

Phoenix Contact 1752272	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.197 in	5 mm	300 VDC	26 AWG	16 AWG	8	Green	155 °	25 °	1

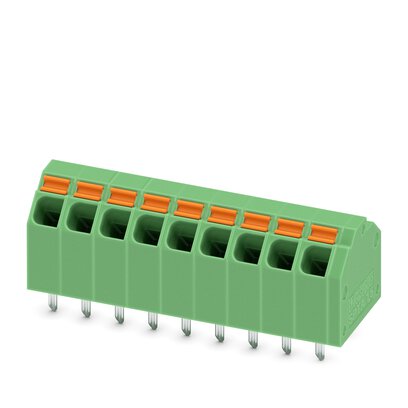

Phoenix Contact 1751532	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.15 in	3.81 mm	300 VDC	26 AWG	16 AWG	9	Green			1	135 °	45 °

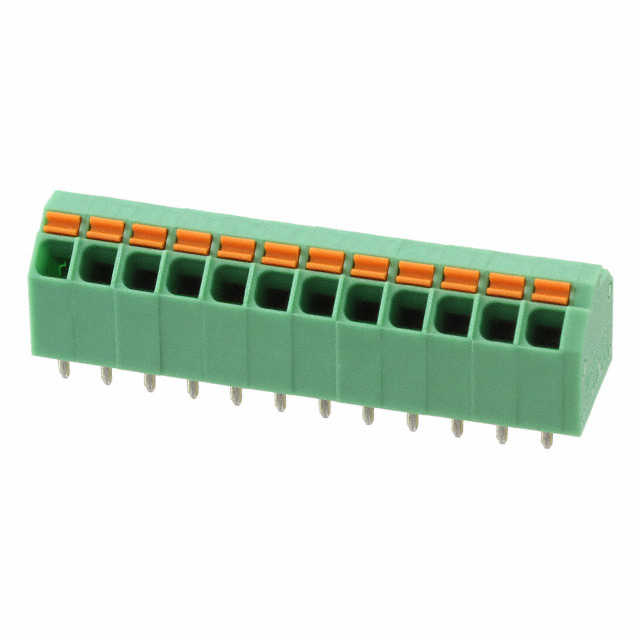

Phoenix Contact 1751558	Polyamide (PA) Nylon	10 A	Screwless - Spring Cage Tension Clamp	Through Hole	0.15 in	3.81 mm	300 VDC	26 AWG	16 AWG	12	Green			1	135 °	45 °
