H5CN-Y Series

Catalog

RELAY TIME DELAY 99H 59M 3A 250V

Part	Timing Initiate Method	Timing Adjustment Method	Relay Type	Delay Time [Min]	Delay Time [Max]	Contact Rating @ Voltage	Termination Style	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Delay Time [Max]
Omron Electronics Inc-EMC Div H5CN-YDN AC100-240	Input Voltage	Up/Down Digit Keys	Mechanical Relay	1 Min	99 Hrs 59 Min	3 A 250 VAC	Plug In 8 Pin (Octal)	Socketable	100 VAC	240 VAC	On-Delay

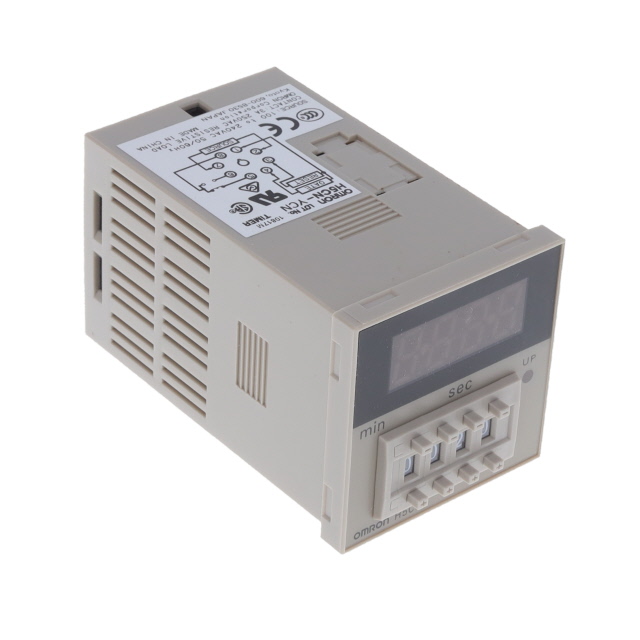

Omron Electronics Inc-EMC Div H5CN-YCN AC100-240	Input Voltage	Up/Down Digit Keys	Mechanical Relay	1 Sec	99 Min 59 Sec	3 A 250 VAC	Plug In 8 Pin (Octal)	Socketable	100 VAC	240 VAC	On-Delay
Omron Electronics Inc-EMC Div H5CN-YDN DC12-48	Input Voltage	Up/Down Digit Keys	Mechanical Relay	1 Min	99 Hrs 59 Min	3 A 250 VAC	Plug In 8 Pin (Octal)	Socketable	12 V	48 V	On-Delay
Omron Electronics Inc-EMC Div H5CN-YBN DC12-48	Input Voltage	Up/Down Digit Keys	Mechanical Relay	0.001 Sec		3 A 250 VAC	Plug In 8 Pin (Octal)	Socketable	12 V	48 V	On-Delay	99.99 Sec
Omron Electronics Inc-EMC Div H5CN-YBN AC100-240	Input Voltage	Up/Down Digit Keys	Mechanical Relay	0.001 Sec		3 A 250 VAC	Plug In 8 Pin (Octal)	Socketable	100 VAC	240 VAC	On-Delay	99.99 Sec
