098268 Series
Manufacturer: Molex
Catalog

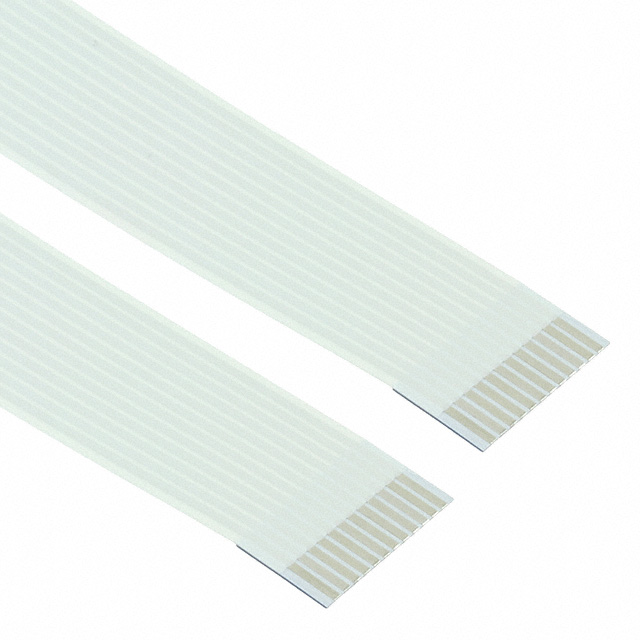

CABLE FFC 15POS 1.25MM 4"
...
| Part | Number of Conductors | Pitch [x] | Pitch [x] | Cable Type | Termination Style | Length - Exposed Ends [x] | Length - Exposed Ends [x] | Length | Length | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 15 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 4 in | 101.6 mm | |
Molex | 5 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 8 in | 203.2 mm | |
Molex | 40 | 0.049 in | 1.25 mm | FFC FPC | Backers on Both Sides Top on Both Sides | 4 mm | 0.157 in | 1.18 in | 29.97 mm | |
Molex | 26 | 0.049 in | 1.25 mm | FFC FPC | Backers on Both Sides Top on Both Sides | 4 mm | 0.157 in | 2 in | 50.8 mm | |
Molex | 20 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 6 in | 152.4 mm | |
 Molex | 26 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 4 in | 101.6 mm | |
 Molex | 12 | 0.049 in | 1.25 mm | FFC FPC | Backers on Both Sides Top on Both Sides | 4 mm | 0.157 in | 254 mm | 10 in | |
Molex | 28 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 4 in | 101.6 mm | |
Molex | 31 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 5 in | 127 mm | |
Molex | 5 | 0.049 in | 1.25 mm | FFC FPC | Top on One Side Bottom on Other Backers on Both Sides | 4 mm | 0.157 in | 6 in | 152.4 mm |
