MAX14661 Series

Catalog

EVKIT FOR BEYOND-THE-RAILS 16:2

Part	Contents	Platform	Utilized IC / Part	Function	Type	Number of Circuits	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit [custom]	Multiplexer/Demultiplexer Circuit [custom]	Supplier Device Package	-3db Bandwidth	Package / Case	On-State Resistance (Max) [Max]	Crosstalk	Mounting Type	Channel-to-Channel Matching (ΔRon)

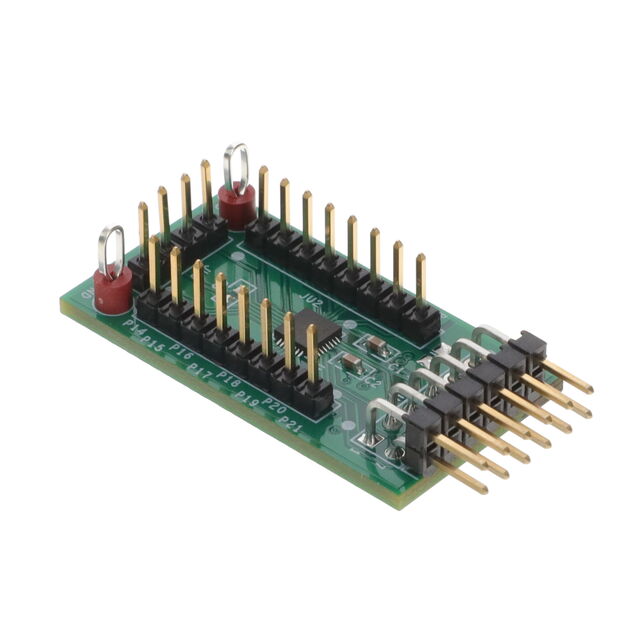

Analog Devices Inc./Maxim Integrated MAX14661PMB1#	Board(s) Header(s)	Pmod™	MAX14661	Multiplexer (MUX)	Interface
Analog Devices Inc./Maxim Integrated MAX14661ETI+T						1	13 µs	5 µs	85 °C	-40 °C	5.5 V	1.6 V	50 nA	16	2	28-TQFN (4x4)	60 MHz	28-WFQFN Exposed Pad	8 Ohm	-80 dB	Surface Mount	250 mOhm
Analog Devices Inc./Maxim Integrated MAX14661ETI+						1	13 µs	5 µs	85 °C	-40 °C	5.5 V	1.6 V	50 nA	16	2	28-TQFN (4x4)	60 MHz	28-WFQFN Exposed Pad	8 Ohm	-80 dB	Surface Mount	250 mOhm
