167495 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
RFI SHLD FINGER SOLDER
| Part | Height [z] | Height [z] | Width [x] | Width [x] | Length | Length [x] | Attachment Method | Type | Style | Material - Insulation | Contact Finish | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Type | Number of Positions | Pitch [x] | Pitch [x] | Number of Positions Loaded | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

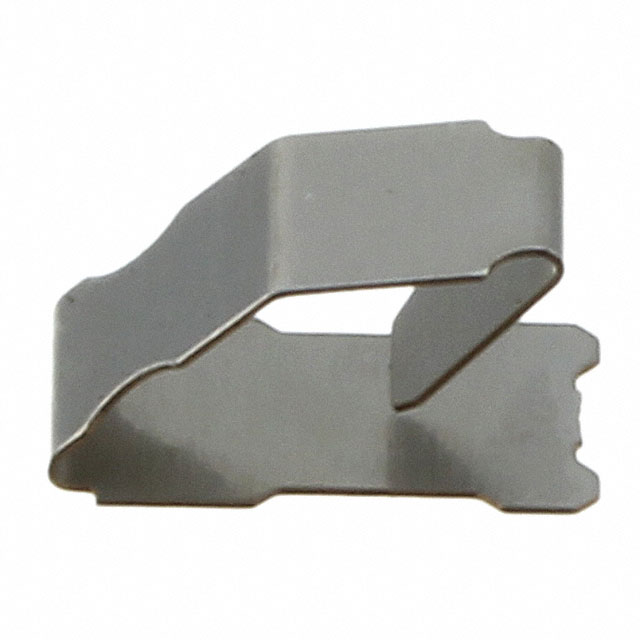

 TE Connectivity Raychem Cable Protection | 2 mm | 0.079 in | 0.102 in | 2.6 mm | 4.5 mm | 0.177 in | Solder | Shield Finger | ||||||||||||||||

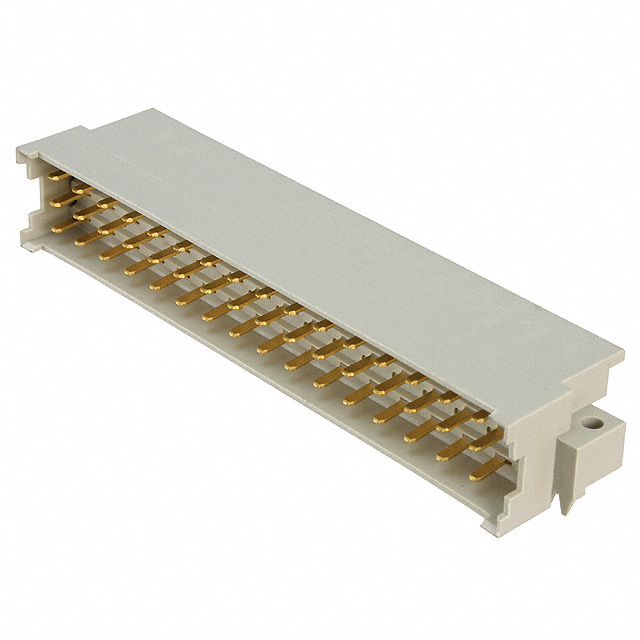

 TE Connectivity Raychem Cable Protection | F | Polyester Thermoplastic | Gold | 3 | Solder | 31.5 µin | 0.8 µm | UL94 V-0 | Male Pins Plug | 48 | 0.2 in | 5.08 mm | All | Through Hole Right Angle | -55 °C | 125 °C |
