629W13W Series
Manufacturer: EDAC Inc.
Beta
⌘K

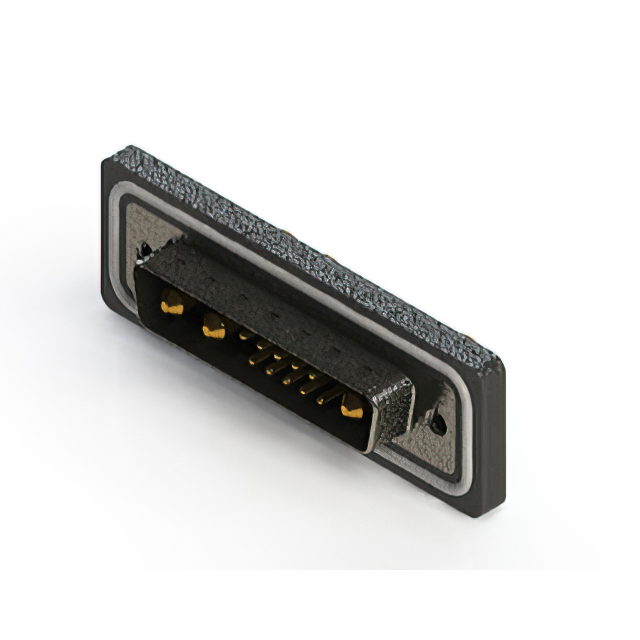

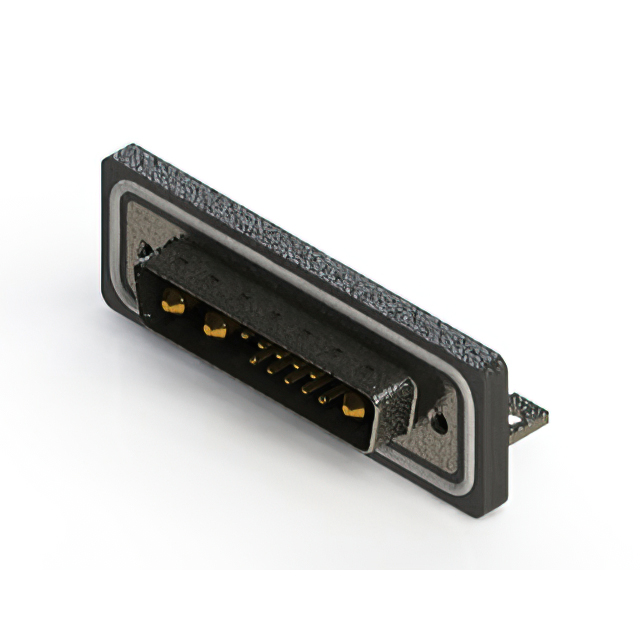

CONN D-SUB PLUG 13POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Voltage Rating | Mounting Type | Connector Style | Termination | Features | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Type | Number of Rows [custom] | Material Flammability Rating | Ingress Protection | Contact Finish | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Mounting Brackets Shielded | 10A 5A | Nickel Plated Steel | 5 µin | 0.127 µm | Housing/Shell | 4-40 | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 15 µin | 0.38 µm | Housing/Shell | 4-40 | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | 5 A 40 A | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Shielded | 20A 5A | Nickel Plated Steel | 15 µin | 0.38 µm | Housing/Shell (M3) | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Mounting Brackets Shielded | 20A 5A | Nickel Plated Steel | 5 µin | 0.127 µm | Housing/Shell (M3) | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 5 µin | 0.127 µm | Housing/Shell | 4-40 | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | 5 A 40 A | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Shielded | Nickel Plated Steel | 5 µin | 0.127 µm | Housing/Shell (M3) | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | 5 A 40 A | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Mounting Brackets Shielded | 20A 5A | Nickel Plated Steel | 30 Áin | 0.76 Ám | Housing/Shell | 4-40 | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Mounting Brackets Shielded | 20A 5A | Nickel Plated Steel | Housing/Shell (M3) | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | Flash | ||||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 | 5 A 40 A | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Panel Mount Right Angle Through Hole | Combo D-Sub | Solder | Grounding Indents Mounting Brackets Shielded | 20A 5A | Nickel Plated Steel | 15 µin | 0.38 µm | Housing/Shell | 4-40 | 3 | 13C3 13W3 | Signal and Power | 2 | UL94 V-0 | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins | 10 | 3 |
