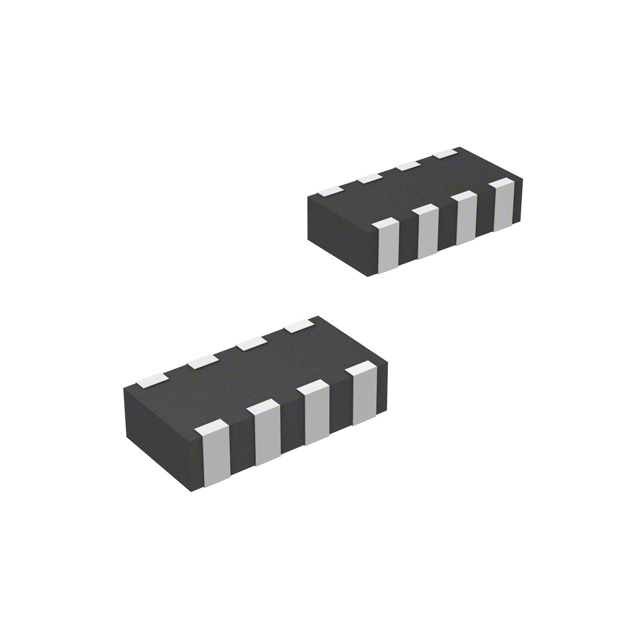

MA3216 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FERRITE BEAD 1 KOHM 1206 4LN
| Part | Package / Case | Number of Lines | DC Resistance (DCR) (Max) [Max] | Current Rating (Max) | Impedance @ Frequency | Height (Max) [z] | Height (Max) [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1206 (3216 Metric) 8 PC Pad Array | 4 | 800 mOhm | 50 mA | 1 kOhms | 0.9 mm | 0.035 in | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Surface Mount | -55 C | 125 °C | |
Bourns Inc. | 1206 (3216 Metric) 8 PC Pad Array | 4 | 500 mOhm | 600 Ohms | 0.9 mm | 0.035 in | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Surface Mount | -55 C | 125 °C | 100 mA | |
Bourns Inc. | 1206 (3216 Metric) 8 PC Pad Array | 4 | 800 mOhm | 1 kOhms | 0.9 mm | 0.035 in | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Surface Mount | -55 C | 125 °C | 100 mA |
