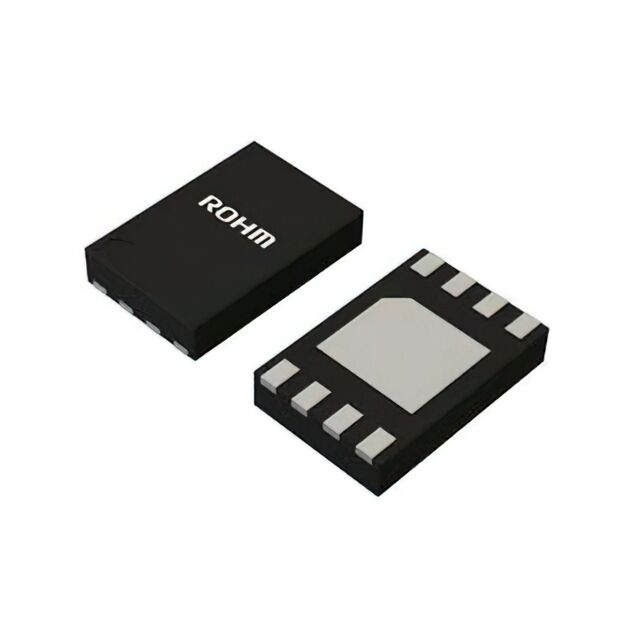

BR25H02ANUX-5AC Series
2KBit, SPI BUS, Serial EEPROM for Automotive (125℃ Operation)
Manufacturer: Rohm Semiconductor
Catalog
2KBit, SPI BUS, Serial EEPROM for Automotive (125℃ Operation)
| Part | Memory Size | Mounting Type | Memory Interface | Supplier Device Package | Memory Format | Package / Case | Clock Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Memory Organization [custom] | Memory Organization [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Type | Technology | Write Cycle Time - Word, Page | Package / Case | Package / Case | Grade | Qualification | Package / Case [y] | Package / Case [x] | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 256 B | Surface Mount | SPI | VSON08AX2030 | EEPROM | 8-UFDFN Exposed Pad | 20 MHz | -40 °C | 125 °C | 8 | 256 | 5.5 V | 1.7 V | Non-Volatile | EEPROM | 3.5 ms | ||||||||
 Rohm Semiconductor | 256 B | Surface Mount | SPI | 8-SOP | EEPROM | 8-SOIC | 10 MHz | -40 °C | 125 °C | 8 | 256 | 5.5 V | 2.5 V | Non-Volatile | EEPROM | 4 ms | 0.173 in | 4.4 mm | ||||||
Rohm Semiconductor | 256 B | Surface Mount | SPI | 8-SOP | EEPROM | 8-SOIC | 10 MHz | -40 °C | 125 °C | 8 | 256 | 5.5 V | 2.5 V | Non-Volatile | EEPROM | 4 ms | 0.173 in | 4.4 mm | Automotive | AEC-Q100 | ||||
 Rohm Semiconductor | 256 B | Surface Mount | SPI | 8-MSOP | EEPROM | 8-MSOP 8-VSSOP | 10 MHz | -40 °C | 125 °C | 8 | 256 | 5.5 V | 2.5 V | Non-Volatile | EEPROM | 4 ms | Automotive | AEC-Q100 | ||||||
 Rohm Semiconductor | 256 B | Surface Mount | SPI | 8-SOP-J | EEPROM | 8-SOIC | 10 MHz | -40 °C | 125 °C | 8 | 256 | 5.5 V | 2.5 V | Non-Volatile | EEPROM | 4 ms | Automotive | AEC-Q100 | 3.9 mm | 0.154 in | ||||
 Rohm Semiconductor | 256 B | Surface Mount | SPI | 8-TSSOP-B | EEPROM | 8-TSSOP | 10 MHz | -40 °C | 125 °C | 8 | 256 | 5.5 V | 2.5 V | Non-Volatile | EEPROM | 4 ms | Automotive | AEC-Q100 | 0.173 " | 4.4 mm |
Key Features
• AEC-Q100 Qualified(Grade 1), Functional Safety Supportive Automotive Products, SPI BUS Mode (CPOL, CPHA) = (0, 0), (1, 1), Page Size: 16Byte, Bit Format: 256 x 8bit, 16Byte Write Lockable Identification Page (ID Page), Address Auto Increment Function at Read Operation, Auto Erase and Auto End Function at Data Rewrite, Write Protect Block Setting by SoftwareMemory Array 1/4, 1/2, Whole, HOLD Function by the HOLDB Pin, Prevention of Write MistakeWrite Prohibition at Power OnWrite Prohibition by the WPB PinWrite Prohibition Block SettingPrevention of Write Mistake at Low Voltage, Data at ShipmentMemory Array: FFhID PageFirst 3 Addresses: 2Fh, 00h, 08hOther Addresses: FFhStatus Register BP1, BP0: 0, 0Lock Status LS: 0
Description
AI
BR25H020xxx-5AC Series is a 2Kbit serial EEPROM of SPI BUS Interface.
