B72210P Series

Catalog

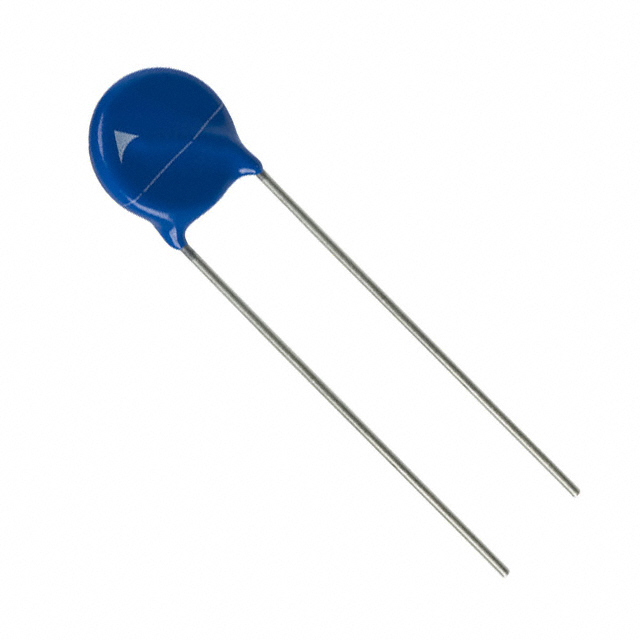

VARISTOR 750V 3.5KA DISC 10MM

Part	Maximum DC Volts [Max]	Energy	Operating Temperature [Min]	Operating Temperature [Max]	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Number of Circuits	Current - Surge	Varistor Voltage (Typ)	Mounting Type	Capacitance @ Frequency	Varistor Voltage (Max) [Max]	Package / Case	Varistor Voltage (Max)
EPCOS - TDK Electronics B72210P2461K101	615 V	92 J	-40 °C	105 °C	460 V	675 V	1	3.5 kA	750 V	Through Hole	1 kHz 190 pF	825 V	Disc 10mm
EPCOS - TDK Electronics B72210P2681K101	895 V	115 J	-40 °C	105 °C	680 V	990 V	1	3.5 kA	1.1 kV	Through Hole	135 pF	1210 V	Disc 10mm
EPCOS - TDK Electronics B72210P2621K101	825 V	105 J	-40 °C	105 °C	625 V	900 V	1	3.5 kA	1000 V	Through Hole	150 pF	1.1 kV	Disc 10mm
EPCOS - TDK Electronics B72210P2271K101	350 V	60 J	-45 °C	105 ¯C	275 V	387 V	1	3.5 kA	430 V	Through Hole	1 kHz 500 pF		Disc 10mm	473 V
EPCOS - TDK Electronics B72210P2171K101	225 V	40 J	-45 °C	105 ¯C	175 V	243 V	1	3.5 kA	270 V	Through Hole	1 kHz 500 pF	297 V	Disc 10mm
EPCOS - TDK Electronics B72210P2511K101	670 V	92 J	-40 °C	105 °C	510 V	738 V	1	3.5 kA	820 V	Through Hole	180 pF	902 V	Disc 10mm
EPCOS - TDK Electronics B72210P2551K101	745 V		-40 °C	105 °C	550 V	819 V	1	3.5 kA	910 V	Through Hole	1 kHz 160 pF	1.001 kV	Disc 10mm
