TMSTBP Series

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Plug 24-12 AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Plug 24-12 AWG Screw

Catalog

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Strip Length	Screw Size	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Plug Wire Entry	Voltage - IEC	Contact Mating Finish	Current - IEC	Termination Style	Color	Number of Positions	Positions Per Level [custom]	Positions Per Level [custom]	Pitch	Pitch	Mounting Type	Number of Levels [custom]	Number of Levels [custom]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Material Flammability Rating	Housing Material	Voltage - UL
Phoenix Contact 1720217	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	1.138 in	28.9 mm	2.5 mm˛	0.2 mm˛	180 °	250 V	Tin	12 A	Screw - Rising Cage Clamp	Black	4	8	4	5.08 mm	0.2 in	Free Hanging (In-Line)	1	2	Plug Female Sockets	30 AWG	12 AWG	Mating Flange	2.5 mm²	0.2 mm²

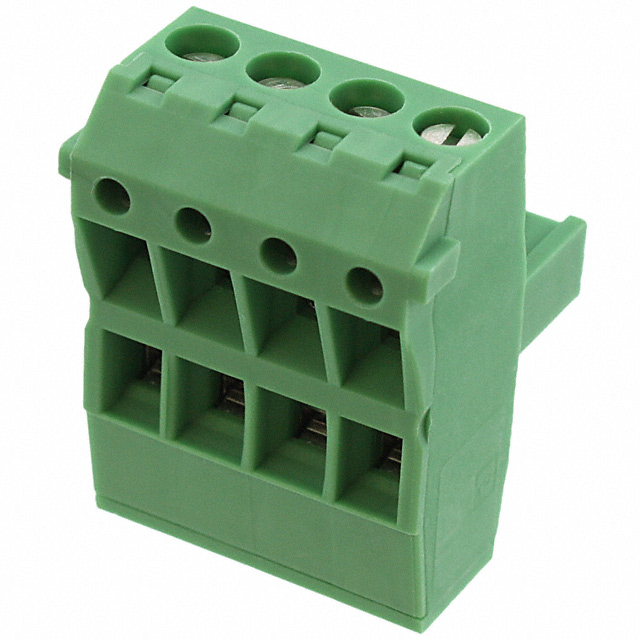

Phoenix Contact 1853036	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	1.138 in	28.9 mm	2.5 mm˛	0.2 mm˛	180 °	630 V	Tin	12 A	Screw - Rising Cage Clamp	Green	4	8	4	5.08 mm	0.2 in	Free Hanging (In-Line)	1	2	Plug Female Sockets	30 AWG	12 AWG		2.5 mm²	0.2 mm²	UL94 V-0	Polyamide (PA) Nylon	300 V

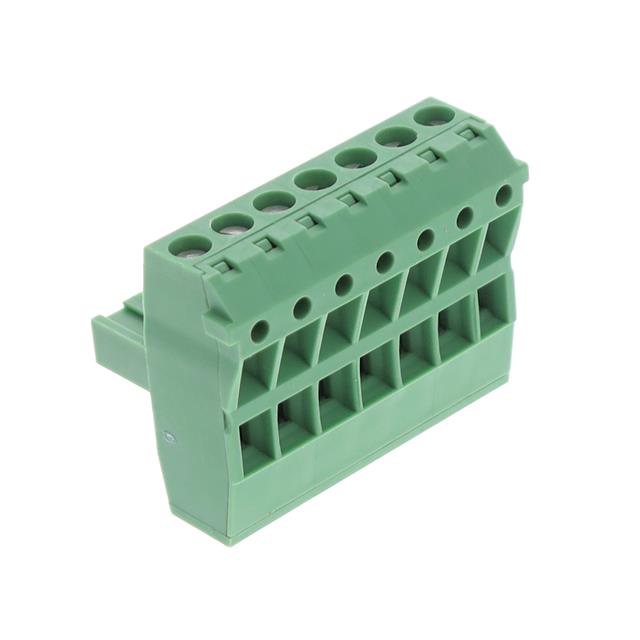

Phoenix Contact 1853065	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	1.138 in	28.9 mm			180 °	630 V	Tin	12 A	Screw - Rising Cage Clamp	Green	7	14	7	5.08 mm	0.2 in	Free Hanging (In-Line)	1	2	Plug Female Sockets	30 AWG	12 AWG		2.5 mm²	0.2 mm²	UL94 V-0	Polyamide (PA) Nylon	300 V
Phoenix Contact 1712348	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	1.138 in	28.9 mm			180 °	250 V	Tin	12 A	Screw - Rising Cage Clamp	Black	4	8	4	5.08 mm	0.2 in	Free Hanging (In-Line)	1	2	Plug Female Sockets	30 AWG	12 AWG	Mating Flange	2.5 mm²	0.2 mm²	UL94 V-0

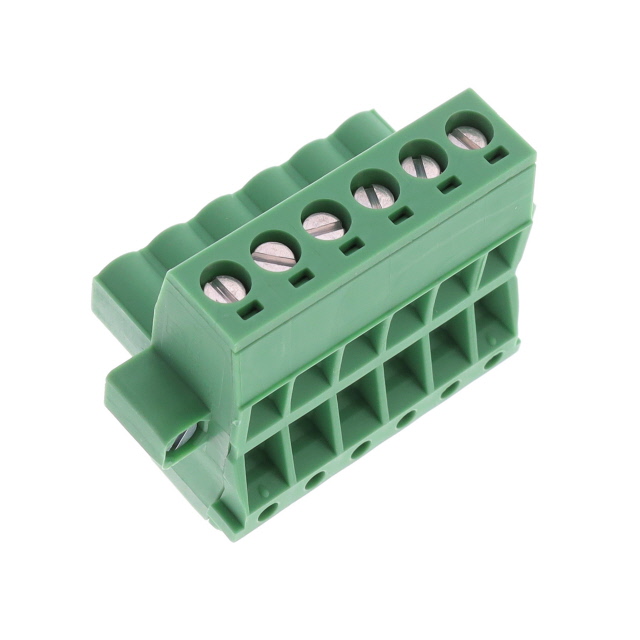

Phoenix Contact 1853146	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	1.138 in	28.9 mm			180 °	630 V	Tin	12 A	Screw - Rising Cage Clamp	Green	6	12	6	5.08 mm	0.2 in	Free Hanging (In-Line)	1	2	Plug Female Sockets	30 AWG	12 AWG	Mating Flange	2.5 mm²	0.2 mm²	UL94 V-0	Polyamide (PA) Nylon	300 V
