LM137QML Series

Extended Temperature 1.5A Adjustable Output Negative Voltage Regulator / LDO

Catalog

Extended Temperature 1.5A Adjustable Output Negative Voltage Regulator / LDO

Part	Current - Output	Voltage - Output (Max) [Max]	Number of Regulators	Mounting Type	Output Type	Package / Case	Voltage - Input (Max) [Max]	Protection Features	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Output (Min/Fixed)	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
Texas Instruments LM137H/NOPB	1.5 A	-37 V	1	Through Hole	Adjustable	TO-205AD TO-39-3 Metal Can	-40 V	Over Current Over Temperature Short Circuit	-55 °C	150 °C	Negative	-1.2 V	66 dB

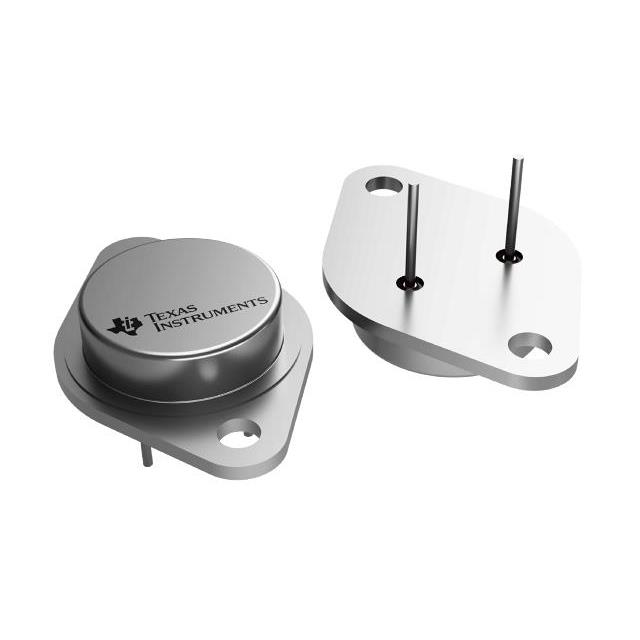

Texas Instruments LM137KG-MW8	1.5 A	-37 V	1	Surface Mount	Adjustable	Die	-41.25 V	Over Current Over Temperature			Negative	-1.2 V	66 dB	125 °C	-55 °C	Wafersale
Texas Instruments LM137H	1.5 A	-37 V	1	Through Hole	Adjustable	TO-205AD TO-39-3 Metal Can	-40 V	Over Current Over Temperature Short Circuit	-55 °C	150 °C	Negative	-1.2 V	66 dB

Catalog

Extended Temperature 1.5A Adjustable Output Negative Voltage Regulator / LDO

Key Features

• SMD 5962-99517Available TID Qualified to 30 krad(Si)Output Voltage Adjustable from −37 V to −1.2 V1.5A Output Current Specified, −55°C to +150°CLine Regulation Typically 0.01%/VLoad Regulation Typically 0.3%Excellent Thermal Regulation, 0.002%/W77 dB Ripple RejectionExcellent Rejection of Thermal Transients50 ppm/°C Temperature CoefficientTemperature-independent Current LimitInternal Thermal Overload ProtectionStandard 3-lead Transistor PackageOutput is Short Circuit ProtectedSMD 5962-99517Available TID Qualified to 30 krad(Si)Output Voltage Adjustable from −37 V to −1.2 V1.5A Output Current Specified, −55°C to +150°CLine Regulation Typically 0.01%/VLoad Regulation Typically 0.3%Excellent Thermal Regulation, 0.002%/W77 dB Ripple RejectionExcellent Rejection of Thermal Transients50 ppm/°C Temperature CoefficientTemperature-independent Current LimitInternal Thermal Overload ProtectionStandard 3-lead Transistor PackageOutput is Short Circuit Protected

Description

The LM137 are adjustable 3-terminal negative voltage regulators capable of supplying in excess of 1.5 A over an output voltage range of −37 V to −1.2 V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads. The LM137 serve a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM137 are ideal complements to the LM117 adjustable positive regulators. The LM137 are adjustable 3-terminal negative voltage regulators capable of supplying in excess of 1.5 A over an output voltage range of −37 V to −1.2 V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads. The LM137 serve a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM137 are ideal complements to the LM117 adjustable positive regulators.
