TMX570 Series

Catalog

MCU 16-BIT/32-BIT ARM CORTEX R4F RISC 3MB FLASH 1.2V/3.3V AUTOMOTIVE AEC-Q100 144-PIN LQFP TRAY

Part	Core Processor	Oscillator Type	Mounting Type	Speed	Program Memory Size	Peripherals	Connectivity	Qualification	RAM Size	Supplier Device Package	Program Memory Type	Operating Temperature [Min]	Operating Temperature [Max]	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Grade	Package / Case	Core Size [Min]	Core Size [Max]	Number of I/O	EEPROM Size	Core Size [custom]	Package / Case [y]	Package / Case [x]	Data Converters
Texas Instruments TMX5703137APGEQQ1	ARM® Cortex®-R4F	External	Surface Mount	160 MHz	3 MB	DMA POR PWM WDT	CANbus EBI/EMI Ethernet FlexRay I2C LINbus MibSPI SCI SPI UART/USART	AEC-Q100	256 K	144-LQFP (20x20)	FLASH	-40 °C	125 °C	12	24	3.6 V	1.14 V	Automotive	144-LQFP	16 Bit	32 Bit	58	64 K
Texas Instruments TMX5700232APZQQ1	ARM® Cortex®-R4	External	Surface Mount	80 MHz	128 KB	POR WDT	CANbus LINbus MibSPI SCI SPI UART/USART	AEC-Q100		100-LQFP (14x14)	FLASH	-40 °C	125 °C	12 b	16	3.6 V	1.14 V	Automotive	100-LQFP	16 Bit	32 Bit	45	16 K

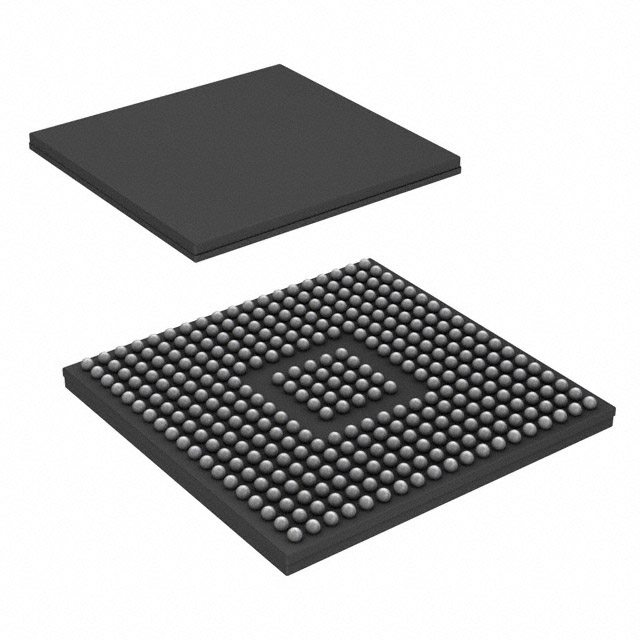

Texas Instruments TMX5700714ZWTQQ1	ARM® Cortex®-R4F	External	Surface Mount	180 MHz	768 KB	DMA POR PWM WDT	CANbus I2C LINbus MibSPI SCI SPI UART/USART	AEC-Q100	128 K	337-NFBGA (16x16)	FLASH	-40 °C	125 °C	12	24	3.6 V	1.14 V	Automotive	337-LFBGA			101	64 K	32-Bit Dual-Core

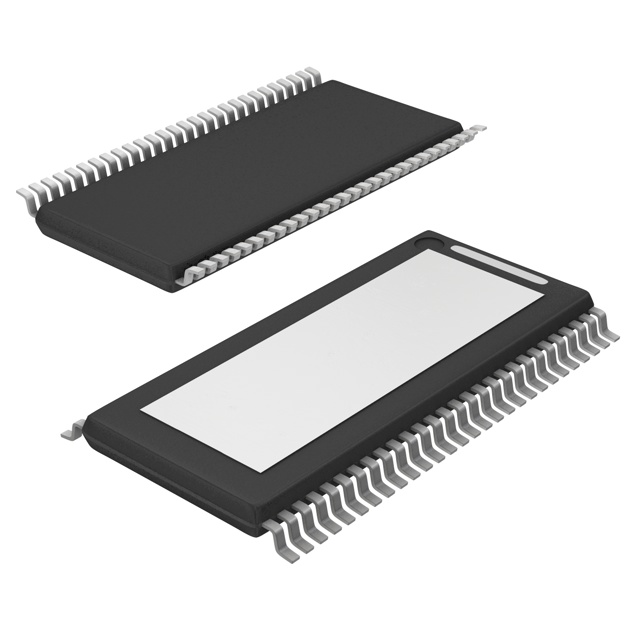

Texas Instruments TMX5700914APGEQQ1	ARM® Cortex®-R4F	Internal	Surface Mount	160 MHz	1 MB	DMA POR PWM WDT	CANbus I2C LINbus MibSPI SCI SPI UART/USART	AEC-Q100	128 K	56-HTSSOP	FLASH	-40 °C	125 °C			3.6 V	1.14 V	Automotive	56-PowerTSSOP	16 Bit	32 Bit	64	64 K		6.1 mm	0.24 in	16x12b 24x12b
Texas Instruments TMX5700432PZQQ1	ARM® Cortex®-R4F	External	Surface Mount	80 MHz	384 KB	POR PWM WDT	CANbus LINbus MibSPI SCI SPI UART/USART	AEC-Q100		100-LQFP (14x14)	FLASH	-40 °C	125 °C	12 b	16	1.32 V	1.14 V	Automotive	100-LQFP	16 Bit	32 Bit	45
Texas Instruments TMX5700914PGEQQ1	ARM® Cortex®-R4F	Internal	Surface Mount	160 MHz	1 MB	DMA POR PWM WDT	CANbus I2C LINbus MibSPI SCI SPI UART/USART	AEC-Q100	128 K	144-LQFP (20x20)	FLASH	-40 °C	125 °C			3.6 V	1.14 V	Automotive	144-LQFP	16 Bit	32 Bit	64	64 K				16x12b 24x12b
Texas Instruments TMX5700714PGEQQ1	ARM® Cortex®-R4F	External	Surface Mount	160 MHz	768 KB	DMA POR PWM WDT	CANbus I2C LINbus MibSPI SCI SPI UART/USART	AEC-Q100	128 K	144-LQFP (20x20)	FLASH	-40 °C	125 °C	12	24	3.6 V	1.14 V	Automotive	144-LQFP			64	64 K	32-Bit Dual-Core
Texas Instruments TMX5701227AZWTQQ1	ARM® Cortex®-R4F	External	Surface Mount	180 MHz	1.25 MB	DMA POR PWM WDT	CANbus EBI/EMI Ethernet FlexRay I2C LINbus MibSPI SPI UART/USART UCI	AEC-Q100	192 K	337-NFBGA (16x16)	FLASH	-40 °C	125 °C	12	24	3.6 V	1.14 V	Automotive	337-LFBGA	16 Bit	32 Bit	101	64 K
Texas Instruments TMX5700432APZQQ1	ARM® Cortex®-R4	External	Surface Mount	80 MHz	384 KB	POR PWM WDT	CANbus LINbus MibSPI SCI SPI UART/USART	AEC-Q100		100-LQFP (14x14)	FLASH	-40 °C	125 °C	12 b	16	1.32 V	1.14 V	Automotive	100-LQFP	16 Bit	32 Bit	45
Texas Instruments TMX5703137BPGEQQ1	ARM® Cortex®-R4F	External	Surface Mount	160 MHz	3 MB	DMA POR PWM WDT	CANbus EBI/EMI Ethernet FlexRay I2C LINbus MibSPI SCI SPI UART/USART	AEC-Q100	256 K	144-LQFP (20x20)	FLASH	-40 °C	125 °C	12	24	3.6 V	1.14 V	Automotive	144-LQFP	16 Bit	32 Bit	58	64 K
