MCH6336 Series

Single P-Channel Power MOSFET, -12V, -3.5A, 70mΩ

Catalog

Single P-Channel Power MOSFET, -12V, -3.5A, 70mΩ

Part	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	FET Type	Power Dissipation (Max)	Mounting Type	Technology	Vgs(th) (Max) @ Id	Operating Temperature	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Rds On (Max) @ Id, Vgs [Max]
ON Semiconductor MCH6336-TL-E	5 A	6.9 nC	P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)	1.4 V	150 °C	1.8 V 4.5 V	10 V	12 V	43 mOhm	6-TSSOP SC-88 SOT-363	660 pF	SC-88FL/MCPH6
ON Semiconductor MCH6337-TL-H	4.5 A	7.3 nC	P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)		150 °C	1.8 V 4.5 V	10 V	20 V	49 mOhm	6-SMD Flat Leads	670 pF	6-MCPH
ON Semiconductor MCH6321-TL-W	4 A		P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)		150 °C	1.8 V 4.5 V	10 V	20 V	83 mOhm	6-SMD Flat Leads	375 pF	6-MCPH	4.6 nC
ON Semiconductor MCH6341-TL-E	5 A		P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)				20 V	30 V	59 mOhm	6-SMD Flat Leads	430 pF	6-MCPH	10 nC	4 V	10 V
ON Semiconductor MCH6331-TL-E	3.5 A		P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)		150 °C		20 V	30 V	98 mOhm	6-SMD Flat Leads	250 pF	6-MCPH	5 nC	4 V	10 V
ON Semiconductor MCH6320-TL-E	3.5 A	5.6 nC	P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)	1.4 V	150 °C	1.8 V 4.5 V	10 V	12 V		6-SMD Flat Leads	405 pF	6-MCPH				70 mOhm
ON Semiconductor MCH6320-TL-W	3.5 A	5.6 nC	P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)	1.4 V	150 °C	1.8 V 4.5 V	10 V	12 V		6-TSSOP SC-88 SOT-363	405 pF	SC-88FL/MCPH6				70 mOhm
ON Semiconductor MCH6344-TL-W	2 A		P-Channel		Surface Mount	MOSFET (Metal Oxide)	2.6 V	150 °C		20 V	30 V	150 mOhm	6-TSSOP SC-88 SOT-363	172 pF	SC-88FL/MCPH6	3.9 nC	4 V	10 V
ON Semiconductor MCH6336-TL-W	5 A	6.9 nC	P-Channel	1.5 W	Surface Mount	MOSFET (Metal Oxide)	1.4 V	150 °C	1.8 V 4.5 V	10 V	12 V	43 mOhm	6-TSSOP SC-88 SOT-363	660 pF	SC-88FL/MCPH6

Catalog

Single P-Channel Power MOSFET, -12V, -3.5A, 70mΩ

Key Features

• High speed switching

• Low Gate Drive Voltage

• ESD Diode - Protected Gate

• Pb-free and RoHS Compliance

• Halogen free compliance : MCH6336-TL-H, MCH6336-TL-W

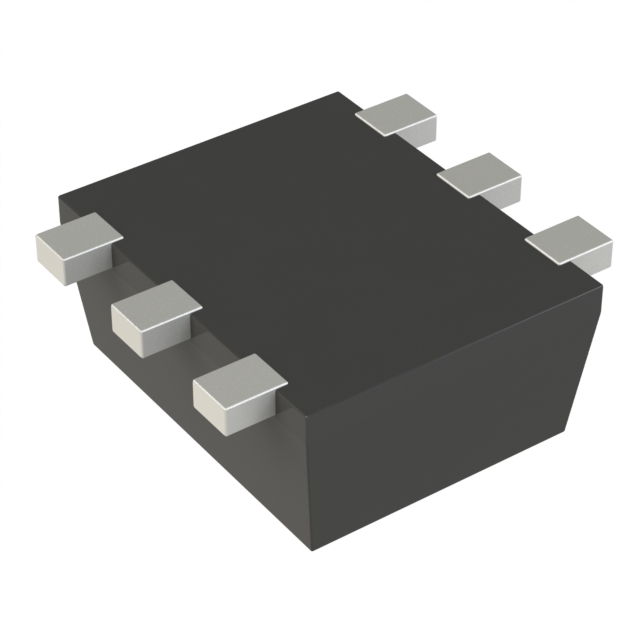

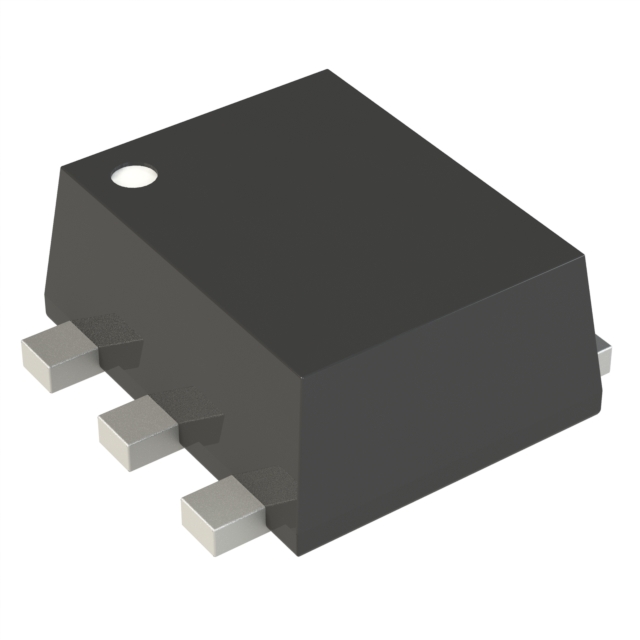

• Ultrasmall package MCPH6(2.0mm x 2.1mm x 0.85mmt)

Description

MCH6321 is a P-Channel Power MOSFET, -20V, -4A, 83mΩ, Single MCPH6 for General-Purpose Switching Device Application.
