103322 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Mounting Type	Contact Shape	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Material	Number of Positions	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Termination	Shrouding	Fastening Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Connector Type	Style
TE Connectivity AMP Connectors 4-103322-0-20	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	40	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 4-103322-0-18	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	36	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 4-103322-0-26	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	52	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable

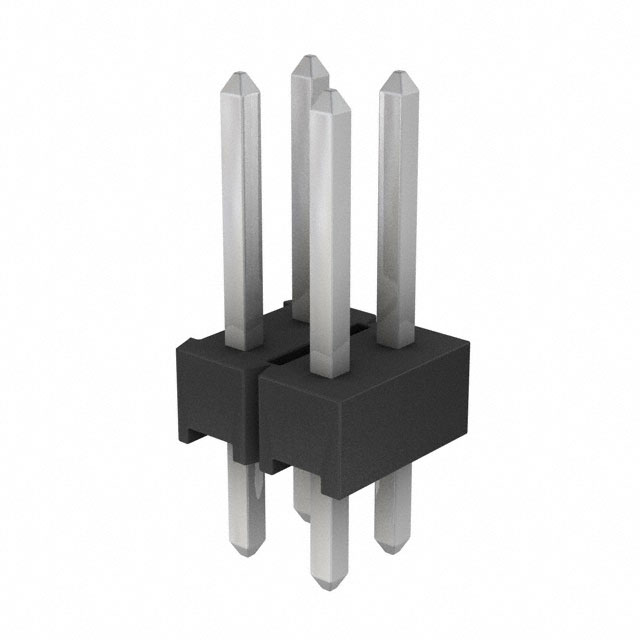

TE Connectivity AMP Connectors 4-103322-0-02	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	4	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 4-103322-0-15	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	30	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 2-103322-5

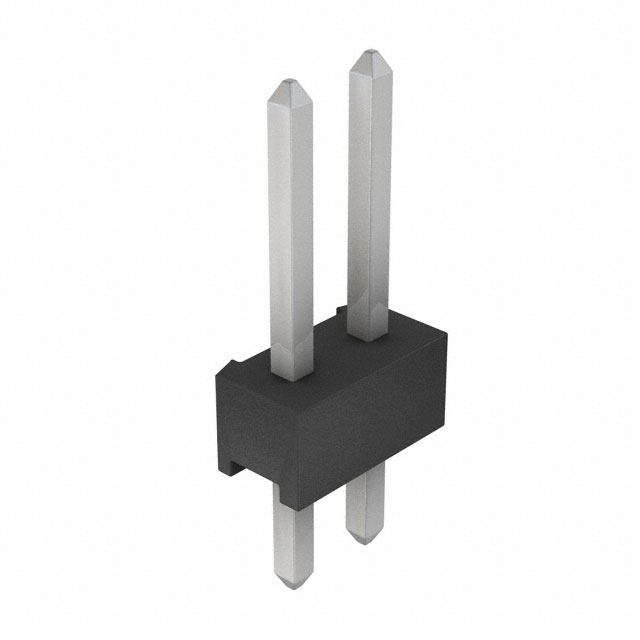

TE Connectivity AMP Connectors 4-103322-0-01	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in			100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	2	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 4-103322-0-07	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	14	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 4-103322-0-23	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	46	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
TE Connectivity AMP Connectors 4-103322-0-08	2.54 µm	100 µin	2	105 ░C	-65 ░C	Male Pin	Through Hole	Square	13.55 mm	0.533 in	0.1 "	2.54 mm	100 çin	2.54 çm	0.1 in	2.54 mm	Tin-Lead	Thermoplastic	16	Tin-Lead	Copper Alloy	3 A	Solder	Unshrouded	Push-Pull	Black	8.08 mm	0.318 in	0.125 in	3.18 mm	All	0.09 in	2.29 mm	UL94 V-0	Header Breakaway	Board to Board Cable
