725-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 36POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Color	Card Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Gender	Number of Rows [custom]	Number of Positions/Bay/Row [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Read Out	Contact Type	Termination Rows	Number of Rows	Number of Positions/Bay/Row

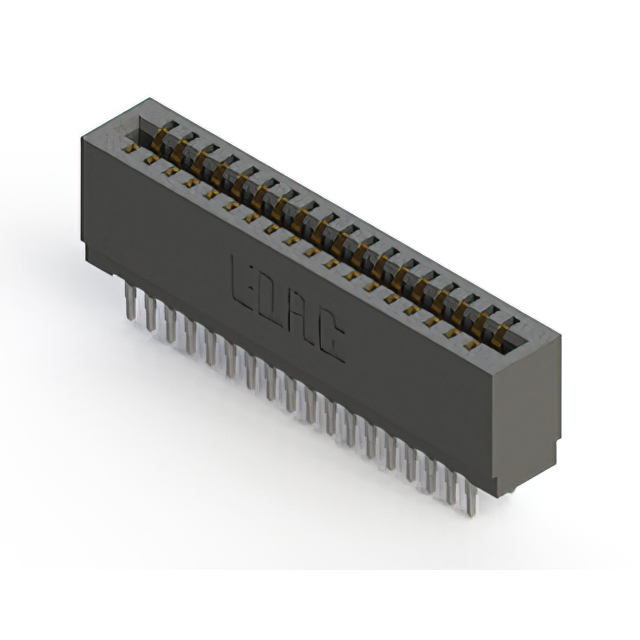

EDAC Inc. 725-036-560-201	2	Polyester Thermoplastic	Through Hole	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female	2	18	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit	Dual	Cantilever Make Before Break
EDAC Inc. 725-036-545-101		Polyester Thermoplastic	Through Hole	Black	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female			0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit Wire Wrap	Single	Cantilever	1	1	36

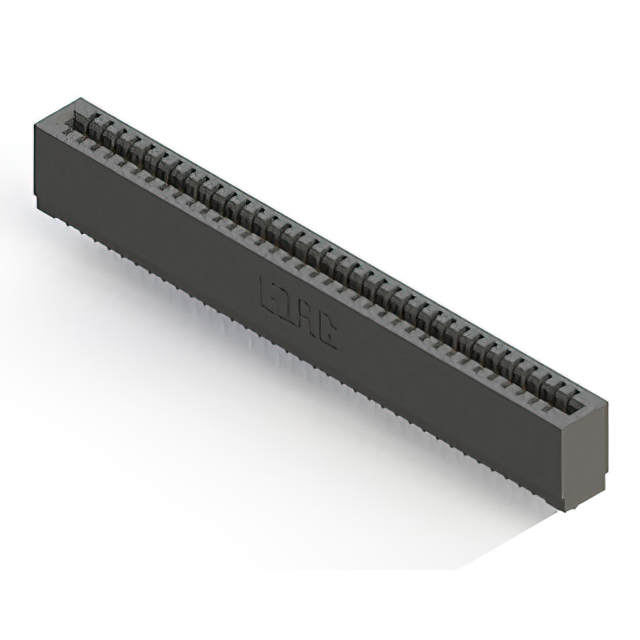

EDAC Inc. 725-036-520-101		Polyester Thermoplastic	Through Hole	Black	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female			0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit	Single	Cantilever	1	1	36
EDAC Inc. 725-036-522-101		Polyester Thermoplastic	Through Hole	Black	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female			0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit	Single	Cantilever	1	1	36

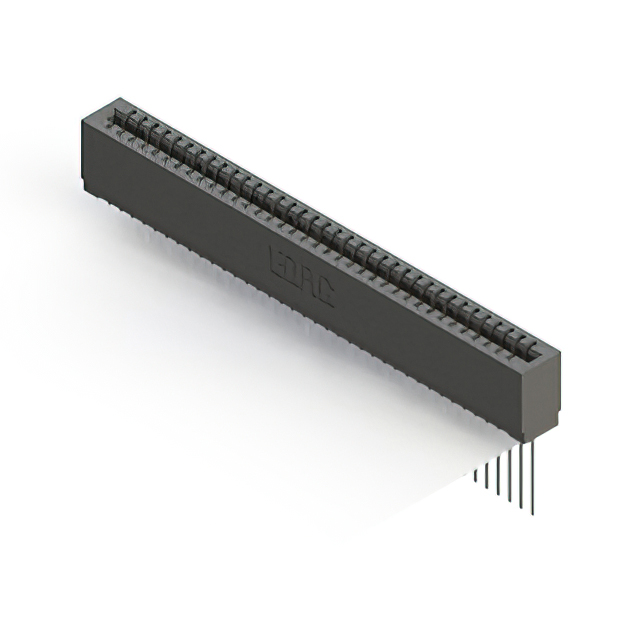

EDAC Inc. 725-036-541-101		Polyester Thermoplastic	Through Hole	Black	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female			0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit Wire Wrap	Single	Cantilever	1	1	36

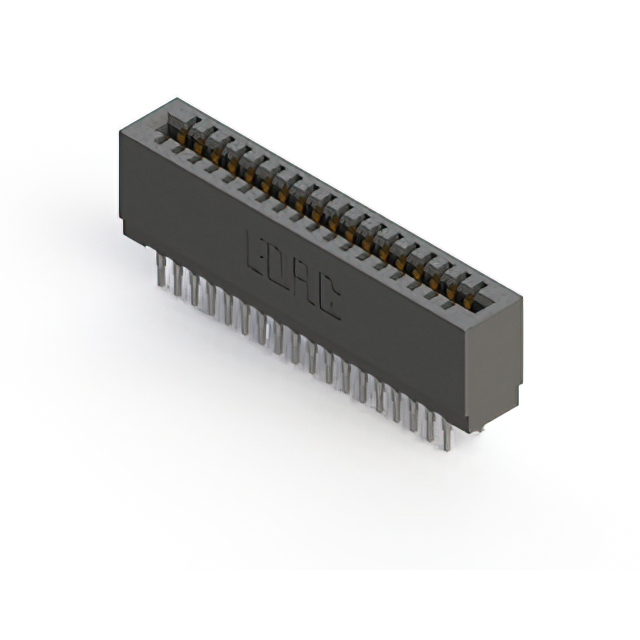

EDAC Inc. 725-036-545-201	2	Polyester Thermoplastic	Through Hole	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female	2	18	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit Wire Wrap	Dual	Cantilever
EDAC Inc. 725-036-540-101		Polyester Thermoplastic	Through Hole	Black	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	36	Female			0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-40 C	105 ░C	Press-Fit Wire Wrap	Single	Cantilever	1	1	36
