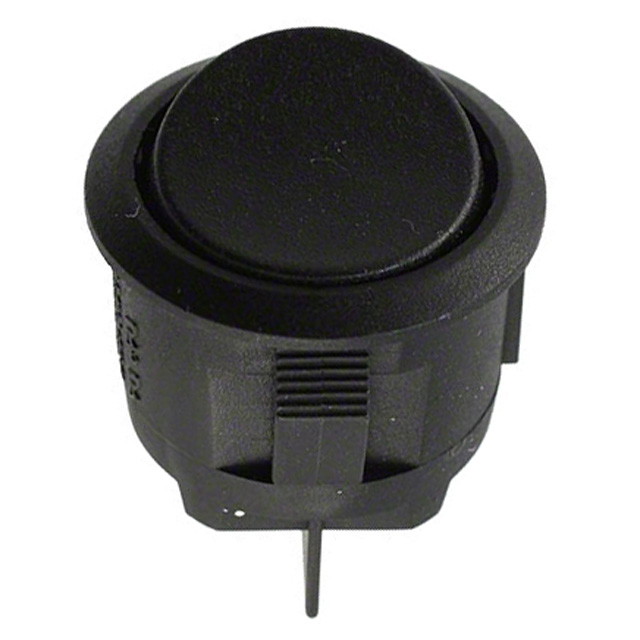

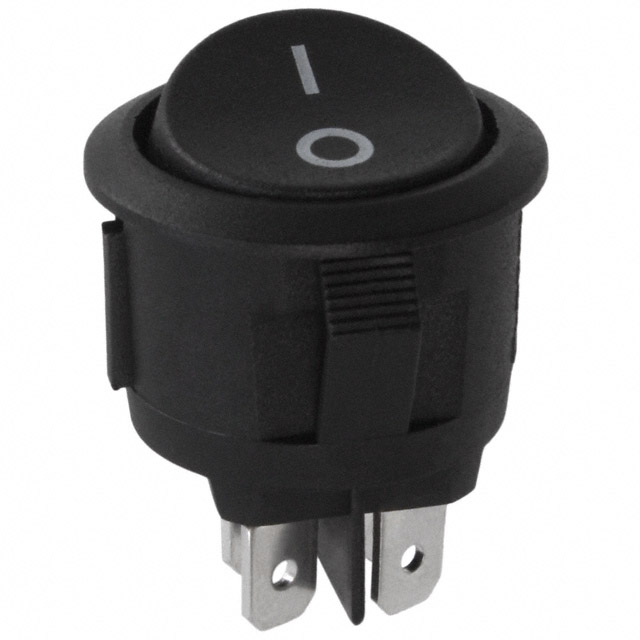

RRA12C1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPST 15A 125V
| Part | Electrical Life | Color - Actuator/Cap | Voltage Rating - AC | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Marking | Mounting Type | Current Rating (Amps) | Termination Style | Circuit | Actuator Type | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | Red | 125 V | cUL UL | -20 ░C | 105 ░C | On-Off | 22 mm | O - | Panel Mount Snap-In | 15 A | Quick Connect | DPST | Round | ||||
E-Switch | 10000 Cycles | Green | 125 V | cUL UL | -20 ░C | 105 ░C | On-Off | 22 mm | No Marking | Panel Mount Snap-In | 15 A | Quick Connect | DPST | Round - Illuminated | Neon | Green | 125 VAC | |
 E-Switch | 10000 Cycles | Black | 125 V | cUL UL | -20 ░C | 105 ░C | On-Off | 22 mm | No Marking | Panel Mount Snap-In | 15 A | Quick Connect | DPST | Round | ||||
 E-Switch | 10000 Cycles | Black | 125 V | cUL UL | -20 ░C | 105 ░C | On-Off | 22 mm | O - | Panel Mount Snap-In | 15 A | Quick Connect | DPST | Round | ||||
E-Switch | 10000 Cycles | Blue | 125 V | cUL UL | -20 ░C | 105 ░C | On-Off | 22 mm | No Marking | Panel Mount Snap-In | 15 A | Quick Connect | DPST | Round - Illuminated | 125 VAC | Blue Neon | ||
E-Switch | 10000 Cycles | Blue | 125 V | cUL UL | -20 ░C | 105 ░C | On-Off | 22 mm | No Marking | Panel Mount Snap-In | 15 A | Quick Connect | DPST | Round - Illuminated | 24 V | Blue Incandescent |
