G-INVEN Series

Catalog

CABLE GLANDS, STRAIN RELIEFS & CORD GRIPS G-INVEN-M12-M67N- PNES-BK

Part	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Material	Color	Type	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]

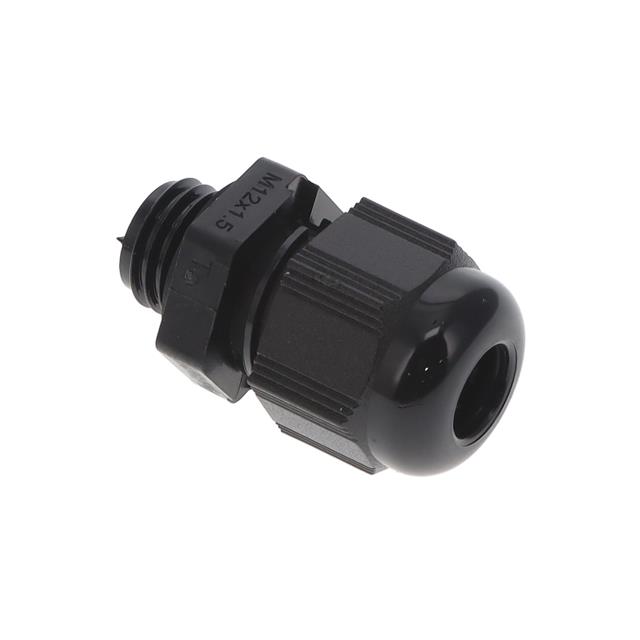

Phoenix Contact 1424535	0.315 "	8 mm	-20 ░C	100 °C	Gasket Seal	M12x1.5	4 mm	0.157 in	0.276 in	7 mm	Polyamide (PA) Nylon	Black	Cable Gland	IP66 IP67

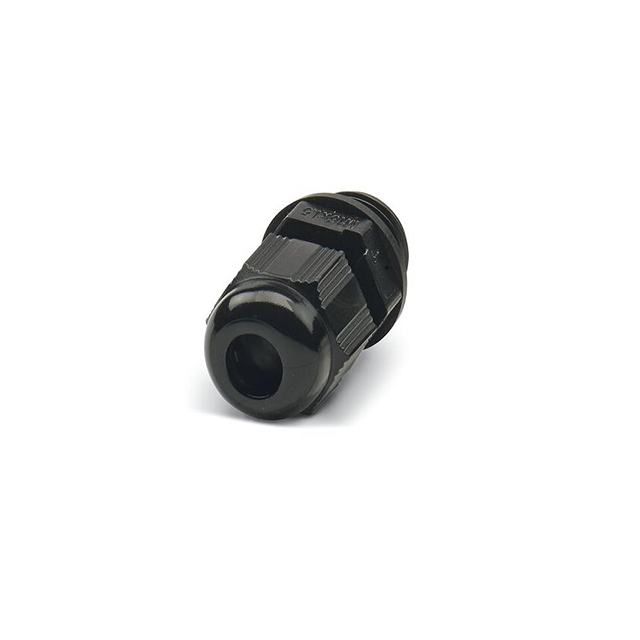

Phoenix Contact 1424536	0.394 in	10 mm	-20 ░C	100 °C	Gasket Seal	M16x1.5	4 mm	0.157 in	0.276 in	7 mm	Polyamide (PA) Nylon	Black	Cable Gland	IP66 IP67

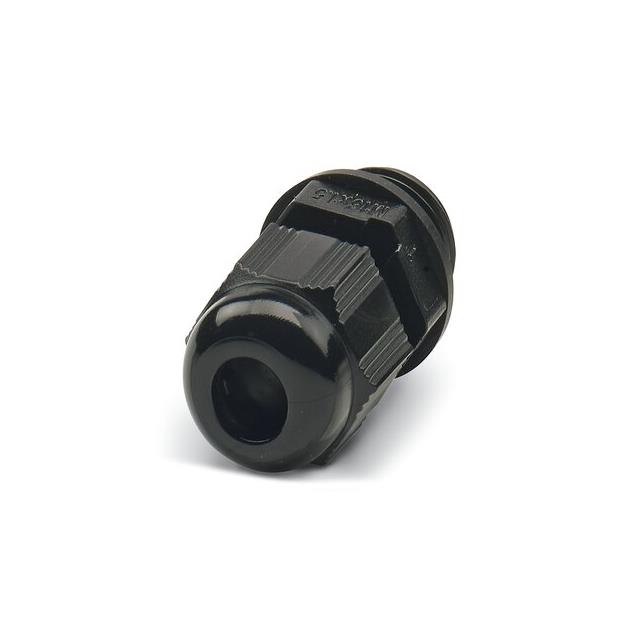

Phoenix Contact 1424537	0.394 in	10 mm	-20 ░C	100 °C	Gasket Seal	M20x1.5				11 mm	Polyamide (PA) Nylon	Black	Cable Gland	IP66 IP67	6 mm	0.236 in	0.433 in

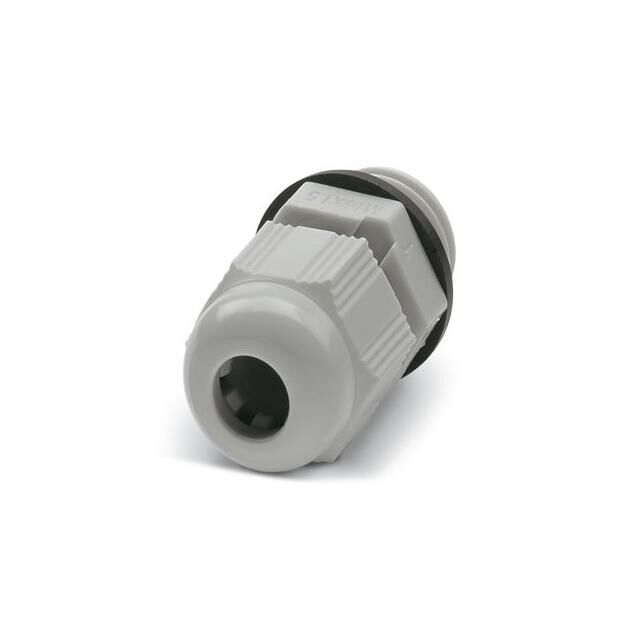

Phoenix Contact 1424533	0.394 in	10 mm	-20 ░C	100 °C	Gasket Seal	M16x1.5	4 mm	0.157 in	0.276 in	7 mm	Polyamide (PA) Nylon	Gray	Cable Gland	IP66 IP67
Phoenix Contact 1424534	0.394 in	10 mm	-20 ░C	100 °C	Gasket Seal	M20x1.5				11 mm	Polyamide (PA) Nylon	Gray	Cable Gland	IP66 IP67	6 mm	0.236 in	0.433 in
Phoenix Contact 1424539	0.197 in	5 mm	-20 ░C	100 °C	Gasket Seal	M16x1.5	4 mm	0.157 in	0.276 in	7 mm	Brass Nickel Plated	Silver	Cable Gland	IP66 IP67

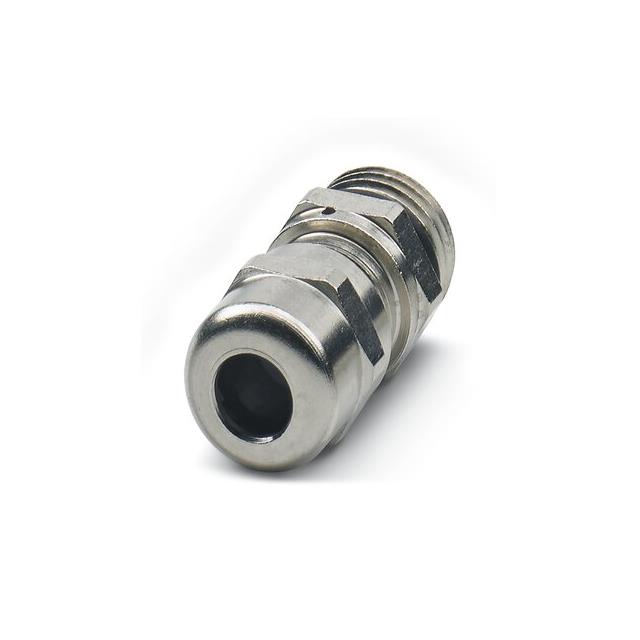

Phoenix Contact 1424538	0.236 in	6 mm	-20 ░C	100 °C	Gasket Seal	M12x1.5	4 mm	0.157 in	0.276 in	7 mm	Brass Nickel Plated	Silver	Cable Gland	IP66 IP67
