TL6330 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Mechanical Life	Switch Travel	Contact Rating @ Voltage	Circuit	Switch Function	Ingress Protection	Termination Style	Outline [y]	Outline [x]	Operating Force	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Illumination	Actuator Orientation

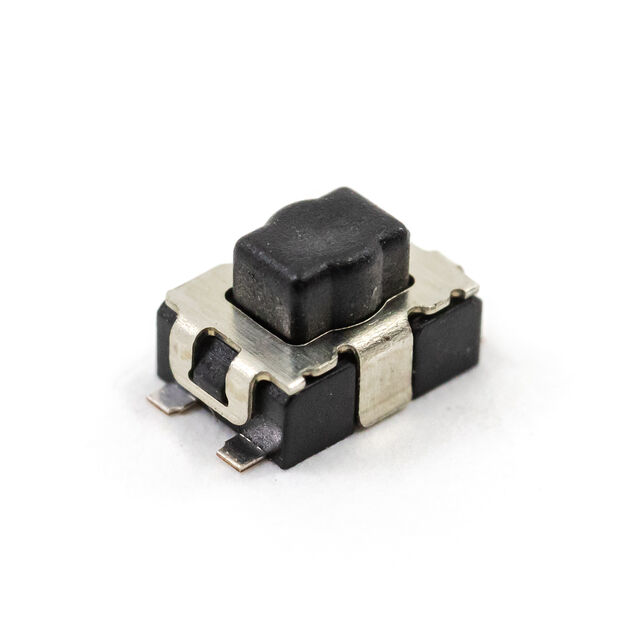

E-Switch TL6330BF200Q	200000 Cycles	0.25 mm	0.05 A 32 VDC	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	SMD (SMT) Tab	2.8 mm	4.6 mm	0.2 kgf	2.5 mm	85 °C	-40 C	Surface Mount	Rectangular Button	Non-Illuminated	Top Actuated

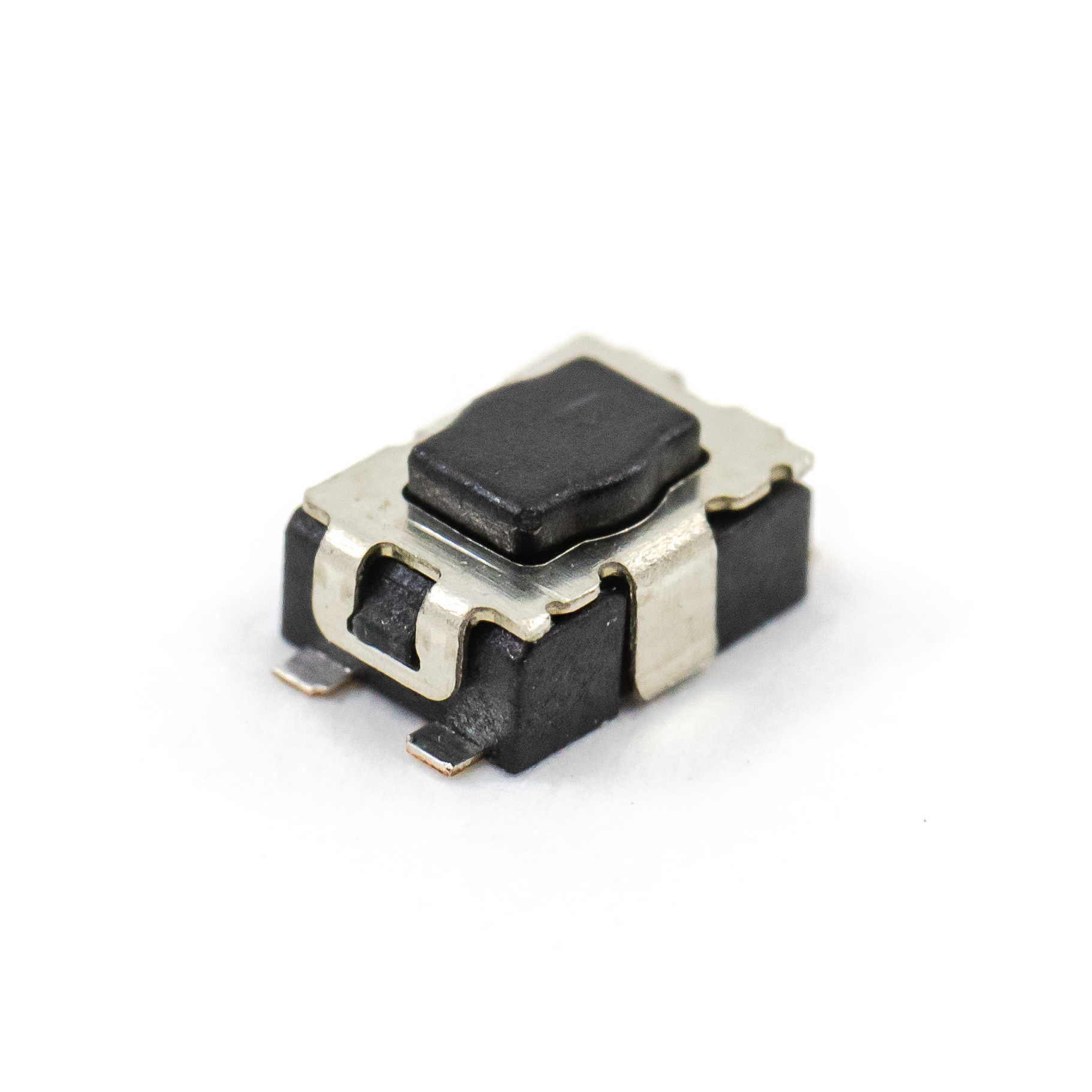

E-Switch TL6330AF400Q	200000 Cycles	0.25 mm	0.05 A 32 VDC	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	SMD (SMT) Tab	2.8 mm	4.6 mm	400 gf	1.9 mm	85 °C	-40 C	Surface Mount	Rectangular Button	Non-Illuminated	Top Actuated

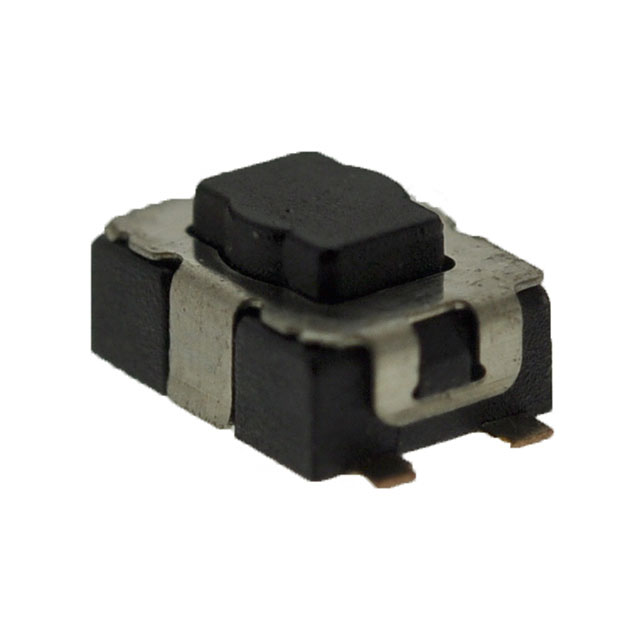

E-Switch TL6330AF200Q	200000 Cycles	0.25 mm	0.05 A 32 VDC	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	SMD (SMT) Tab	2.8 mm	4.6 mm	0.2 kgf	1.9 mm	85 °C	-40 C	Surface Mount	Rectangular Button	Non-Illuminated	Top Actuated

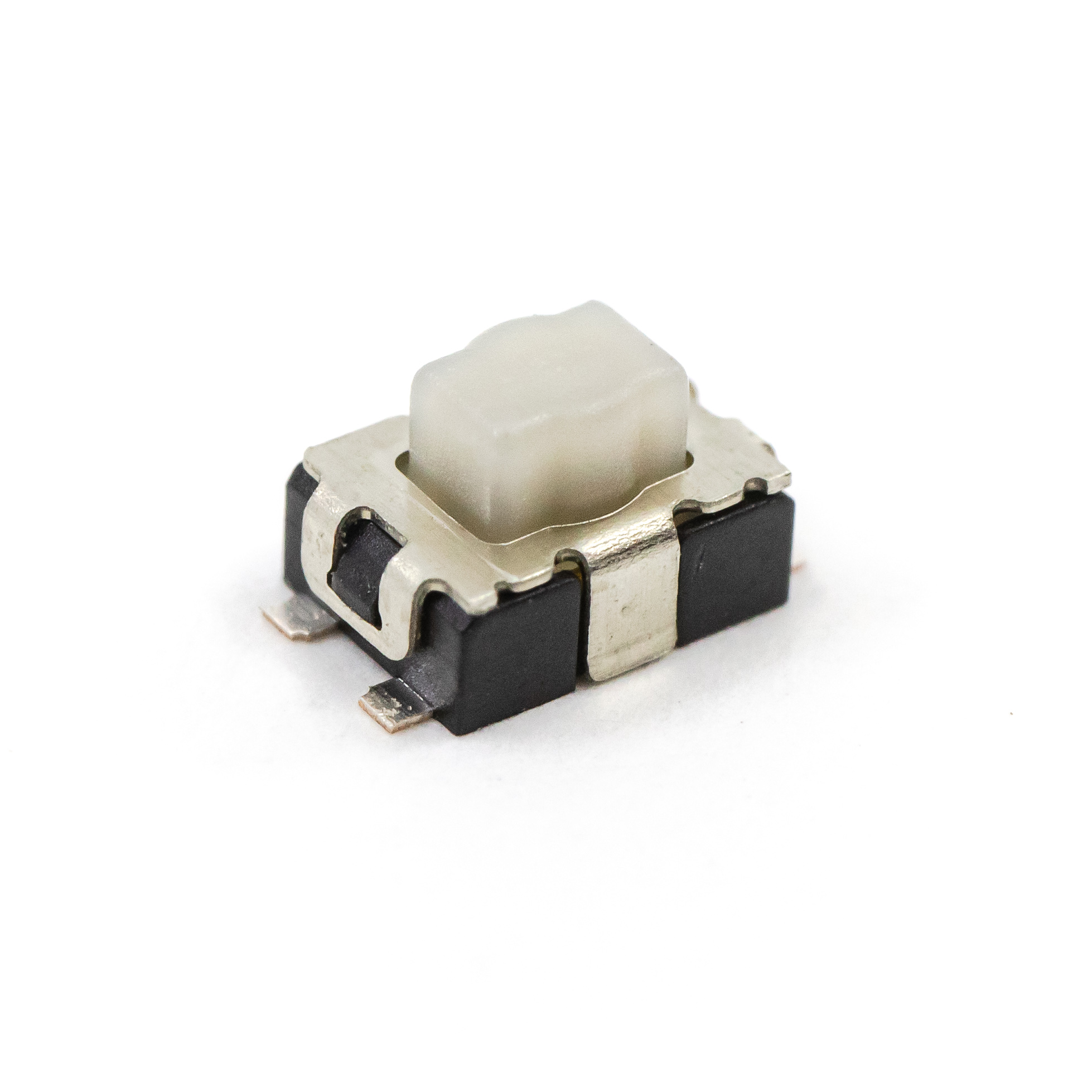

E-Switch TL6330BF300Q	200000 Cycles	0.25 mm	0.05 A 32 VDC	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	SMD (SMT) Tab	2.8 mm	4.6 mm	300 gf	2.5 mm	85 °C	-40 C	Surface Mount	Rectangular Button	Non-Illuminated	Top Actuated
