ATS-01H Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

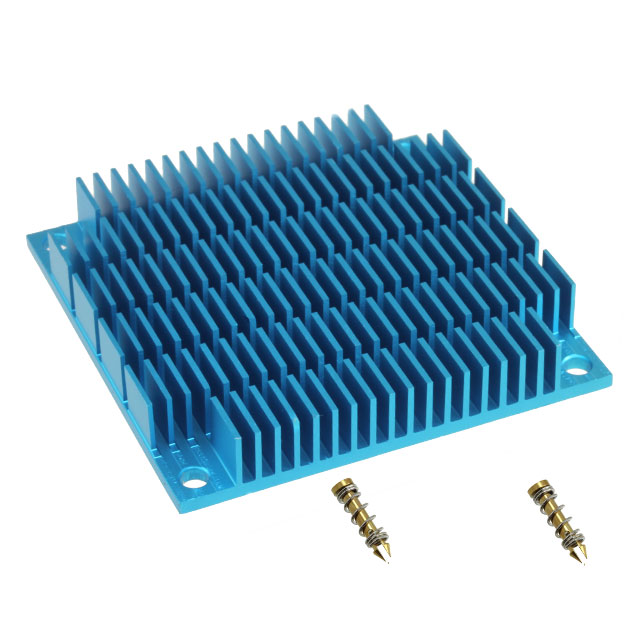

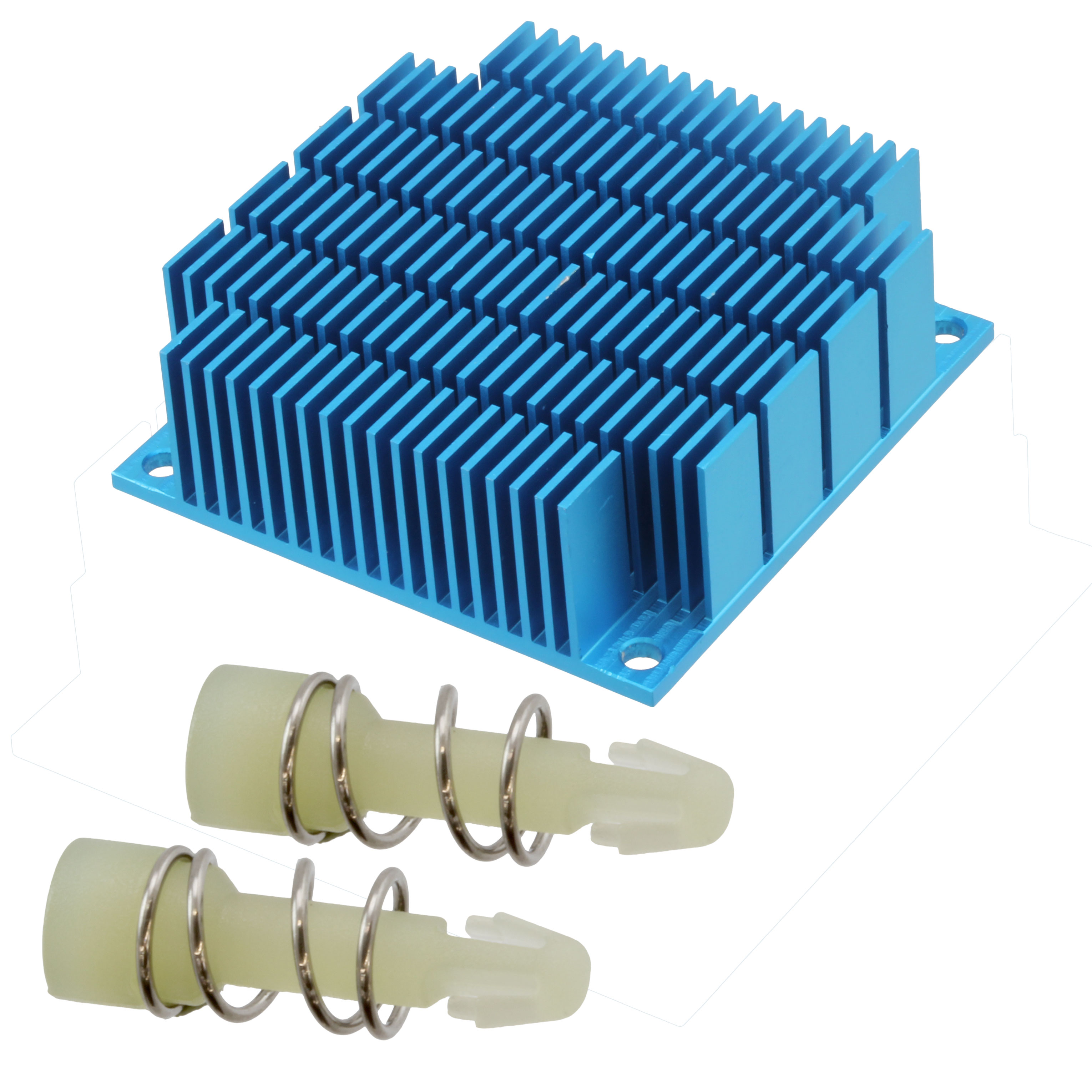

HEATSINK 60X60X20MM XCUT T412

...

Part	Type	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Material Finish	Width [y]	Width [y]	Attachment Method	Package Cooled	Material	Thermal Resistance @ Forced Air Flow	Shape	Fin Height [custom]	Fin Height [custom]	Width	Width	Width [x]	Width [x]	Length	Length	Fin Height	Fin Height	Length	Shape [custom]	Shape [custom]
Advanced Thermal Solutions Inc. ATS-01H-24-C3-R0	Top Mount	2.362 in	60 mm	20 mm	0.79 in	Blue Anodized	2.362 in	60 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	8.43 °C/W	Fins Square
Advanced Thermal Solutions Inc. ATS-01H-197-C1-R0	Top Mount	1.772 in	45 mm			Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	10.86 °C/W	Fins Square	0.394 "	10 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-01H-169-C1-R0	Top Mount					Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	15.66 °C/W	Fins Square	0.394 "	10 mm			30 mm	1.181 in	0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-01H-01-C1-R0	Top Mount					Blue Anodized	1.575 in	40 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	21.9 °C/W	Fins Square	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-01H-111-C3-R1	Top Mount	2.362 in	60 mm			Blue Anodized	2.362 in	60 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	26.82 °C/W	Fins Square									0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-01H-124-C3-R0	Top Mount	1.969 in	50 mm			Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	3.25 °C/W	Fins Square					50 mm	1.969 in			0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-01H-34-C3-R0	Top Mount			22.86 mm	0.9 in	Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	14.4 °C/W						36.83 mm	1.45 in	2.28 in				57.9 mm	Rectangular	Fins
Advanced Thermal Solutions Inc. ATS-01H-194-C2-R0	Top Mount					Blue Anodized	1.575 in	40 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	13.07 °C/W	Fins Square	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-01H-72-C1-R0	Top Mount	1.772 in	45 mm			Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	5.09 °C/W	Fins Square	1.378 in	35 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-01H-50-C2-R0	Top Mount			15 mm	0.59 in	Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	19.03 °C/W	Fins Square					30 mm	1.181 in	0.03 m	1.181 in
