215510 Series

PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray

Manufacturer: Molex

Catalog

PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray

Catalog

PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray

Part	Contact Material	Insulation Color	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating	Pitch - Mating	Features	Number of Rows	Mounting Type	Voltage Rating	Number of Positions Loaded	Contact Type	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Number of Positions	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height
Molex 2155106241	Copper Alloy	Black	Varies by Wire Gauge	22.15 mm	0.872 in	125 °C	-40 °C	Circular	17 mm	0.669 in	Board Guide	1	Through Hole Right Angle	600 V	All	Male Pin	Liquid Crystal Polymer (LCP)	Silver	125 µin	3.18 µm	Push-Pull	Solder	2	Shrouded - 4 Wall	0.604 "	15.34 mm	3.5 mm	0.138 in	Silver	UL94 V-0	Header

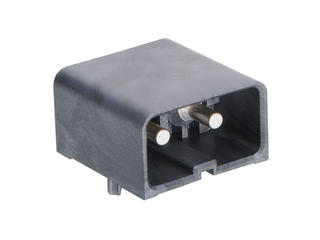

Molex 2155103241	Copper Alloy	Black	Varies by Wire Gauge			125 °C	-40 °C	Circular	12.5 mm	0.492 "	Board Guide	1	Through Hole Right Angle	400 V	All	Male Pin	Liquid Crystal Polymer (LCP)	Silver	125 µin	3.18 µm	Push-Pull	Screw	2	Shrouded - 4 Wall	0.33 in	8.38 mm	3.5 mm	0.138 in	Silver	UL94 V-0	Header	17.45 mm	0.687 "

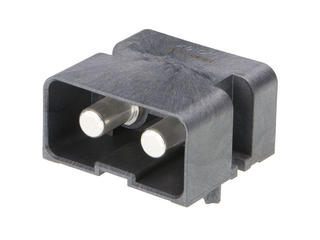

Molex 2155106031	Copper Alloy	Black	Varies by Wire Gauge	22.15 mm	0.872 in	125 °C	-40 °C	Circular	17 mm	0.669 in	Board Guide	1	Through Hole Right Angle	600 V	All	Male Pin	Liquid Crystal Polymer (LCP)	Silver	125 µin	3.18 µm	Push-Pull	Screw	2	Shrouded - 4 Wall			1.35 mm	0.053 in	Silver	UL94 V-0	Header
