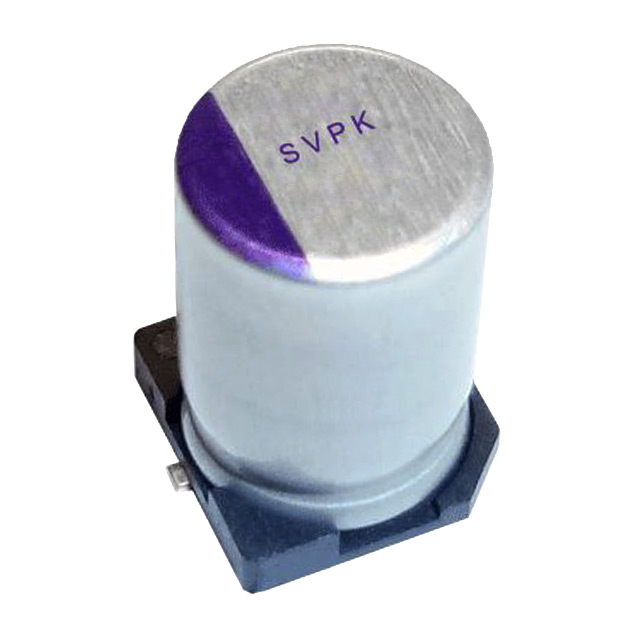

50SVPK Series

Catalog

CAP ALUM POLY 10UF 20% 50V SMD

Part	Mounting Type	Capacitance	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max]	Applications	Package / Case	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]
Panasonic Electronic Components 50SVPK10M	Surface Mount	10 µF	1000 Hrs	50 VDC	6 mm	0.236 "	General Purpose	Radial Can - SMD	0.209 in 5.3 mm	0.209 in 5.3 mm	0.197 in	5 mm	27.5 mA	100 kHz 550 mA	80 mOhm	Polymer	20 %	-55 C	125 °C
Panasonic Electronic Components 50SVPK22M	Surface Mount	22 µF	1000 Hrs	50 VDC	6 mm	0.236 "	General Purpose	Radial Can - SMD	6.6 mm	6.6 mm	0.248 "	6.3 mm	41 mA	820 mA	35 mOhms	Polymer	20 %	-55 C	125 °C	0.26 in	0.26 in
Panasonic Electronic Components 50SVPK68M	Surface Mount	68 µF	1000 Hrs	50 VDC	12 mm	0.472 in	General Purpose	Radial Can - SMD	8.3 mm	8.3 mm	0.315 in	8 mm	60 mA	1.2 A	25 mOhm	Polymer	20 %	-55 C	125 °C	0.327 in	0.327 in
Panasonic Electronic Components 50SVPK33M	Surface Mount	33 ÁF	1000 Hrs	50 VDC		0.276 in	General Purpose	Radial Can - SMD	8.3 mm	8.3 mm	0.315 in	8 mm	42.5 mA	850 mA	35 mOhms	Polymer	20 %	-55 C	125 °C	0.327 in	0.327 in	7 mm
