PM5-B5G28 Series
Manufacturer: Bivar Inc.
Beta
⌘K

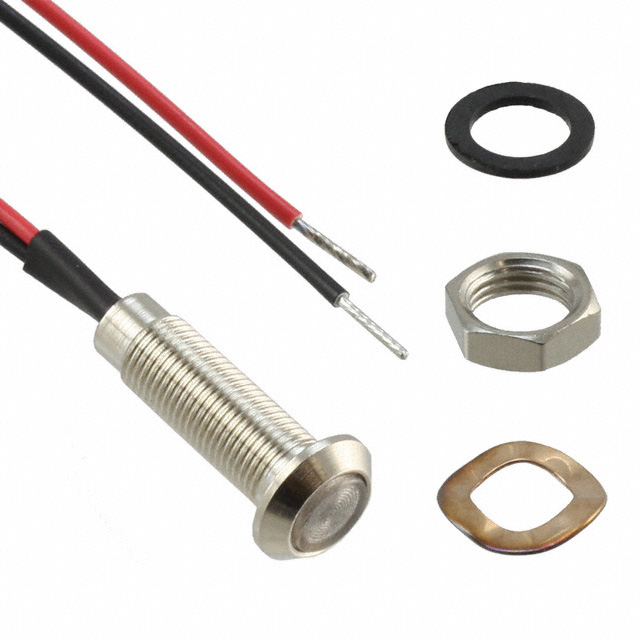

PANEL MOUNT ASSEM 5MM GREEN
| Part | Lamp Color | Termination Style | Panel Cutout Dimensions [custom] | Panel Cutout Dimensions [custom] | Ratings | Panel Cutout Shape | Current | Viewing Angle | Millicandela Rating | Lens Style | Lens Size [diameter] | Voltage [Min] | Voltage [Max] | Ingress Protection | Lens Color | Type | Wavelength - Peak | Lens Transparency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | Green | Wire Leads - 5.9" (150.00mm) | 0.2 in | 5.08 mm | DC | Round | 20 mA | 120 ° | 576 mcd | Round with Flat Top | 5.1 mm Dia | 24 V | 28 V | IP67 | Green | LED | 525 nm | Fresnel |
