7915-26 Series
Manufacturer: Oupiin
Beta
⌘K

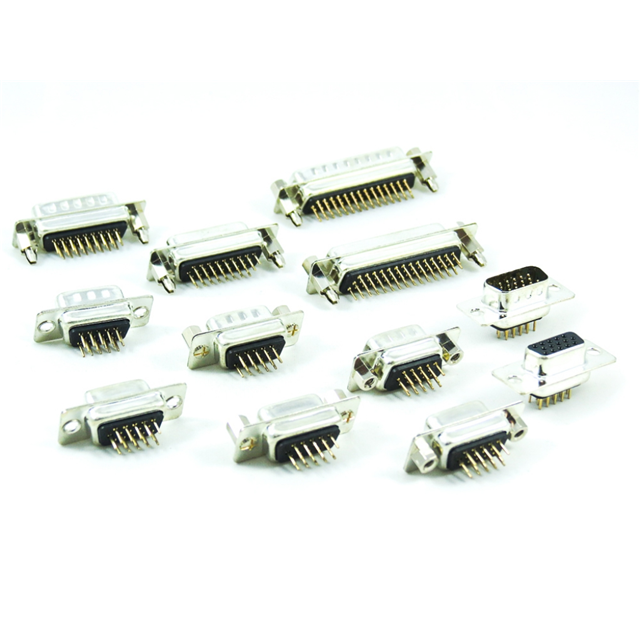

CONN D-SUB HD RCPT 26P VERT SLDR
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Color | Dielectric Material | Number of Positions | Finish | Shell Material | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Contact Finish | Material Flammability Rating | Connector Type | Connector Style | Current Rating | Contact Type | Number of Rows | Shell Size | Connector Layout | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | -55 °C | 105 °C | Brass | Black | Polybutylene Terephthalate (PBT) | 26 | Tin Plated | Steel | 0 | Flash | Flash | Gold | UL94 V-0 | Female Sockets Receptacle | D-Sub High Density | 1 A | Signal | 3 | 2 | A DA High Density | Through Hole | Solder |
