TPS62110-HT Series

High Temperature 17-V, 1.5-A, Synchronous Step-Down Converter

Catalog

High Temperature 17-V, 1.5-A, Synchronous Step-Down Converter

Part	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Main Purpose	Regulator Topology	Frequency - Switching	Current - Output	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Function	Number of Outputs	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Output Type	Voltage - Output (Min/Fixed)	Mounting Type	Supplier Device Package	Package / Case	Voltage - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Output	Package / Case

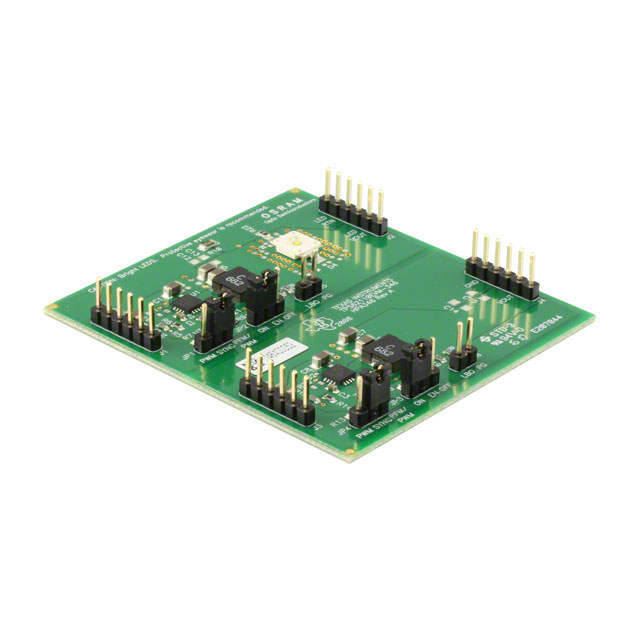

Texas Instruments TPS62110EVM-346	2	Non-Isolated	Board(s)	Fully Populated	DC/DC Step Down	Buck	1 MHz	1.5 A 500 mA	TPS62110	17 V	5 V
Texas Instruments TPS62110RSATG4							1 MHz	1.5 A				Step-Down	1	Positive	17 V	-40 °C	125 ¯C	Buck	Adjustable	1.2 V	Surface Mount	16-QFN (4x4)	16-VQFN Exposed Pad	16 V	3.1 V

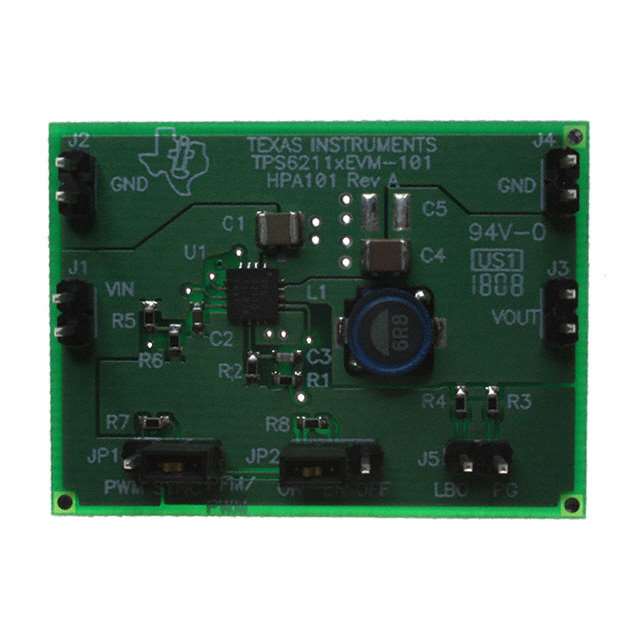

Texas Instruments TPS62110EVM-101	1	Non-Isolated	Board(s)	Fully Populated	DC/DC Step Down	Buck		1.5 A	TPS62110	17 V	3.6 V															3.3 V
Texas Instruments TPS62110RSARG4							1 MHz	1.5 A				Step-Down	1	Positive	17 V	-40 °C	125 ¯C	Buck	Adjustable	1.2 V	Surface Mount	16-QFN (4x4)	16-VQFN Exposed Pad	16 V	3.1 V
Texas Instruments TPS62110HPWP							1 MHz	1.5 A				Step-Down	1	Positive	17 V			Buck	Adjustable	1.153 V	Surface Mount	16-HTSSOP	16-PowerTSSOP	16 V	3.1 V		0.173 in 4.4 mm Width
Texas Instruments TPS62110RSAT							1 MHz	1.5 A				Step-Down	1	Positive	17 V	-40 °C	125 ¯C	Buck	Adjustable	1.2 V	Surface Mount	16-QFN (4x4)	16-VQFN Exposed Pad	16 V	3.1 V

Catalog

High Temperature 17-V, 1.5-A, Synchronous Step-Down Converter

Key Features

• High-Efficiency Synchronous Step-Down ConverterWith up to 95% Efficiency3.1-V to 17-V Operating Input Voltage RangeAdjustable Output Voltage Range From1.2 V to 16 VSynchronizable to External Clock Signal up to 1.4 MHzUp to 1.5-A Output Peak Current32-µA Quiescent Current (Typ)(1)High Efficiency Over a Wide Load CurrentRange Due to PFM/PWM Operation Mode100% Maximum Duty Cycle for Lowest DropoutOvertemperature and Overcurrent ProtectedAvailable in 16-Pin (PWP) QFP PackageAPPLICATIONSDown-Hole DrillingHigh Temperature EnvironmentsAPPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extreme (–55°C/175°C)Temperature Range(2)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityTexas Instruments high temperature products utilize highlyoptimized silicon (die) solutions with design and processenhancements to maximize performance over extended temperatures.(1)Reduce life time may happen when 1.5-A limit is used for long time. Please refer to the EM calculations graph.(2) Custom temperature ranges availableHigh-Efficiency Synchronous Step-Down ConverterWith up to 95% Efficiency3.1-V to 17-V Operating Input Voltage RangeAdjustable Output Voltage Range From1.2 V to 16 VSynchronizable to External Clock Signal up to 1.4 MHzUp to 1.5-A Output Peak Current32-µA Quiescent Current (Typ)(1)High Efficiency Over a Wide Load CurrentRange Due to PFM/PWM Operation Mode100% Maximum Duty Cycle for Lowest DropoutOvertemperature and Overcurrent ProtectedAvailable in 16-Pin (PWP) QFP PackageAPPLICATIONSDown-Hole DrillingHigh Temperature EnvironmentsAPPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extreme (–55°C/175°C)Temperature Range(2)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityTexas Instruments high temperature products utilize highlyoptimized silicon (die) solutions with design and processenhancements to maximize performance over extended temperatures.(1)Reduce life time may happen when 1.5-A limit is used for long time. Please refer to the EM calculations graph.(2) Custom temperature ranges available

Description

The TPS62110 is a low-noise synchronous step-down dc-dc converter that is ideally suited for systems powered from a 2-cell Li-ion battery or from a 12-V or 15-V rail. The TPS62110 is a synchronous PWM converter with integrated N-channel and P-channel power MOSFET switches. Synchronous rectification is used to increase efficiency and to reduce external component count. To achieve highest efficiency over a wide load current range, the converter enters a power-saving, pulse-frequency modulation (PFM) mode at light load currents. Operating frequency is typically 1 MHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 0.8 MHz to 1.4 MHz. For low noise operation, the converter can be operated in PWM-only mode. In the shutdown mode, the current consumption is reduced to less than 2 µA. The TPS62110 is available in the 16-pin (PWP) QFP package, and operates over a free-air temperature range of –55°C to 175°C. The TPS62110 is a low-noise synchronous step-down dc-dc converter that is ideally suited for systems powered from a 2-cell Li-ion battery or from a 12-V or 15-V rail. The TPS62110 is a synchronous PWM converter with integrated N-channel and P-channel power MOSFET switches. Synchronous rectification is used to increase efficiency and to reduce external component count. To achieve highest efficiency over a wide load current range, the converter enters a power-saving, pulse-frequency modulation (PFM) mode at light load currents. Operating frequency is typically 1 MHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 0.8 MHz to 1.4 MHz. For low noise operation, the converter can be operated in PWM-only mode. In the shutdown mode, the current consumption is reduced to less than 2 µA. The TPS62110 is available in the 16-pin (PWP) QFP package, and operates over a free-air temperature range of –55°C to 175°C.
