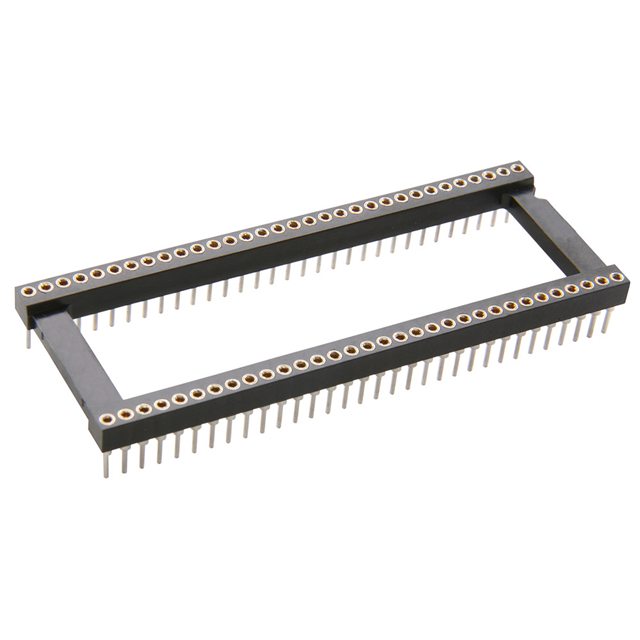

D8864 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN IC DIP SOCKET 64POS GOLD
| Part | Current Rating (Amps) | Contact Resistance | Termination Post Length [x] | Termination Post Length [x] | Material Flammability Rating | Type | Type | Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Post [custom] | Contact Finish - Mating | Termination | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Material - Mating | Pitch - Post | Pitch - Post | Housing Material | Pitch - Mating | Pitch - Mating | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [y] | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 1 A | 10 mOhm | 3.2 mm | 0.126 in | UL94 V-0 | DIP | 19.05 mm | 0.75 in | Open Frame | -55 C | 125 °C | Brass | Gold | Solder | Tin | Flash | Beryllium Copper | 0.07 in | 1.78 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.07 in | 1.78 mm | 2 | 64 | 32 | Through Hole | 5 µm | 196.9 µin |
