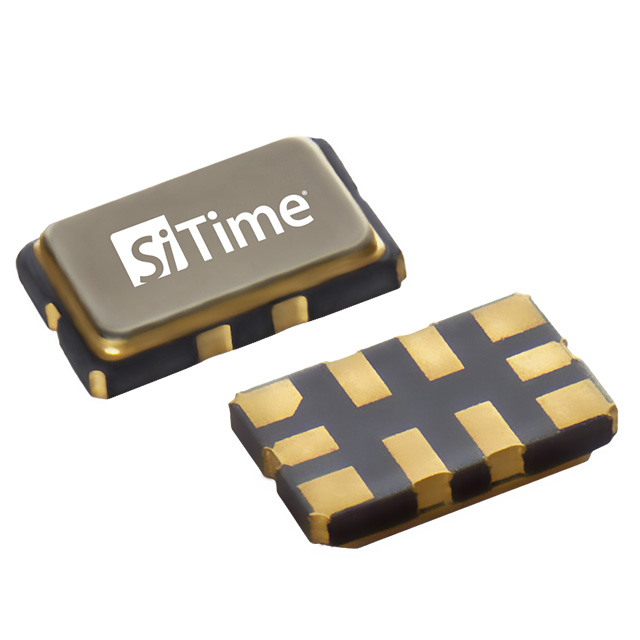

SIT5156 Series

Manufacturer: SiTime

Catalog

Catalog

MEMS OSC VCTCXO 10.949297MHZ

...

Part	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Frequency Stability	Mounting Type	Supplier Device Package	Type	Absolute Pull Range (APR)	Frequency	Base Resonator	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Output	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Current - Supply (Disable) (Max) [Max]	Function
SiTime SIT5156AECFA-30VT-10.949297	3 V	-40 C	105 ░C	1 ppm	Surface Mount	10-CQFN (5x3.2)	VCTCXO	6.25 ppm	10.949297 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	Clipped Sine Wave	10-SMD No Lead	1.06 mm	0.042 in	57 mA
SiTime SIT5156AICFD-33E0-10.949297	3.3 V	-40 C	85 °C	2.5 ppm	Surface Mount	10-CQFN (5x3.2)	TCXO		10.949297 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	Clipped Sine Wave	10-SMD No Lead	1.06 mm	0.042 in		51 mA	Enable/Disable
SiTime SIT5156AI-FK-33VT-16.369000	3.3 V	-40 C	85 °C	500 ppb	Surface Mount	10-CQFN (5x3.2)	VCTCXO	6.25 ppm	16.369 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	LVCMOS	10-SMD No Lead	1.06 mm	0.042 in	57 mA
SiTime SIT5156AICFA-28VT-16.367667	2.8 V	-40 C	85 °C	1 ppm	Surface Mount	10-CQFN (5x3.2)	VCTCXO	6.25 ppm	16.367667 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	Clipped Sine Wave	10-SMD No Lead	1.06 mm	0.042 in	57 mA
SiTime SIT5156AECFD-28E0-16.369000	2.8 V	-40 C	105 ░C	2.5 ppm	Surface Mount	10-CQFN (5x3.2)	TCXO		16.369 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	Clipped Sine Wave	10-SMD No Lead	1.06 mm	0.042 in		51 mA	Enable/Disable
SiTime SIT5156AICFD-33N0-50.000000	3.3 V	-40 C	85 °C	2.5 ppm	Surface Mount	10-CQFN (5x3.2)	TCXO		50 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	Clipped Sine Wave	10-SMD No Lead	1.06 mm	0.042 in
SiTime SIT5156AECFA-30VT-26.000000	3 V	-40 C	105 ░C	1 ppm	Surface Mount	10-CQFN (5x3.2)	VCTCXO	6.25 ppm	26 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	Clipped Sine Wave	10-SMD No Lead	1.06 mm	0.042 in	57 mA
SiTime SIT5156AI-FK-33VT-12.000000	3.3 V	-40 C	85 °C	500 ppb	Surface Mount	10-CQFN (5x3.2)	VCTCXO	6.25 ppm	12 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	LVCMOS	10-SMD No Lead	1.06 mm	0.042 in	57 mA
SiTime SIT5156AE-FD-25E0-38.400000	2.5 V	-40 C	105 ░C	2.5 ppm	Surface Mount	10-CQFN (5x3.2)	TCXO		38.4 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	LVCMOS	10-SMD No Lead	1.06 mm	0.042 in		51 mA	Enable/Disable
SiTime SIT5156AI-FA-33N0-19.440000	3.3 V	-40 C	85 °C	1 ppm	Surface Mount	10-CQFN (5x3.2)	TCXO		19.44 MHz	MEMS	3.2 mm	0.126 in	5 mm	0.197 in	LVCMOS	10-SMD No Lead	1.06 mm	0.042 in
