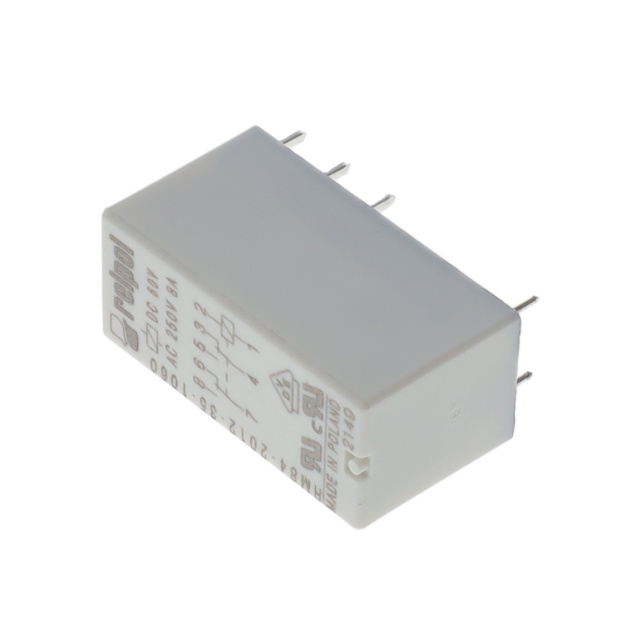

RM84-2012 Series
Manufacturer: Altech Corporation
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 12V
| Part | Coil Resistance | Seal Rating | Coil Current | Release Time | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Contact Form | Operate Time | Relay Type | Termination Style | Mounting Type | Coil Type | Load - Max Switching (Apparent Power) | Contact Material | Switching Voltage AC (Max) | Coil Voltage | Contact Rating (Current) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 360 Ohms | Flux Protection Sealed | 33.3 mA | 3 ms | -40 °C | 85 °C | 8.4 VAC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 12 VAC | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 5.7 kOhms | Flux Protection Sealed | 8.4 mA | 3 ms | -40 °C | 85 °C | 33.6 VAC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 48 V | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 3.14 kOhms | Flux Protection Sealed | 11.5 mA | 3 ms | -40 °C | 85 °C | 25.2 VDC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 36 VAC | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 60 Ohms | Flux Protection Sealed | 83.3 mA | 3 ms | -40 °C | 85 °C | 3.5 VDC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 5 V | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 90 Ohms | Flux Protection Sealed | 66.7 mA | 3 ms | -40 °C | 85 °C | 4.2 VAC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 6 VAC | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 35.5 kOhms | Flux Protection Sealed | 6.2 mA | 3 ms | -40 °C | 70 °C | 176 VAC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 220 V | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 400 Ohms | Flux Protection Sealed | 0.06 A | 3 ms | -40 °C | 70 °C | 19.2 V | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 24 VDC | 8 A | CCC CE CSA UR VDE |
 Altech Corporation | 7500 Ohms | Flux Protection Sealed | 8 mA | 3 ms | -40 °C | 85 °C | 42 VDC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 60 VDC | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 25.2 kOhms | Flux Protection Sealed | 4.4 mA | 3 ms | -40 °C | 85 °C | 77 VAC | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 110 V | 8 A | CCC CE CSA UR VDE |
Altech Corporation | 8.9 kOhms | Flux Protection Sealed | 12.4 mA | 3 ms | -40 °C | 70 °C | 88 V | 2 2 Form C C DPDT Form | 7 ms | General Purpose | PC Pin | Through Hole | Non Latching | 3520 VA | Silver Nickel (AgNi) | 440 VAC | 110 V | 8 A | CCC CE CSA UR VDE |
